| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_101T10_9000003068_20752cztM0_level2.evt | modeM0/AS1A05_101T10_9000003068_20752cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,335,441,600 | 297,403,200 |
| Size | 1.2 GB | 283.6 MB |
| Events in quadrant A | 8,134,513 | 2,000,885 |
| Events in quadrant B | 8,394,728 | 2,001,089 |
| Events in quadrant C | 9,872,178 | 1,919,184 |
| Events in quadrant D | 12,850,034 | 1,870,231 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 360 | 0 |
| B | 0 | 360 | 0 |
| C | 0 | 360 | 0 |
| D | 0 | 360 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36269 | 4 |
| B | 0 | 36841 | 4 |
| C | 0 | 41175 | 4 |
| D | 0 | 50477 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17651 | 70 | 0.396578% |
| B | 17651 | 120 | 0.679848% |
| C | 17651 | 570 | 3.229279% |
| D | 17651 | 1061 | 6.010991% |

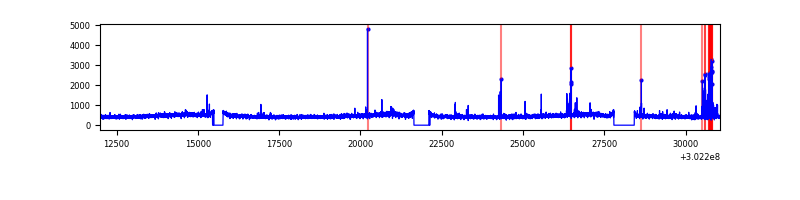

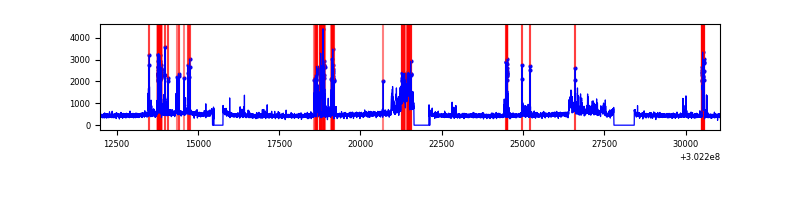

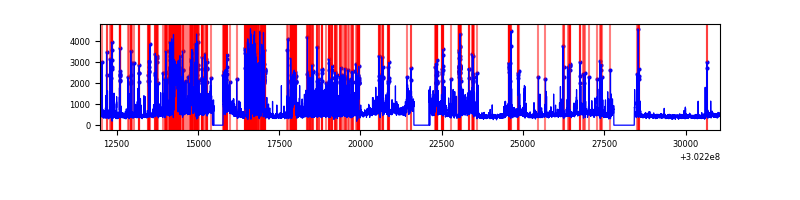

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19071 | 17656 | 22 | 22 | 0.12% | 0.12% |  |
| B | 19071 | 17656 | 22 | 22 | 0.12% | 0.12% |  |
| C | 19071 | 17656 | 212 | 212 | 1.11% | 1.20% |  |
| D | 19071 | 17656 | 836 | 836 | 4.38% | 4.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 194319 | 463.61 | 2066 | 2022 | 414.8 |
| A | 0 | 226 | 17802 | 38.04 | 2066 | 2022 | 414.8 |
| A | 3 | 137 | 17317 | 36.87 | 2066 | 2022 | 414.8 |
| B | 7 | 220 | 111936 | 285.48 | 2055 | 2002 | 385.1 |
| B | 0 | 197 | 51042 | 127.35 | 2055 | 2002 | 385.1 |
| B | 3 | 64 | 50398 | 125.68 | 2055 | 2002 | 385.1 |
| C | 9 | 54 | 1743092 | 3769.86 | 1982 | 1990 | 461.8 |
| C | 14 | 238 | 309389 | 665.59 | 1982 | 1990 | 461.8 |
| C | 3 | 233 | 72469 | 152.6 | 1982 | 1990 | 461.8 |
| D | 5 | 222 | 3122114 | 6572.98 | 1966 | 1912 | 474.7 |
| D | 1 | 52 | 1426462 | 3000.94 | 1966 | 1912 | 474.7 |
| D | 1 | 20 | 531615 | 1115.87 | 1966 | 1912 | 474.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

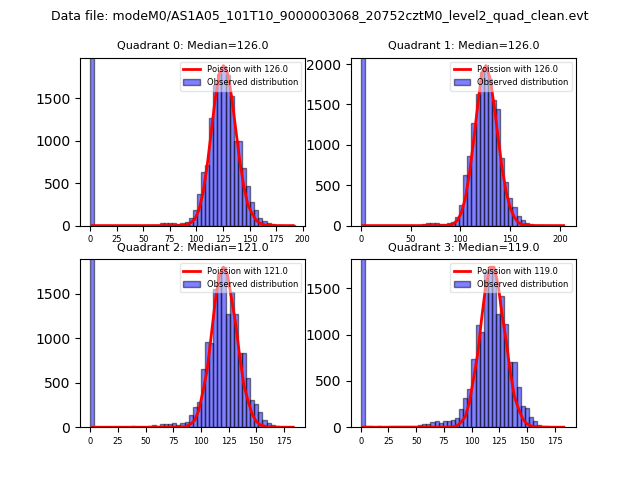

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

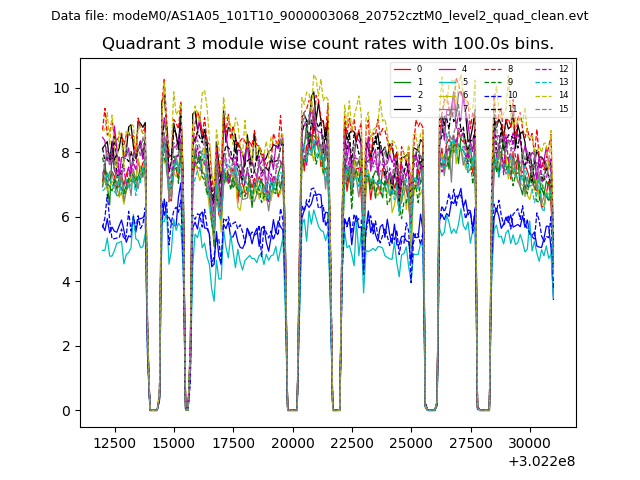

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

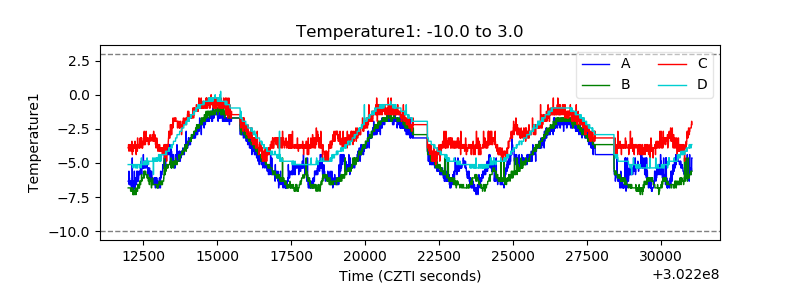

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

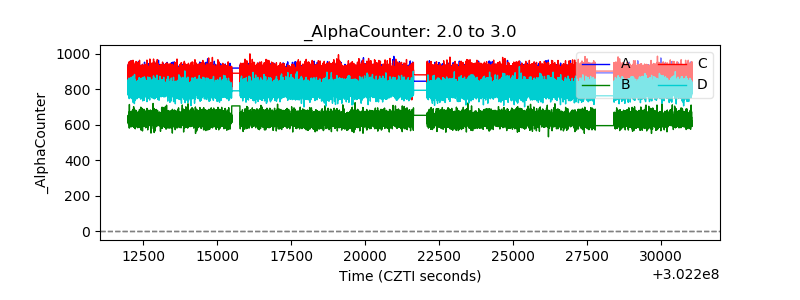

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

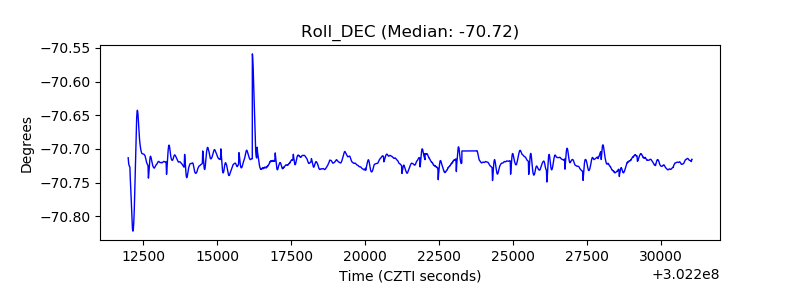

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
