| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20752cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20752cztM0_level2_quad_clean.evt |
| Size (bytes) | 712,396,800 | 130,921,920 |
| Size | 679.4 MB | 124.9 MB |
| Events in quadrant A | 4,803,391 | 846,539 |
| Events in quadrant B | 4,996,297 | 840,312 |
| Events in quadrant C | 4,974,327 | 813,962 |
| Events in quadrant D | 6,146,038 | 793,838 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 198 | 0 |
| B | 0 | 198 | 0 |
| C | 0 | 198 | 0 |
| D | 0 | 198 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20259 | 2 |
| B | 0 | 20775 | 2 |
| C | 0 | 20390 | 2 |
| D | 0 | 24548 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9670 | 68 | 0.703206% |
| B | 9670 | 94 | 0.972079% |
| C | 9670 | 126 | 1.302999% |
| D | 9670 | 268 | 2.771458% |

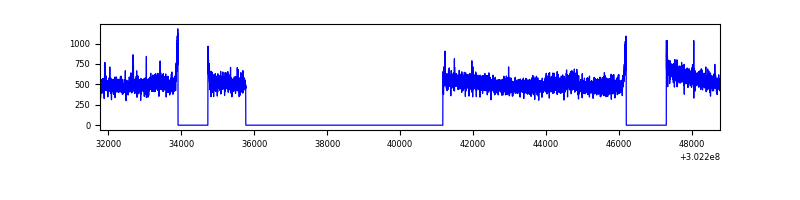

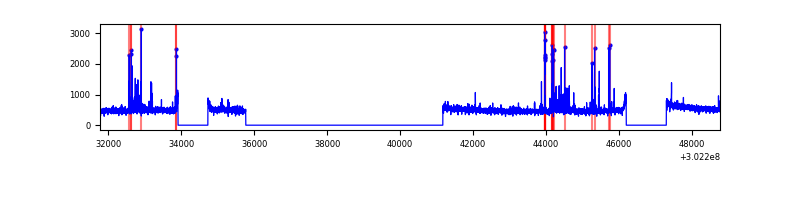

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16993 | 9673 | 12 | 12 | 0.07% | 0.12% |  |
| B | 16993 | 9673 | 23 | 23 | 0.14% | 0.24% |  |
| C | 16993 | 9672 | 0 | 0 | 0.00% | 0.00% |  |
| D | 16993 | 9672 | 180 | 180 | 1.06% | 1.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 108355 | 442.6 | 1221 | 1198 | 242.1 |
| A | 0 | 226 | 10574 | 38.73 | 1221 | 1198 | 242.1 |
| A | 3 | 137 | 9730 | 35.24 | 1221 | 1198 | 242.1 |
| B | 7 | 220 | 142883 | 621.65 | 1207 | 1177 | 228.0 |
| B | 0 | 197 | 60902 | 262.01 | 1207 | 1177 | 228.0 |
| B | 12 | 111 | 27007 | 113.31 | 1207 | 1177 | 228.0 |
| C | 3 | 233 | 197018 | 728.13 | 1166 | 1176 | 269.0 |
| C | 14 | 238 | 184074 | 680.0 | 1166 | 1176 | 269.0 |
| C | 7 | 247 | 21097 | 74.06 | 1166 | 1176 | 269.0 |
| D | 1 | 52 | 840423 | 2966.35 | 1177 | 1148 | 282.9 |
| D | 1 | 20 | 457407 | 1612.61 | 1177 | 1148 | 282.9 |
| D | 2 | 165 | 264029 | 929.13 | 1177 | 1148 | 282.9 |

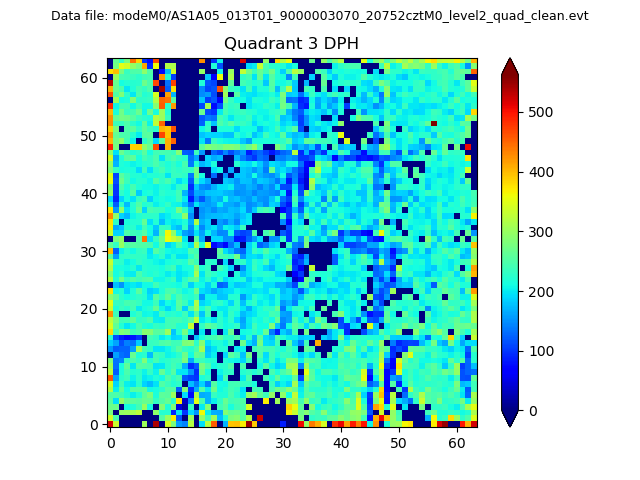

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

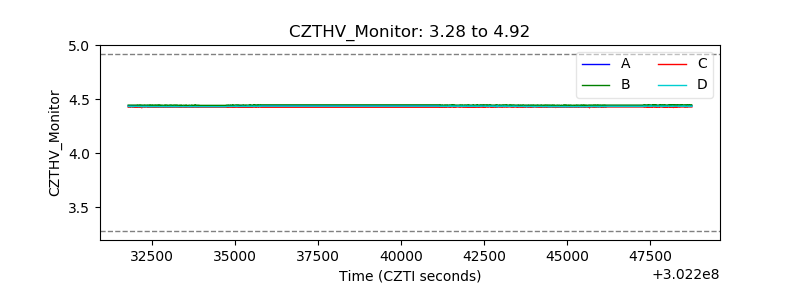

| CZT HV Monitor |  |

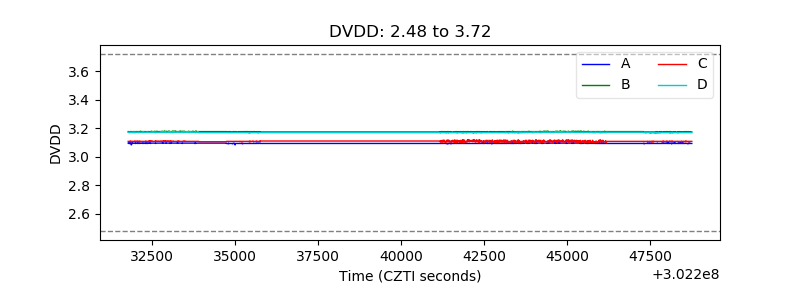

| D_VDD |  |

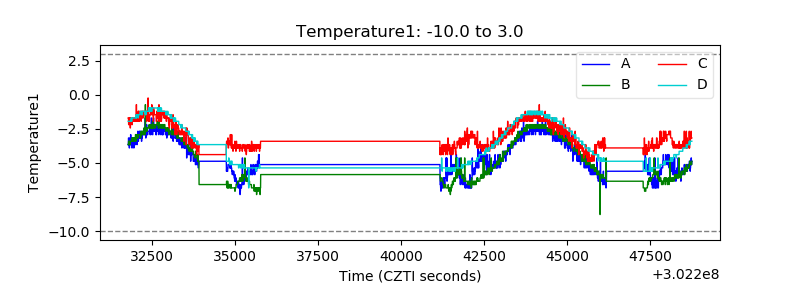

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

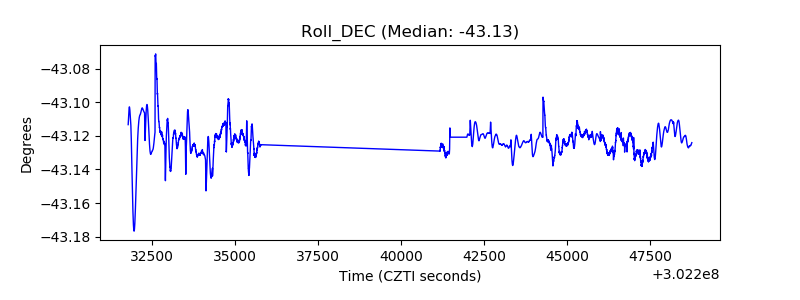

| _Roll_DEC |  |

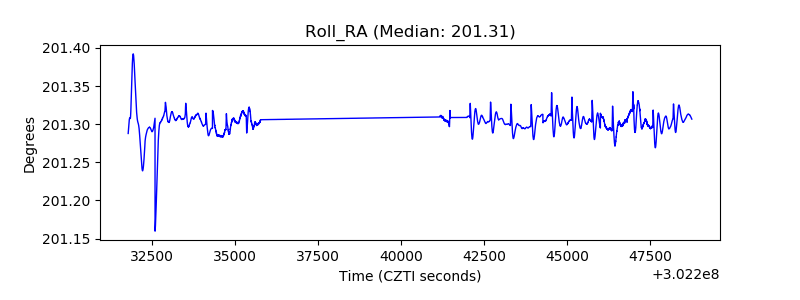

| _Roll_RA |  |
| Veto Counter |  |
