| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20758cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20758cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,674,240 | 100,333,440 |
| Size | 467.9 MB | 95.7 MB |
| Events in quadrant A | 3,298,203 | 676,480 |
| Events in quadrant B | 3,552,314 | 658,477 |
| Events in quadrant C | 3,114,338 | 637,571 |
| Events in quadrant D | 4,466,365 | 625,015 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13730 | 1 |
| B | 0 | 14513 | 1 |
| C | 0 | 13267 | 1 |
| D | 0 | 17308 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6320 | 99 | 1.566456% |
| B | 6320 | 122 | 1.930380% |
| C | 6319 | 105 | 1.661655% |
| D | 6319 | 251 | 3.972147% |

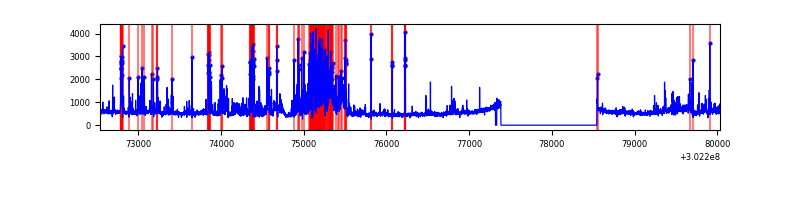

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7495 | 6322 | 7 | 7 | 0.09% | 0.11% |  |
| B | 7495 | 6322 | 35 | 35 | 0.47% | 0.55% |  |
| C | 7494 | 6321 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7494 | 6321 | 203 | 203 | 2.71% | 3.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 141476 | 851.79 | 821 | 806 | 165.1 |
| A | 0 | 226 | 7152 | 38.42 | 821 | 806 | 165.1 |
| A | 3 | 137 | 6159 | 32.41 | 821 | 806 | 165.1 |
| B | 7 | 220 | 248406 | 1632.63 | 798 | 780 | 151.7 |
| B | 0 | 190 | 41581 | 269.01 | 798 | 780 | 151.7 |
| B | 0 | 229 | 32653 | 210.14 | 798 | 780 | 151.7 |
| C | 14 | 238 | 121765 | 686.42 | 765 | 771 | 176.3 |
| C | 7 | 247 | 8204 | 42.17 | 765 | 771 | 176.3 |
| C | 13 | 61 | 5322 | 25.82 | 765 | 771 | 176.3 |
| D | 1 | 52 | 940235 | 5030.1 | 782 | 760 | 186.8 |
| D | 2 | 165 | 300854 | 1606.75 | 782 | 760 | 186.8 |
| D | 1 | 20 | 181349 | 966.9 | 782 | 760 | 186.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

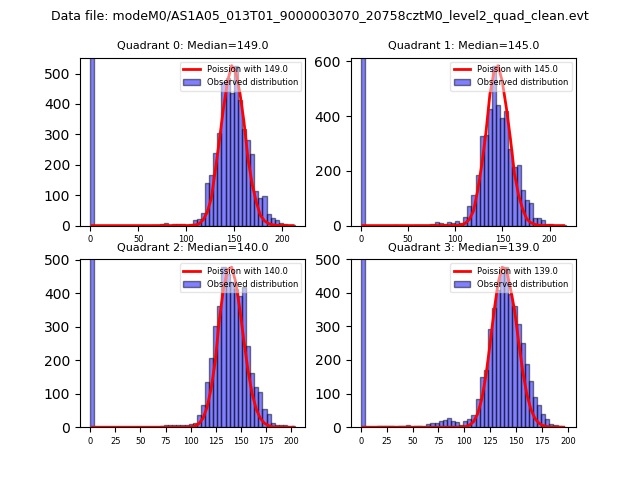

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

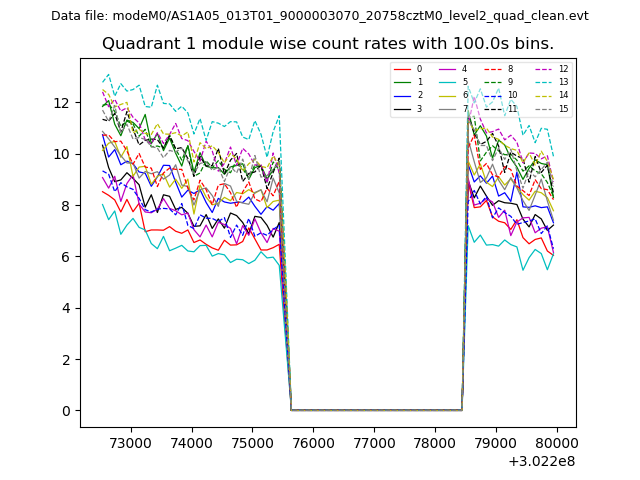

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

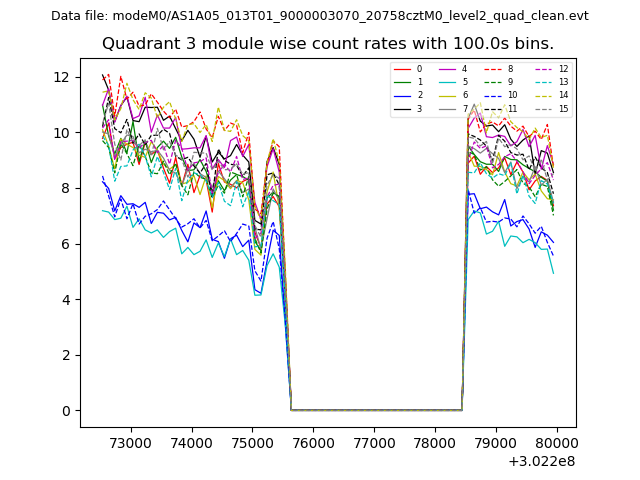

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

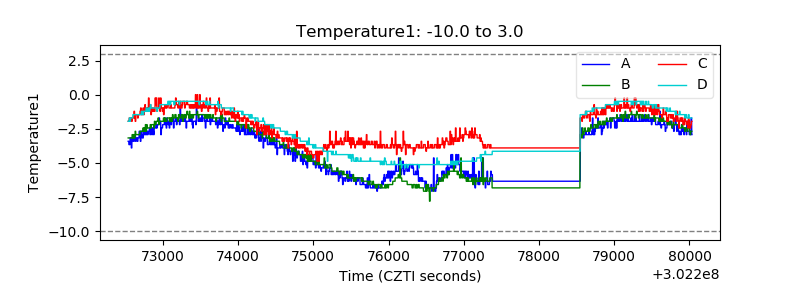

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

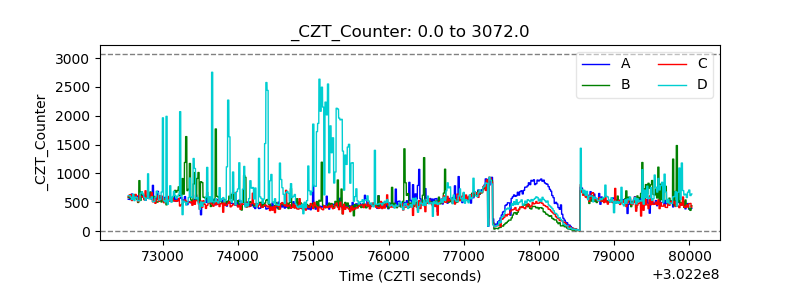

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

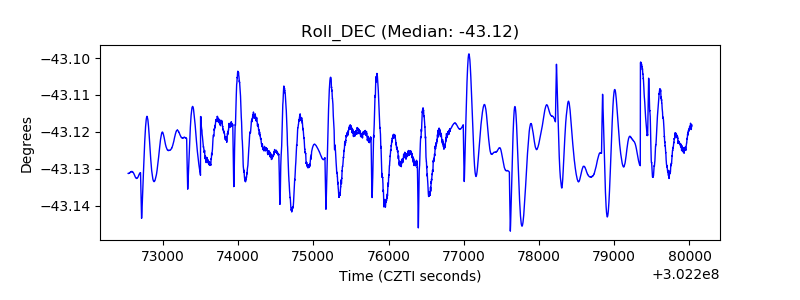

| _Roll_DEC |  |

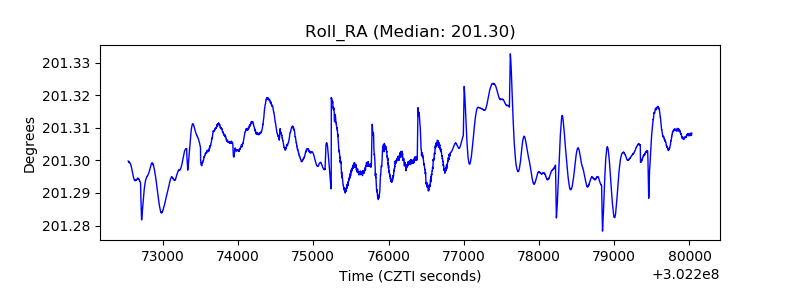

| _Roll_RA |  |
| Veto Counter |  |
