| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20762cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20762cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,140,160 | 103,075,200 |
| Size | 598.1 MB | 98.3 MB |
| Events in quadrant A | 3,575,815 | 678,598 |
| Events in quadrant B | 3,589,619 | 672,680 |
| Events in quadrant C | 3,461,048 | 649,487 |
| Events in quadrant D | 7,857,092 | 597,324 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15697 | 11 |
| B | 0 | 15625 | 6 |
| C | 0 | 15350 | 2 |
| D | 0 | 28679 | 8 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7509 | 65 | 0.865628% |
| B | 7512 | 82 | 1.091587% |
| C | 7514 | 56 | 0.745275% |
| D | 7512 | 1163 | 15.481896% |

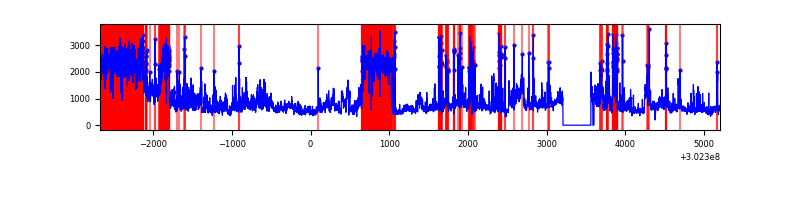

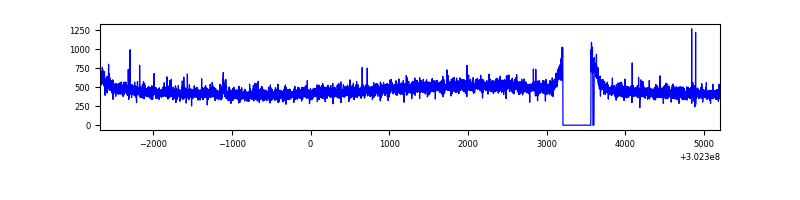

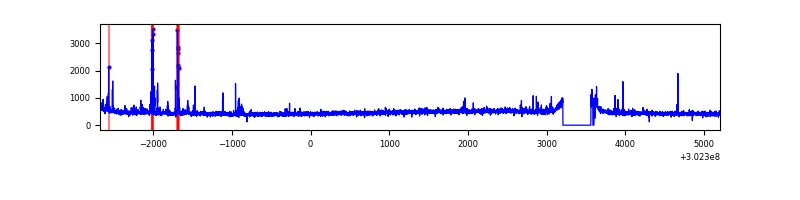

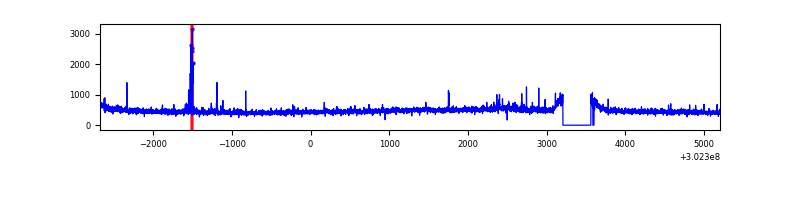

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7884 | 7514 | 13 | 13 | 0.16% | 0.17% |  |
| B | 7885 | 7516 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7885 | 7516 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7885 | 7516 | 1038 | 1038 | 13.16% | 13.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 153575 | 849.86 | 889 | 869 | 179.7 |
| A | 0 | 226 | 7795 | 38.55 | 889 | 869 | 179.7 |
| A | 3 | 137 | 7389 | 36.29 | 889 | 869 | 179.7 |
| B | 7 | 220 | 51643 | 300.86 | 882 | 862 | 168.8 |
| B | 0 | 229 | 20652 | 117.25 | 882 | 862 | 168.8 |
| B | 12 | 111 | 19991 | 113.33 | 882 | 862 | 168.8 |
| C | 14 | 238 | 132514 | 662.9 | 840 | 846 | 198.6 |
| C | 10 | 91 | 17793 | 85.32 | 840 | 846 | 198.6 |
| C | 7 | 247 | 14744 | 69.97 | 840 | 846 | 198.6 |
| D | 1 | 52 | 1410651 | 7150.4 | 810 | 785 | 197.2 |
| D | 12 | 227 | 1138108 | 5768.15 | 810 | 785 | 197.2 |
| D | 5 | 222 | 1117043 | 5661.32 | 810 | 785 | 197.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

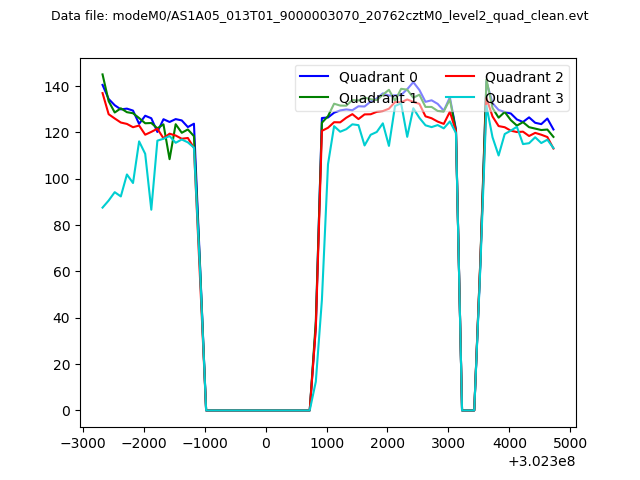

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

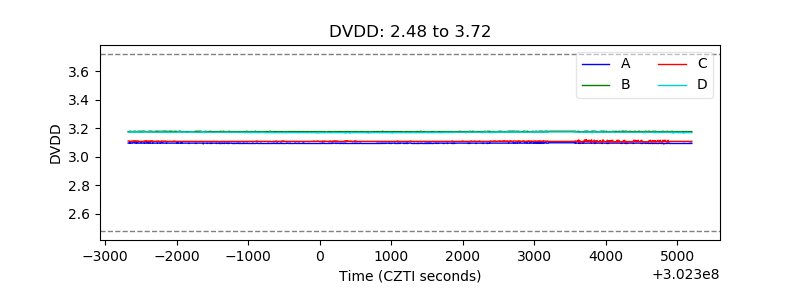

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

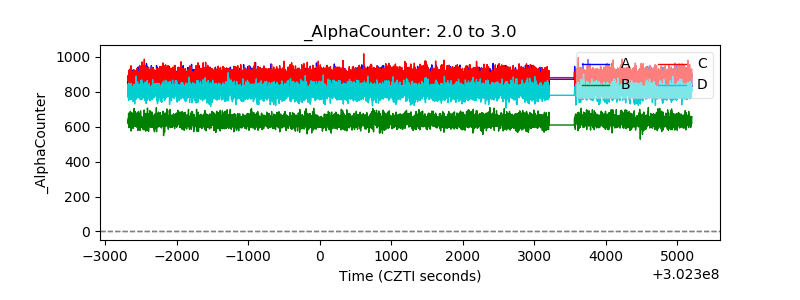

| Alpha Counter |  |

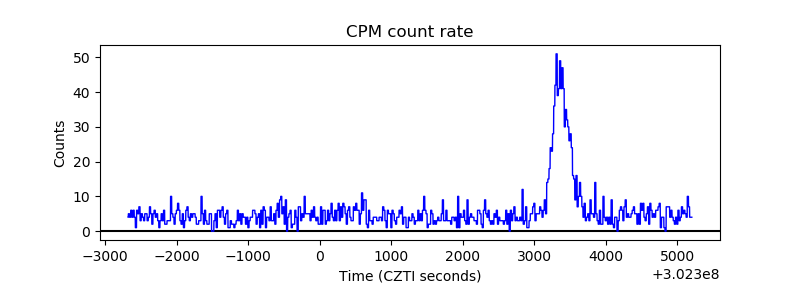

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
