| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20765cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20765cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,208,000 | 73,843,200 |
| Size | 471.3 MB | 70.4 MB |
| Events in quadrant A | 3,225,285 | 450,980 |
| Events in quadrant B | 3,514,690 | 444,607 |
| Events in quadrant C | 3,226,449 | 435,991 |
| Events in quadrant D | 4,534,417 | 425,666 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14130 | 2 |
| B | 0 | 14814 | 3 |
| C | 0 | 14024 | 2 |
| D | 0 | 17800 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6875 | 39 | 0.567273% |
| B | 6874 | 107 | 1.556590% |
| C | 6874 | 66 | 0.960140% |
| D | 6874 | 159 | 2.313064% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7750 | 6876 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7749 | 6874 | 41 | 41 | 0.53% | 0.60% |  |
| C | 7749 | 6874 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7749 | 6874 | 117 | 117 | 1.51% | 1.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 46594 | 274.12 | 826 | 808 | 167.0 |
| A | 0 | 226 | 7050 | 37.37 | 826 | 808 | 167.0 |
| A | 3 | 137 | 6770 | 35.69 | 826 | 808 | 167.0 |
| B | 7 | 220 | 201955 | 1295.51 | 821 | 799 | 155.3 |
| B | 0 | 230 | 33426 | 210.13 | 821 | 799 | 155.3 |
| B | 0 | 229 | 21688 | 134.53 | 821 | 799 | 155.3 |
| C | 14 | 238 | 126167 | 678.01 | 792 | 794 | 184.9 |
| C | 9 | 54 | 11802 | 59.53 | 792 | 794 | 184.9 |
| C | 13 | 61 | 5469 | 25.28 | 792 | 794 | 184.9 |
| D | 1 | 20 | 870396 | 4513.95 | 793 | 769 | 192.7 |
| D | 1 | 52 | 607064 | 3147.08 | 793 | 769 | 192.7 |
| D | 2 | 234 | 26834 | 135.29 | 793 | 769 | 192.7 |

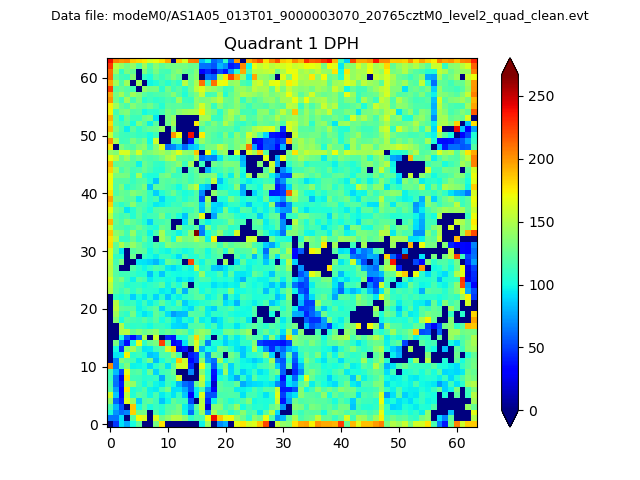

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

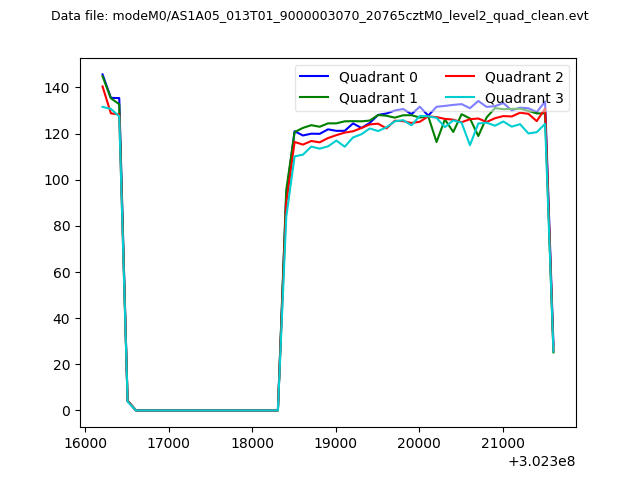

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

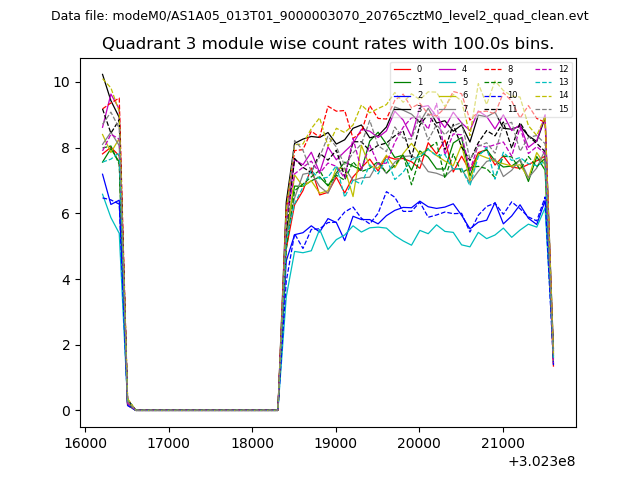

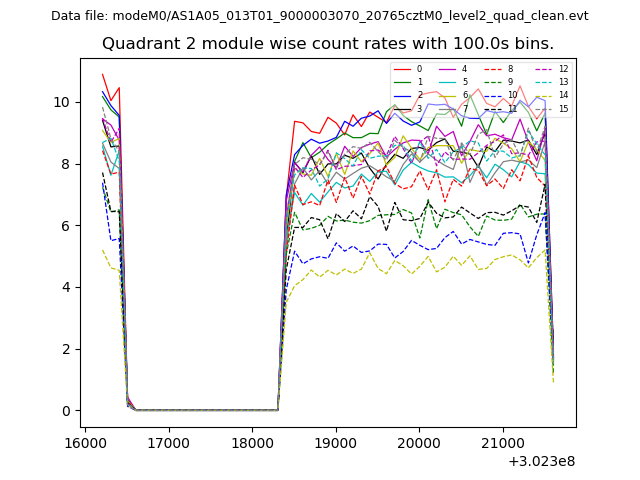

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

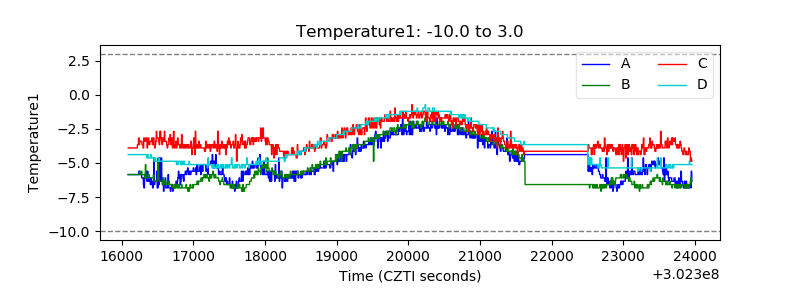

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

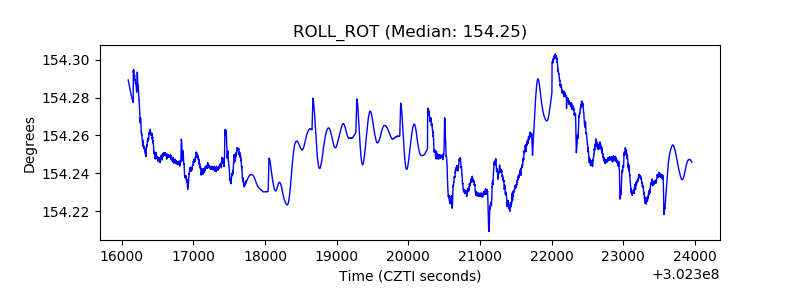

| _ROLL_ROT |  |
| _Roll_DEC |  |

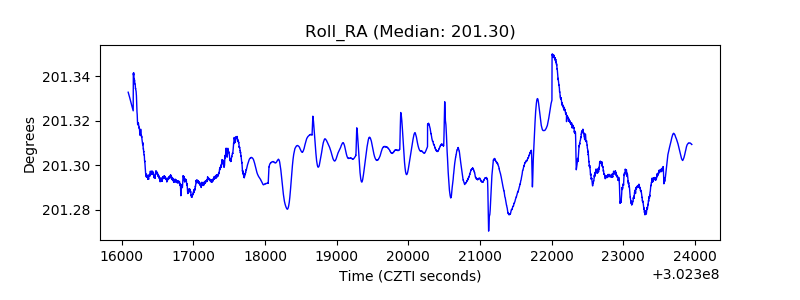

| _Roll_RA |  |

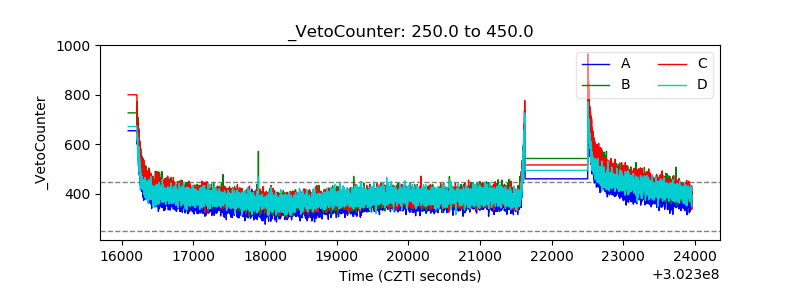

| Veto Counter |  |
