| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20769cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20769cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,138,560 | 107,239,680 |
| Size | 467.4 MB | 102.3 MB |
| Events in quadrant A | 3,405,140 | 715,899 |
| Events in quadrant B | 3,499,356 | 716,932 |
| Events in quadrant C | 3,395,940 | 693,974 |
| Events in quadrant D | 4,115,810 | 681,243 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14151 | 2 |
| B | 0 | 14472 | 2 |
| C | 0 | 14280 | 2 |
| D | 0 | 16716 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6304 | 68 | 1.078680% |
| B | 6304 | 85 | 1.348350% |
| C | 6304 | 128 | 2.030457% |
| D | 6303 | 85 | 1.348564% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7569 | 6305 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7569 | 6305 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7569 | 6305 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7568 | 6303 | 29 | 29 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 39978 | 226.92 | 875 | 861 | 172.4 |
| A | 0 | 226 | 7633 | 39.28 | 875 | 861 | 172.4 |
| A | 3 | 137 | 6549 | 33.0 | 875 | 861 | 172.4 |
| B | 7 | 220 | 45566 | 281.55 | 859 | 841 | 158.9 |
| B | 0 | 189 | 27685 | 168.99 | 859 | 841 | 158.9 |
| B | 0 | 229 | 27632 | 168.65 | 859 | 841 | 158.9 |
| C | 14 | 238 | 134512 | 702.11 | 836 | 843 | 190.4 |
| C | 13 | 61 | 5924 | 26.69 | 836 | 843 | 190.4 |
| C | 7 | 220 | 2126 | 6.74 | 836 | 843 | 190.4 |
| D | 1 | 20 | 531153 | 2609.89 | 850 | 827 | 203.2 |
| D | 1 | 52 | 202555 | 992.76 | 850 | 827 | 203.2 |
| D | 5 | 222 | 113680 | 555.38 | 850 | 827 | 203.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

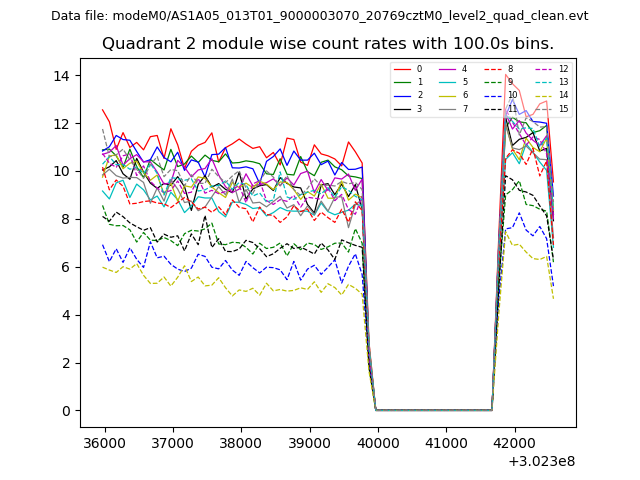

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

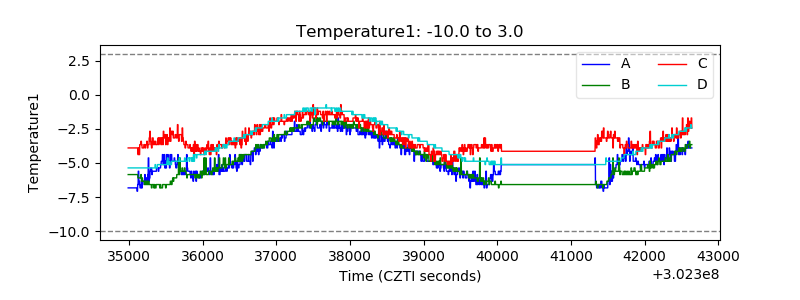

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

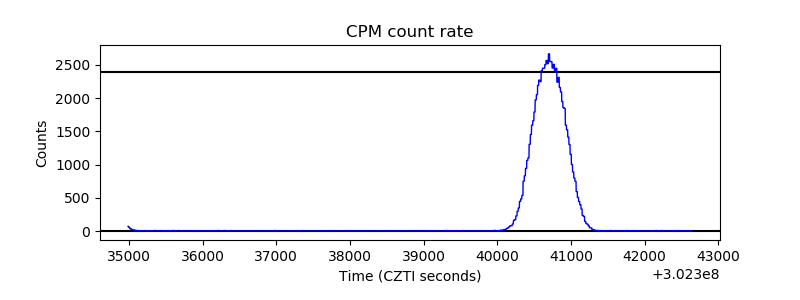

| _CPM_Rate |  |

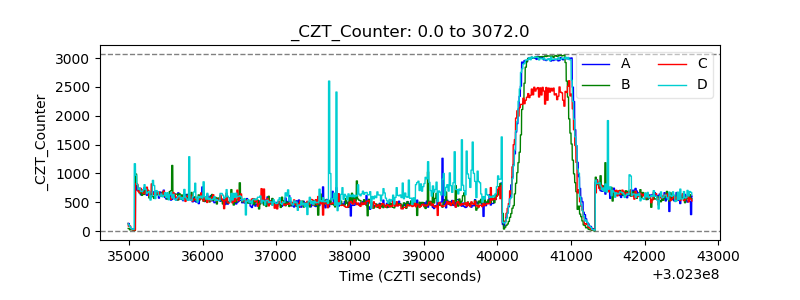

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

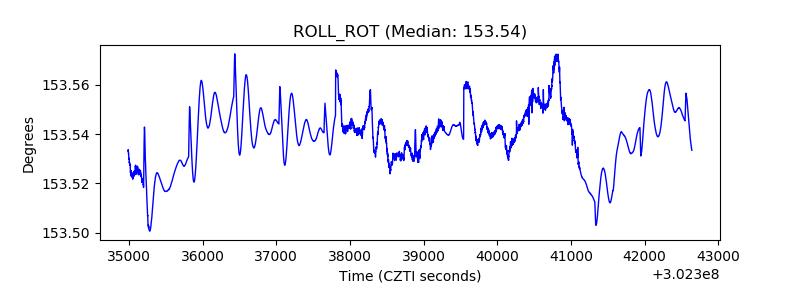

| _ROLL_ROT |  |

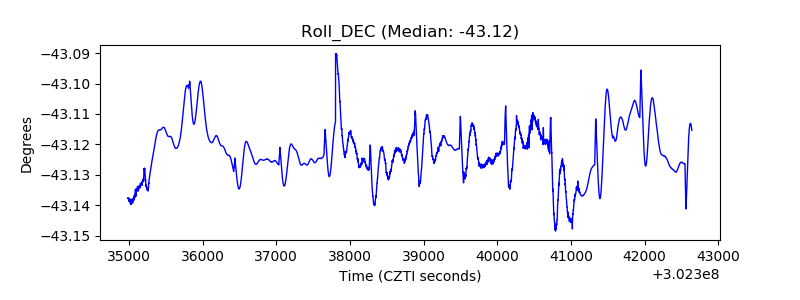

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
