| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20770cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20770cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,026,240 | 111,335,040 |
| Size | 458.7 MB | 106.2 MB |
| Events in quadrant A | 3,190,818 | 763,971 |
| Events in quadrant B | 3,517,835 | 754,253 |
| Events in quadrant C | 3,154,892 | 731,124 |
| Events in quadrant D | 4,312,765 | 719,238 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 10 |
| B | 0 | 128 | 14 |
| C | 0 | 128 | 8 |
| D | 0 | 128 | 8 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14523 | 1288 |
| B | 0 | 15467 | 1260 |
| C | 0 | 14400 | 1256 |
| D | 0 | 18859 | 1381 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 1 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5764 | 113 | 1.960444% |
| B | 5771 | 157 | 2.720499% |
| C | 5777 | 152 | 2.631123% |
| D | 5765 | 158 | 2.740676% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7584 | 5872 | 4 | 4 | 0.05% | 0.07% |  |
| B | 7584 | 5876 | 31 | 31 | 0.41% | 0.53% |  |
| C | 7584 | 5889 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7584 | 5882 | 57 | 57 | 0.75% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 31839 | 192.42 | 820 | 809 | 161.3 |
| A | 13 | 61 | 9936 | 56.6 | 820 | 809 | 161.3 |
| A | 0 | 226 | 7349 | 40.56 | 820 | 809 | 161.3 |
| B | 7 | 220 | 152869 | 1037.18 | 797 | 781 | 146.6 |
| B | 0 | 245 | 85830 | 580.0 | 797 | 781 | 146.6 |
| B | 0 | 230 | 44031 | 294.95 | 797 | 781 | 146.6 |
| C | 14 | 238 | 123613 | 694.31 | 776 | 784 | 176.9 |
| C | 13 | 61 | 5550 | 26.94 | 776 | 784 | 176.9 |
| C | 7 | 220 | 2911 | 12.02 | 776 | 784 | 176.9 |
| D | 1 | 20 | 917055 | 4828.2 | 796 | 773 | 189.8 |
| D | 1 | 52 | 325842 | 1712.9 | 796 | 773 | 189.8 |
| D | 12 | 227 | 27089 | 138.67 | 796 | 773 | 189.8 |

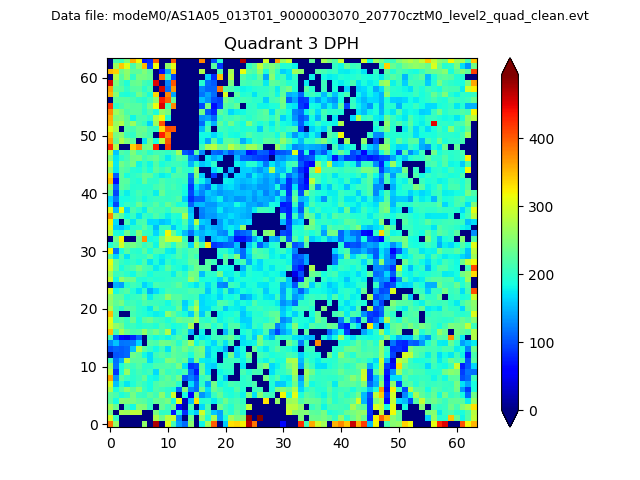

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

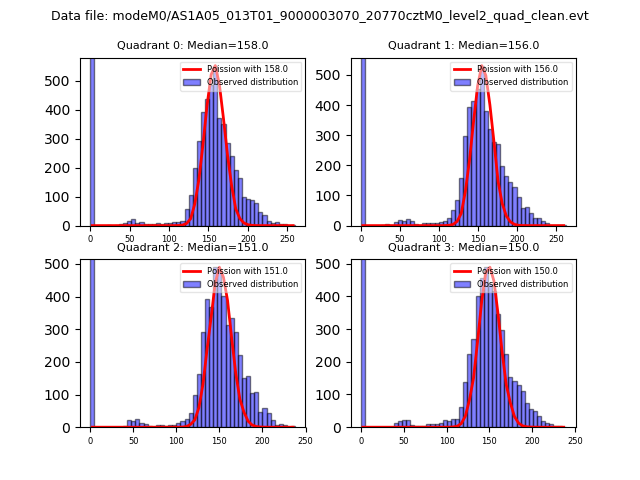

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

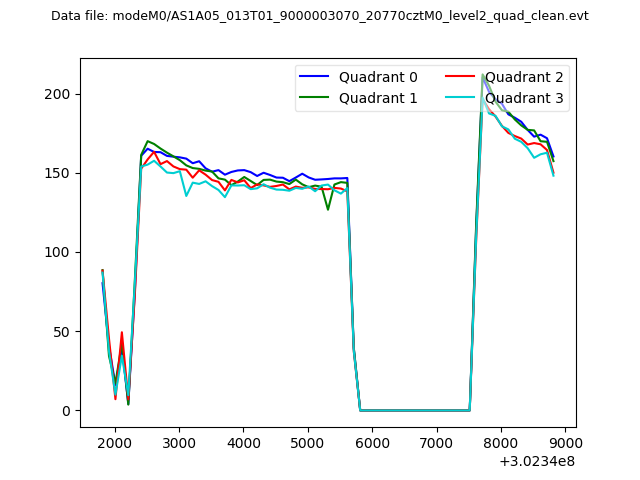

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

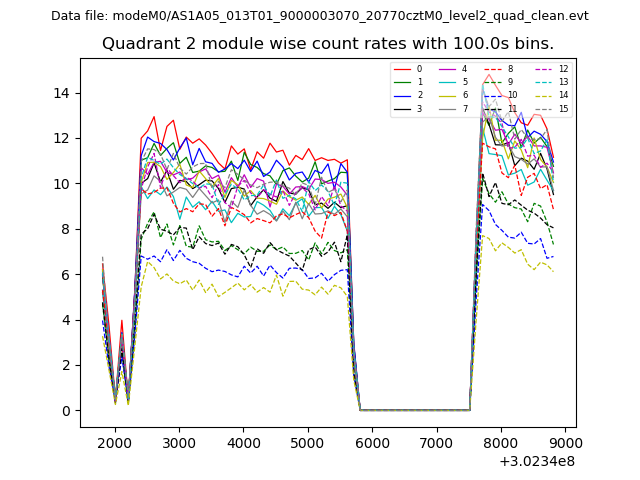

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

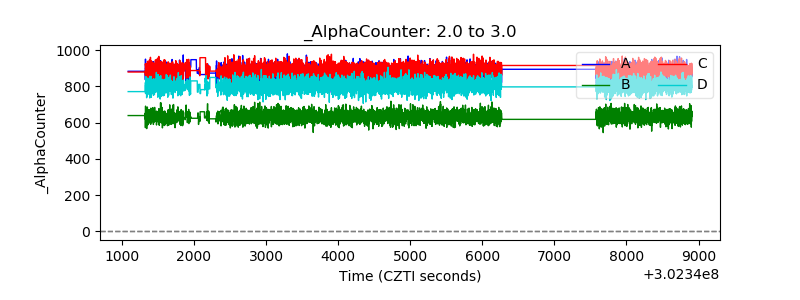

| Alpha Counter |  |

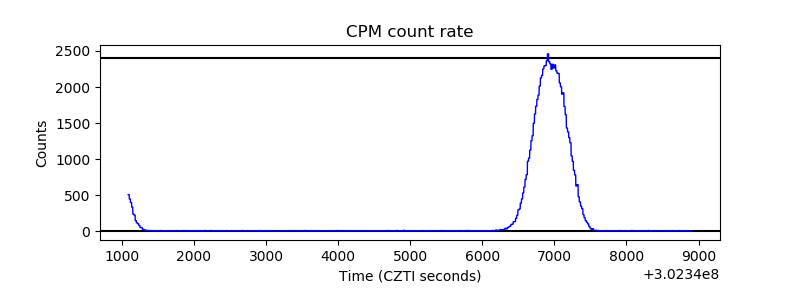

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
