| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20773cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20773cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,096,640 | 85,965,120 |
| Size | 456.9 MB | 82.0 MB |
| Events in quadrant A | 2,939,767 | 569,138 |
| Events in quadrant B | 3,141,608 | 556,919 |
| Events in quadrant C | 2,829,228 | 539,236 |
| Events in quadrant D | 5,196,319 | 523,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12502 | 1 |
| B | 0 | 12984 | 1 |
| C | 0 | 12299 | 1 |
| D | 0 | 19772 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5938 | 83 | 1.397777% |
| B | 5939 | 70 | 1.178650% |
| C | 5938 | 75 | 1.263052% |
| D | 5938 | 170 | 2.862917% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6943 | 5938 | 6 | 6 | 0.09% | 0.10% |  |
| B | 6944 | 5940 | 12 | 12 | 0.17% | 0.20% |  |
| C | 6943 | 5939 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6943 | 5939 | 80 | 80 | 1.15% | 1.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 66037 | 434.18 | 745 | 730 | 150.4 |
| A | 13 | 252 | 12957 | 81.29 | 745 | 730 | 150.4 |
| A | 0 | 226 | 6512 | 38.44 | 745 | 730 | 150.4 |
| B | 3 | 64 | 65585 | 466.0 | 731 | 714 | 139.2 |
| B | 4 | 80 | 55933 | 396.66 | 731 | 714 | 139.2 |
| B | 0 | 190 | 43652 | 308.44 | 731 | 714 | 139.2 |
| C | 14 | 238 | 111195 | 690.32 | 695 | 700 | 160.1 |
| C | 13 | 61 | 4846 | 25.9 | 695 | 700 | 160.1 |
| C | 9 | 54 | 3345 | 16.52 | 695 | 700 | 160.1 |
| D | 12 | 227 | 1808608 | 10608.86 | 709 | 688 | 170.4 |
| D | 1 | 20 | 512739 | 3004.71 | 709 | 688 | 170.4 |
| D | 1 | 52 | 135863 | 793.21 | 709 | 688 | 170.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

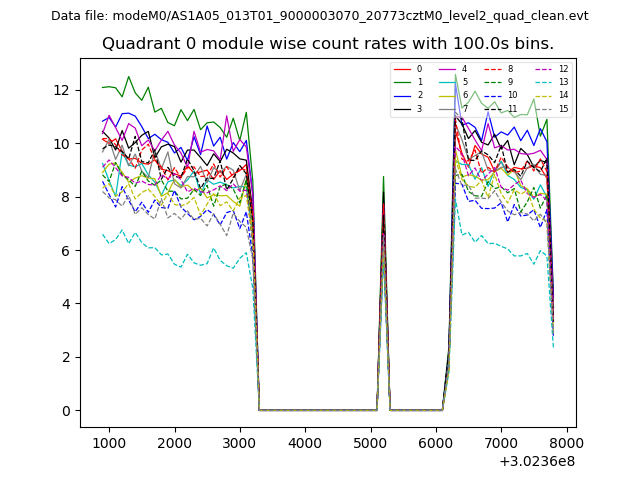

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

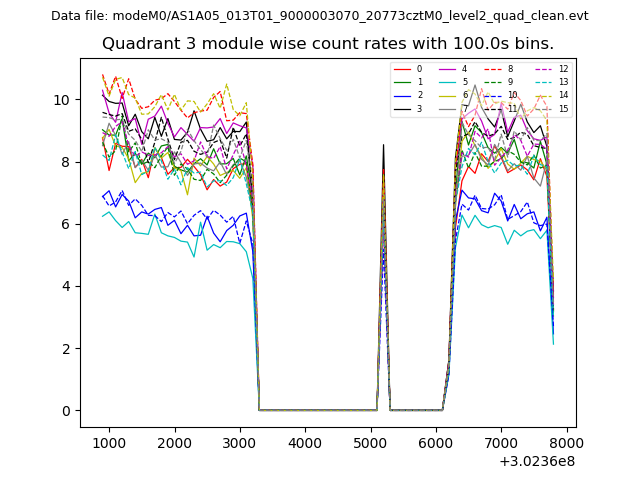

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

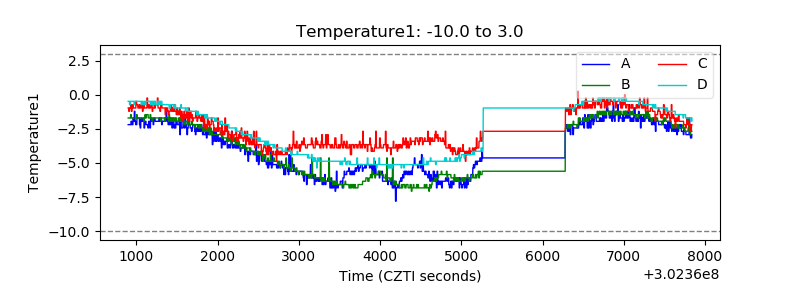

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

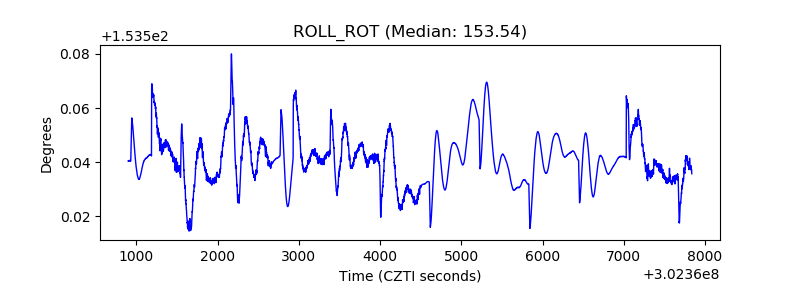

| _ROLL_ROT |  |

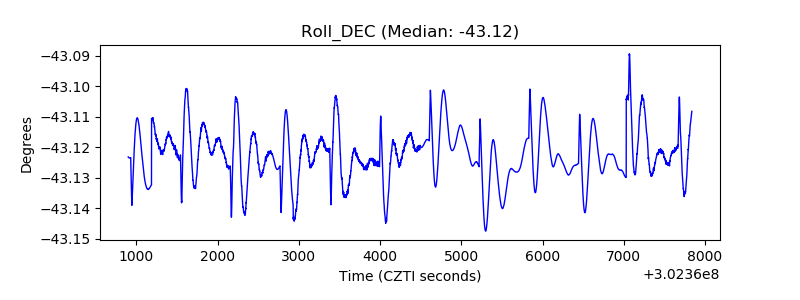

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
