| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20774cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20774cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,613,760 | 103,161,600 |
| Size | 467.9 MB | 98.4 MB |
| Events in quadrant A | 3,300,428 | 681,474 |
| Events in quadrant B | 3,628,618 | 668,444 |
| Events in quadrant C | 3,250,254 | 648,062 |
| Events in quadrant D | 4,211,121 | 646,176 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14210 | 2 |
| B | 0 | 15235 | 1 |
| C | 0 | 14180 | 1 |
| D | 0 | 16953 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6889 | 60 | 0.870954% |
| B | 6890 | 115 | 1.669086% |
| C | 6890 | 67 | 0.972424% |
| D | 6890 | 79 | 1.146589% |

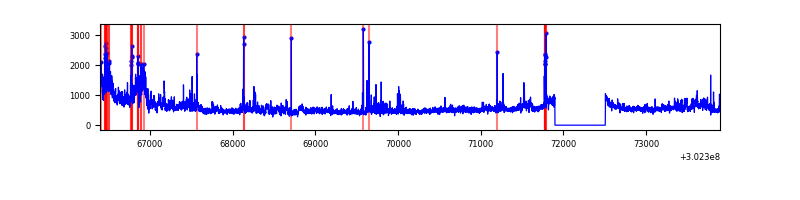

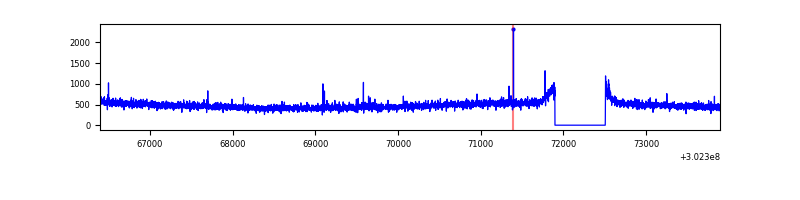

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6890 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7500 | 6890 | 17 | 17 | 0.23% | 0.25% |  |
| C | 7500 | 6891 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7500 | 6891 | 37 | 37 | 0.49% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 22436 | 126.26 | 852 | 833 | 171.1 |
| A | 0 | 226 | 7641 | 39.79 | 852 | 833 | 171.1 |
| A | 3 | 137 | 6849 | 35.16 | 852 | 833 | 171.1 |
| B | 7 | 220 | 178831 | 1107.93 | 835 | 816 | 160.7 |
| B | 3 | 64 | 58294 | 357.73 | 835 | 816 | 160.7 |
| B | 0 | 190 | 35923 | 218.5 | 835 | 816 | 160.7 |
| C | 14 | 238 | 127248 | 681.76 | 798 | 801 | 185.5 |
| C | 13 | 61 | 5779 | 26.84 | 798 | 801 | 185.5 |
| C | 3 | 233 | 5207 | 23.76 | 798 | 801 | 185.5 |
| D | 12 | 227 | 458094 | 2296.81 | 822 | 796 | 199.1 |
| D | 1 | 52 | 320512 | 1605.8 | 822 | 796 | 199.1 |
| D | 1 | 20 | 280528 | 1404.97 | 822 | 796 | 199.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

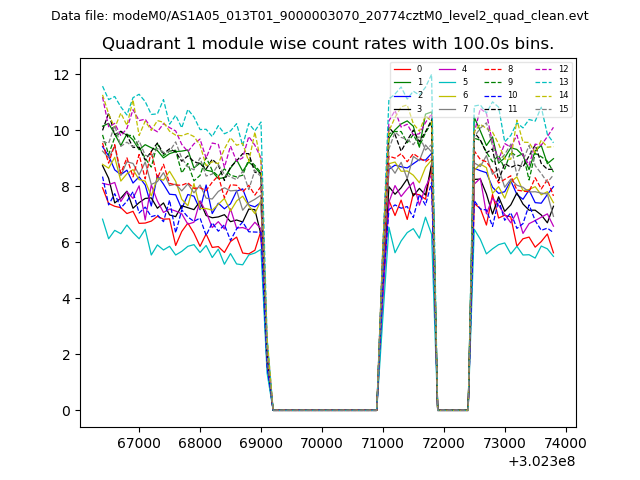

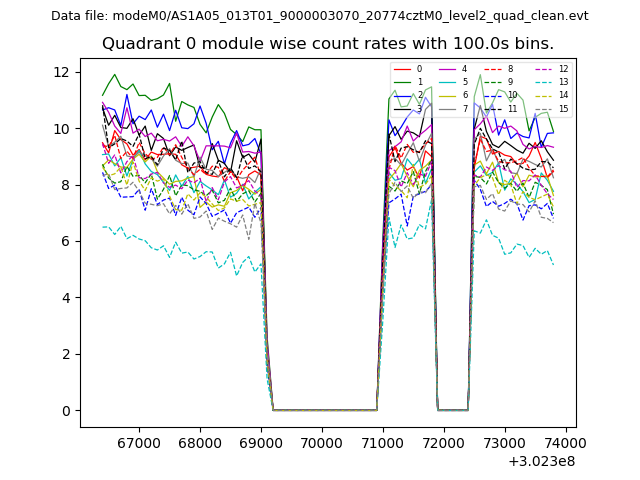

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

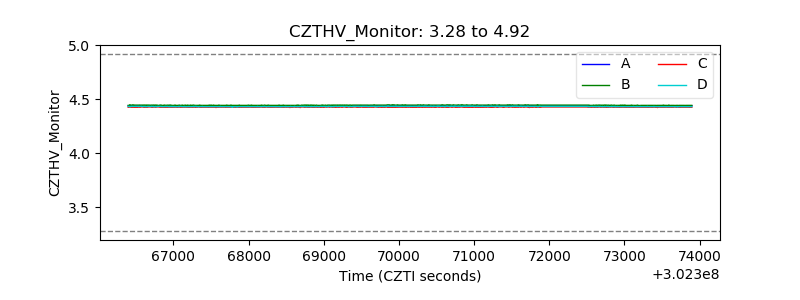

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

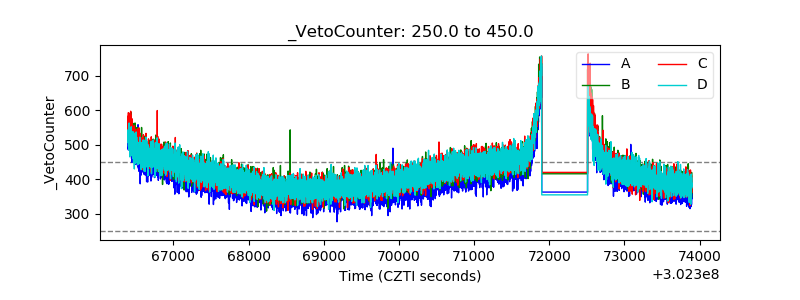

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

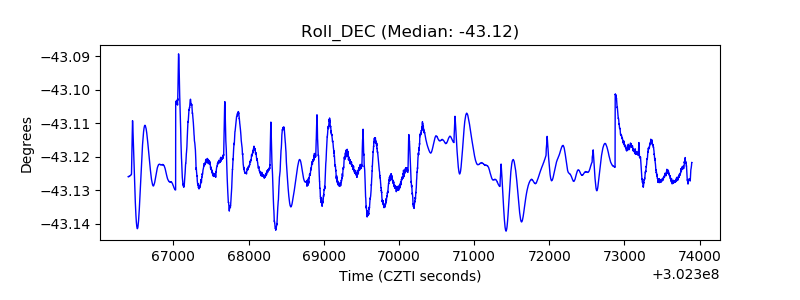

| _Roll_DEC |  |

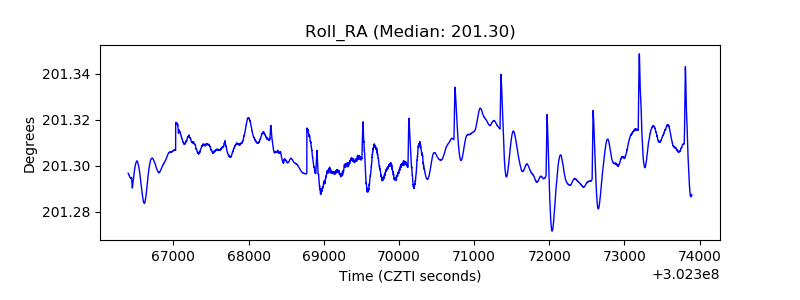

| _Roll_RA |  |
| Veto Counter |  |
