| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20794cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20794cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,868,160 | 80,104,320 |
| Size | 496.7 MB | 76.4 MB |
| Events in quadrant A | 3,272,816 | 501,483 |
| Events in quadrant B | 3,691,873 | 493,767 |
| Events in quadrant C | 3,315,967 | 482,444 |
| Events in quadrant D | 5,016,518 | 457,717 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14345 | 2 |
| B | 0 | 15524 | 2 |
| C | 0 | 14379 | 2 |
| D | 0 | 19564 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7038 | 46 | 0.653595% |
| B | 7038 | 110 | 1.562944% |
| C | 7038 | 71 | 1.008809% |
| D | 7039 | 269 | 3.821566% |

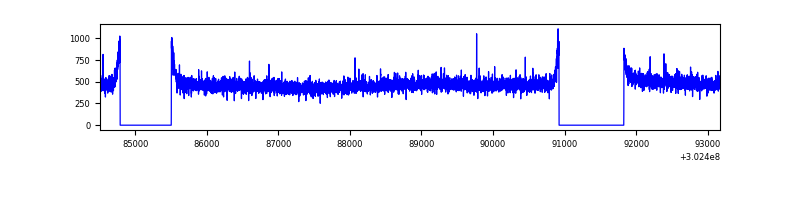

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8658 | 7038 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8658 | 7038 | 34 | 34 | 0.39% | 0.48% |  |
| C | 8658 | 7038 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8659 | 7039 | 218 | 218 | 2.52% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7294 | 37.7 | 851 | 834 | 171.4 |
| A | 3 | 137 | 7012 | 36.05 | 851 | 834 | 171.4 |
| A | 12 | 194 | 5944 | 29.82 | 851 | 834 | 171.4 |
| B | 7 | 220 | 223224 | 1385.83 | 844 | 824 | 160.5 |
| B | 0 | 197 | 49367 | 302.48 | 844 | 824 | 160.5 |
| B | 0 | 189 | 44471 | 271.97 | 844 | 824 | 160.5 |
| C | 14 | 238 | 129122 | 673.96 | 813 | 817 | 190.4 |
| C | 7 | 247 | 10793 | 52.4 | 813 | 817 | 190.4 |
| C | 13 | 61 | 5643 | 25.35 | 813 | 817 | 190.4 |
| D | 12 | 227 | 433039 | 2222.82 | 806 | 782 | 194.5 |
| D | 1 | 52 | 333089 | 1708.84 | 806 | 782 | 194.5 |
| D | 7 | 38 | 317892 | 1630.7 | 806 | 782 | 194.5 |

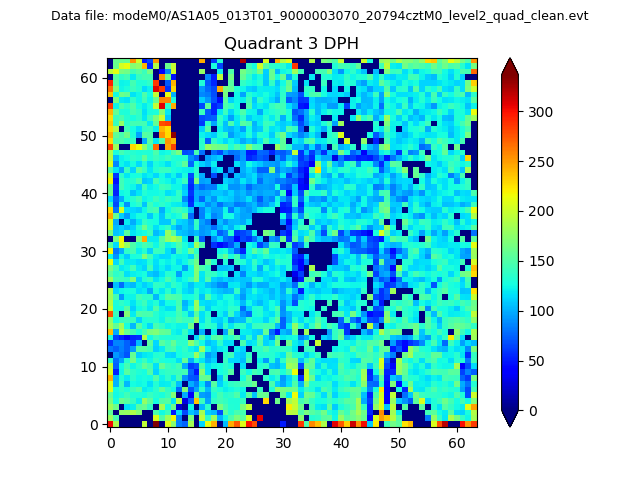

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

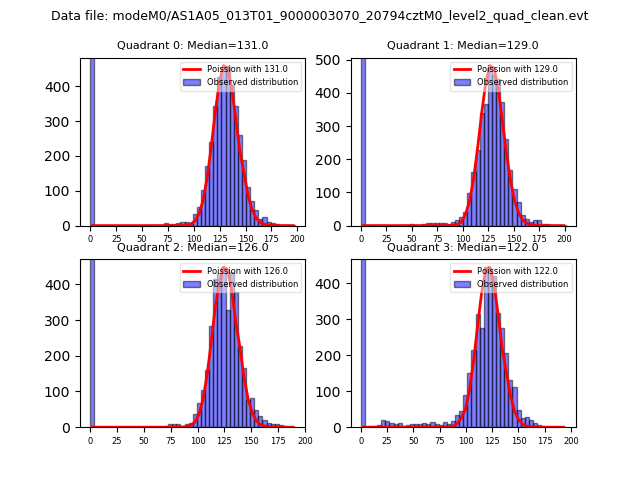

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

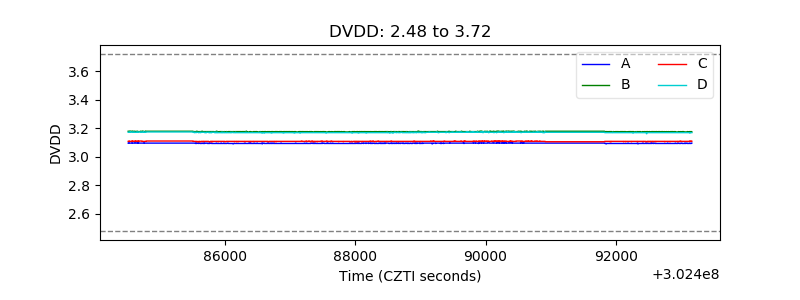

| D_VDD |  |

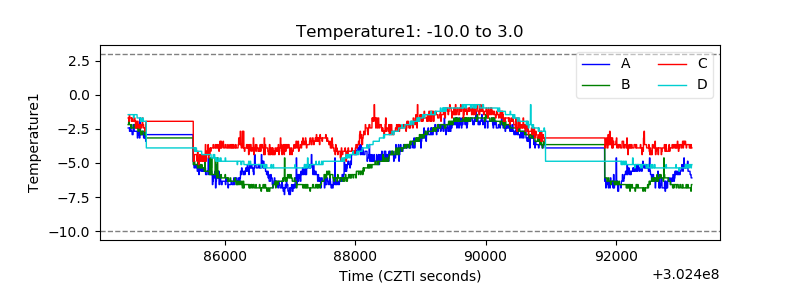

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

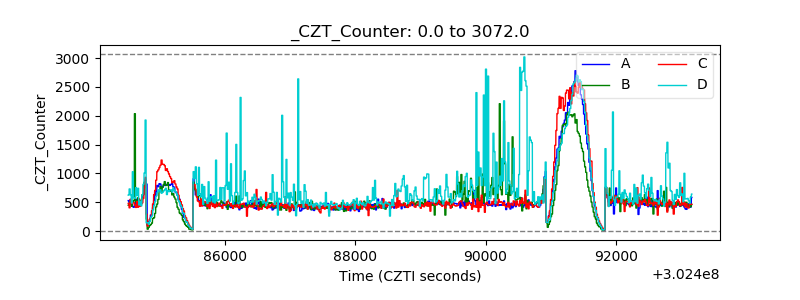

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
