| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20798cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20798cztM0_level2_quad_clean.evt |
| Size (bytes) | 673,058,880 | 93,242,880 |
| Size | 641.9 MB | 88.9 MB |
| Events in quadrant A | 3,206,013 | 668,753 |
| Events in quadrant B | 3,476,698 | 666,338 |
| Events in quadrant C | 3,257,593 | 649,759 |
| Events in quadrant D | 10,033,164 | 414,515 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13268 | 1 |
| B | 0 | 14182 | 1 |
| C | 0 | 13594 | 1 |
| D | 0 | 33943 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6065 | 37 | 0.610058% |
| B | 6066 | 84 | 1.384768% |
| C | 6066 | 96 | 1.582591% |
| D | 6066 | 2680 | 44.180679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7350 | 6065 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7351 | 6066 | 28 | 28 | 0.38% | 0.46% |  |
| C | 7351 | 6066 | 0 | 0 | 0.00% | 0.00% |  |

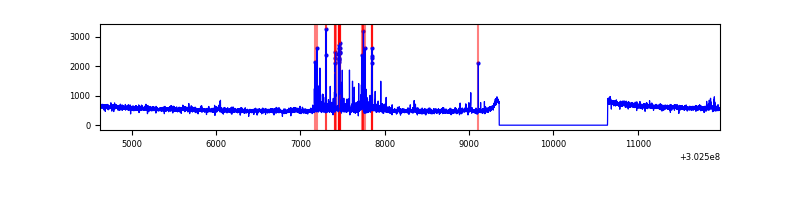

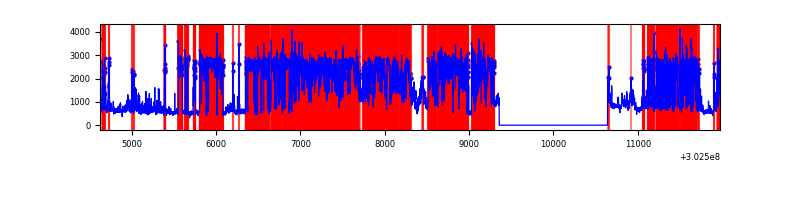

| D | 7350 | 6065 | 2565 | 2565 | 34.90% | 42.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7251 | 39.24 | 834 | 821 | 163.9 |
| A | 3 | 137 | 6173 | 32.66 | 834 | 821 | 163.9 |
| A | 12 | 194 | 5912 | 31.07 | 834 | 821 | 163.9 |
| B | 7 | 220 | 150872 | 998.66 | 818 | 801 | 150.3 |
| B | 0 | 189 | 36466 | 237.34 | 818 | 801 | 150.3 |
| B | 4 | 216 | 31804 | 206.31 | 818 | 801 | 150.3 |
| C | 14 | 238 | 129372 | 705.17 | 800 | 805 | 182.3 |
| C | 13 | 61 | 5602 | 26.31 | 800 | 805 | 182.3 |
| C | 7 | 247 | 4850 | 22.19 | 800 | 805 | 182.3 |
| D | 1 | 52 | 5608535 | 37086.91 | 635 | 619 | 151.2 |
| D | 12 | 227 | 1831380 | 12107.4 | 635 | 619 | 151.2 |
| D | 1 | 20 | 66511 | 435.76 | 635 | 619 | 151.2 |

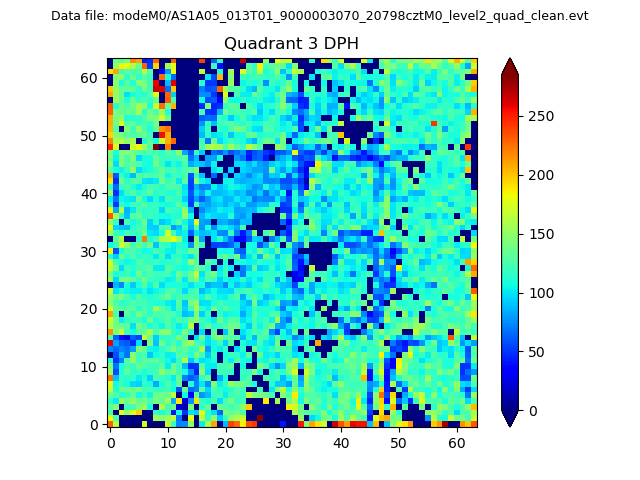

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

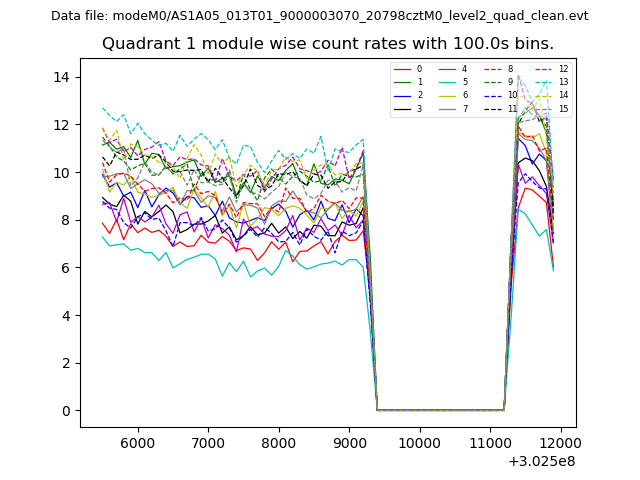

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

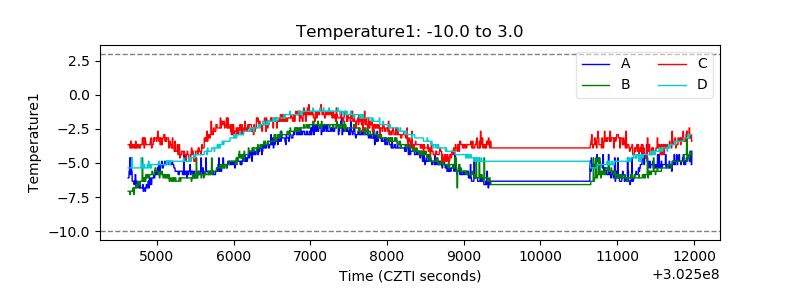

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

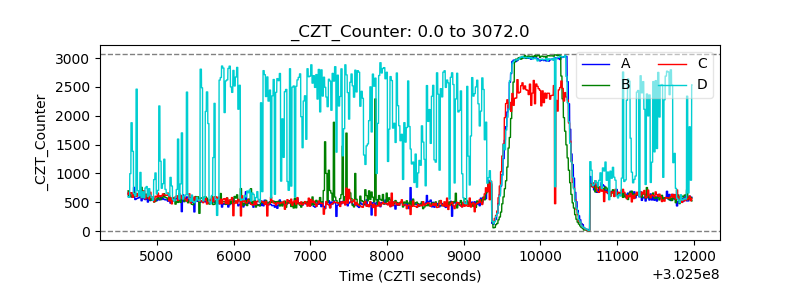

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

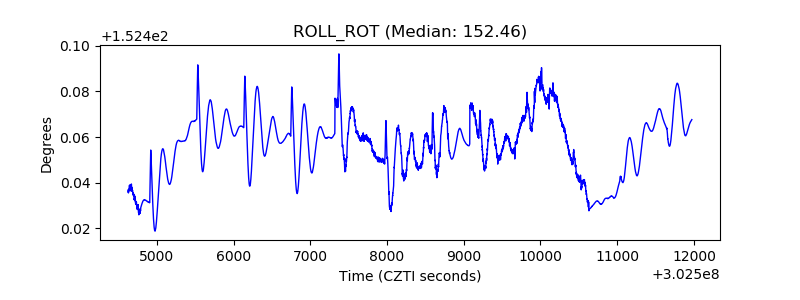

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

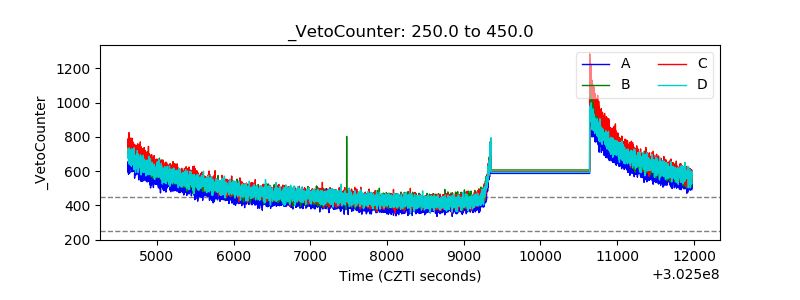

| Veto Counter |  |
