| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20814cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20814cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,141,120 | 119,698,560 |
| Size | 506.5 MB | 114.2 MB |
| Events in quadrant A | 3,465,824 | 820,060 |
| Events in quadrant B | 3,759,555 | 812,407 |
| Events in quadrant C | 3,502,749 | 789,484 |
| Events in quadrant D | 4,938,435 | 771,723 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14337 | 2 |
| B | 0 | 15344 | 4 |
| C | 0 | 14540 | 2 |
| D | 0 | 19596 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6193 | 88 | 1.420959% |
| B | 6192 | 140 | 2.260982% |
| C | 6192 | 170 | 2.745478% |
| D | 6192 | 147 | 2.374031% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

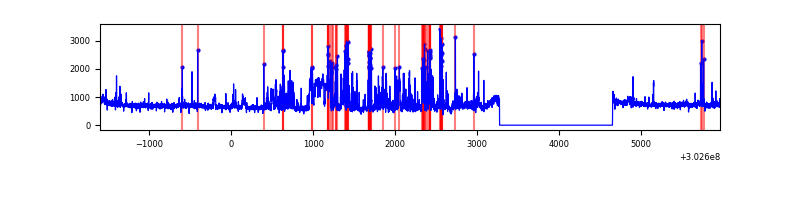

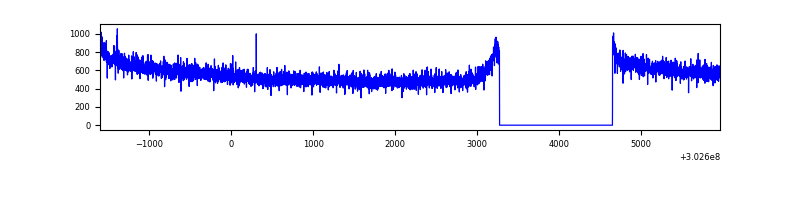

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7573 | 6193 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7572 | 6192 | 26 | 26 | 0.34% | 0.42% |  |
| C | 7572 | 6192 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7572 | 6192 | 75 | 75 | 0.99% | 1.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 252 | 9506 | 49.03 | 900 | 887 | 175.8 |
| A | 0 | 226 | 8016 | 40.55 | 900 | 887 | 175.8 |
| A | 3 | 137 | 6344 | 31.04 | 900 | 887 | 175.8 |
| B | 7 | 220 | 131809 | 819.79 | 874 | 857 | 159.7 |
| B | 0 | 189 | 73445 | 454.42 | 874 | 857 | 159.7 |
| B | 3 | 64 | 37598 | 230.01 | 874 | 857 | 159.7 |
| C | 14 | 238 | 139042 | 711.74 | 854 | 864 | 194.1 |
| C | 9 | 54 | 19879 | 97.94 | 854 | 864 | 194.1 |
| C | 8 | 128 | 7677 | 35.09 | 854 | 864 | 194.1 |
| D | 1 | 20 | 877070 | 4283.23 | 871 | 849 | 204.6 |
| D | 1 | 52 | 397811 | 1940.47 | 871 | 849 | 204.6 |
| D | 9 | 1 | 327440 | 1596.47 | 871 | 849 | 204.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

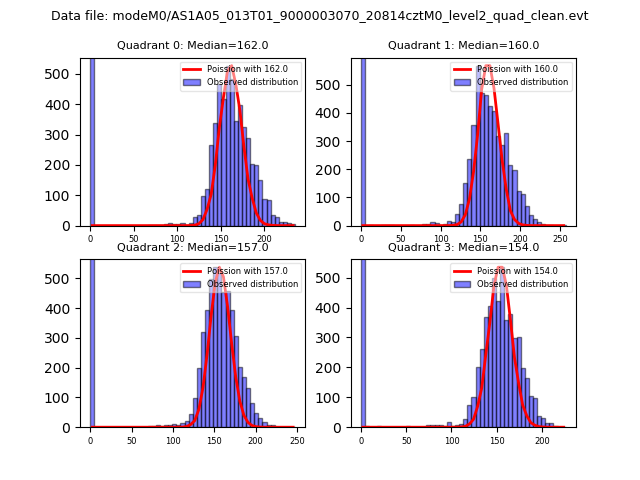

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

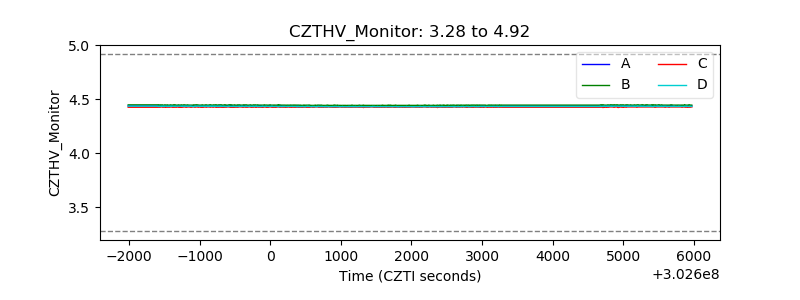

| CZT HV Monitor |  |

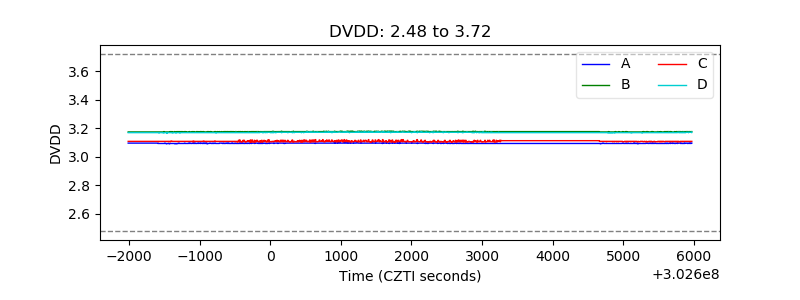

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

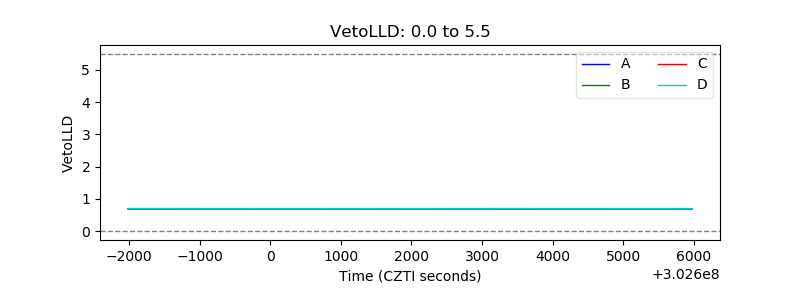

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

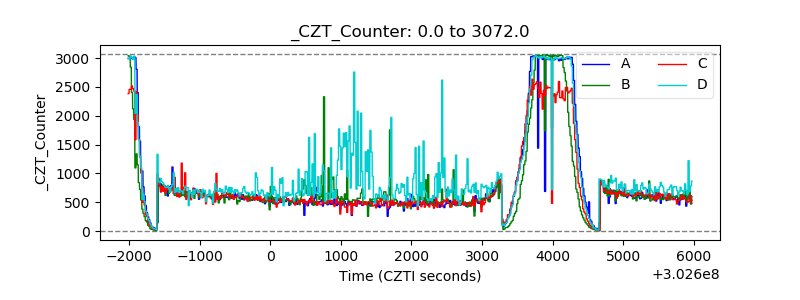

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

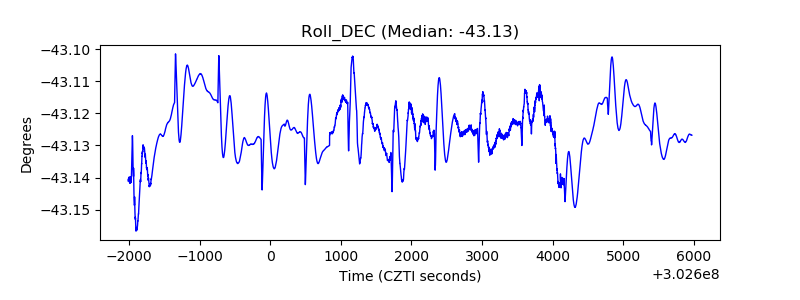

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
