| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20817cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20817cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,580,480 | 94,769,280 |
| Size | 474.5 MB | 90.4 MB |
| Events in quadrant A | 3,105,468 | 628,242 |
| Events in quadrant B | 4,367,334 | 591,662 |
| Events in quadrant C | 3,320,472 | 600,089 |
| Events in quadrant D | 3,837,441 | 599,217 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13312 | 1 |
| B | 0 | 17070 | 1 |
| C | 0 | 13991 | 1 |
| D | 0 | 15293 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6462 | 81 | 1.253482% |
| B | 6463 | 438 | 6.777039% |
| C | 6463 | 149 | 2.305431% |
| D | 6463 | 112 | 1.732941% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7282 | 6462 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7283 | 6463 | 311 | 311 | 4.27% | 4.81% |  |
| C | 7283 | 6463 | 40 | 40 | 0.55% | 0.62% |  |
| D | 7283 | 6463 | 27 | 27 | 0.37% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7149 | 38.83 | 806 | 789 | 163.8 |
| A | 3 | 137 | 6399 | 34.25 | 806 | 789 | 163.8 |
| A | 12 | 194 | 5994 | 31.78 | 806 | 789 | 163.8 |
| B | 7 | 220 | 1073613 | 7265.3 | 772 | 753 | 147.7 |
| B | 3 | 64 | 77181 | 517.56 | 772 | 753 | 147.7 |
| B | 0 | 219 | 73493 | 492.59 | 772 | 753 | 147.7 |
| C | 9 | 54 | 243535 | 1382.87 | 758 | 763 | 175.6 |
| C | 14 | 238 | 121689 | 688.81 | 758 | 763 | 175.6 |
| C | 13 | 61 | 5363 | 26.2 | 758 | 763 | 175.6 |
| D | 1 | 20 | 544849 | 2892.32 | 780 | 757 | 188.1 |
| D | 1 | 52 | 129193 | 682.75 | 780 | 757 | 188.1 |
| D | 13 | 153 | 97532 | 514.44 | 780 | 757 | 188.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

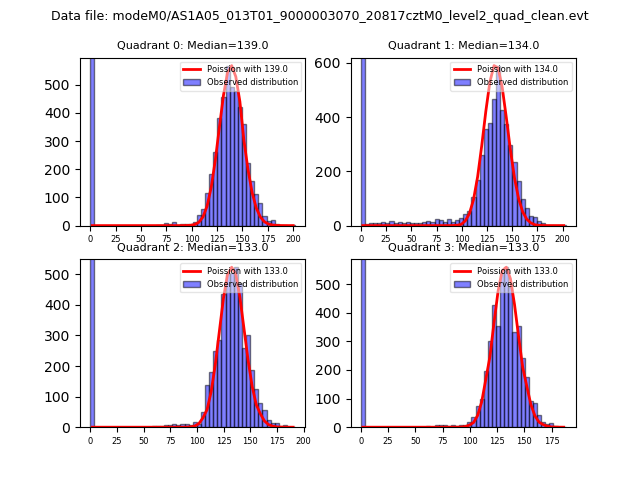

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

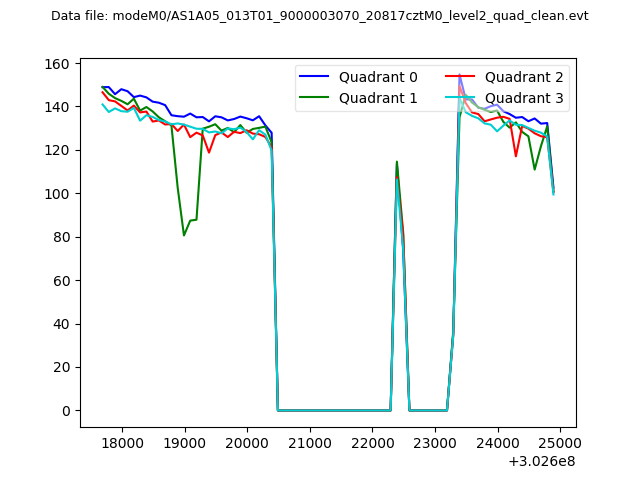

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
