| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20819cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20819cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,976,320 | 101,957,760 |
| Size | 507.3 MB | 97.2 MB |
| Events in quadrant A | 3,266,656 | 671,792 |
| Events in quadrant B | 3,747,204 | 657,808 |
| Events in quadrant C | 3,351,558 | 643,132 |
| Events in quadrant D | 5,271,522 | 628,153 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14356 | 1 |
| B | 0 | 15612 | 1 |
| C | 0 | 14610 | 1 |
| D | 0 | 20407 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6988 | 29 | 0.414997% |
| B | 6988 | 120 | 1.717230% |
| C | 6988 | 76 | 1.087579% |
| D | 6988 | 155 | 2.218088% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7208 | 6989 | 4 | 4 | 0.06% | 0.06% |  |
| B | 7208 | 6989 | 33 | 33 | 0.46% | 0.47% |  |
| C | 7208 | 6989 | 12 | 12 | 0.17% | 0.17% |  |
| D | 7208 | 6989 | 157 | 157 | 2.18% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 22505 | 126.86 | 844 | 827 | 170.9 |
| A | 0 | 226 | 7341 | 38.12 | 844 | 827 | 170.9 |
| A | 3 | 137 | 6824 | 35.1 | 844 | 827 | 170.9 |
| B | 7 | 220 | 119241 | 747.32 | 830 | 810 | 158.5 |
| B | 4 | 171 | 66421 | 414.02 | 830 | 810 | 158.5 |
| B | 0 | 219 | 63507 | 395.63 | 830 | 810 | 158.5 |
| C | 14 | 238 | 125989 | 677.05 | 796 | 802 | 184.9 |
| C | 9 | 54 | 119749 | 643.3 | 796 | 802 | 184.9 |
| C | 13 | 61 | 5681 | 26.39 | 796 | 802 | 184.9 |
| D | 1 | 20 | 798213 | 4040.68 | 812 | 788 | 197.3 |
| D | 1 | 52 | 623498 | 3155.37 | 812 | 788 | 197.3 |
| D | 1 | 239 | 307527 | 1554.3 | 812 | 788 | 197.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

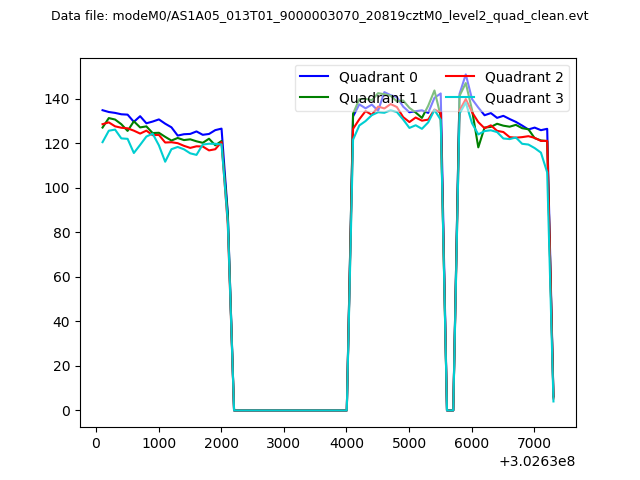

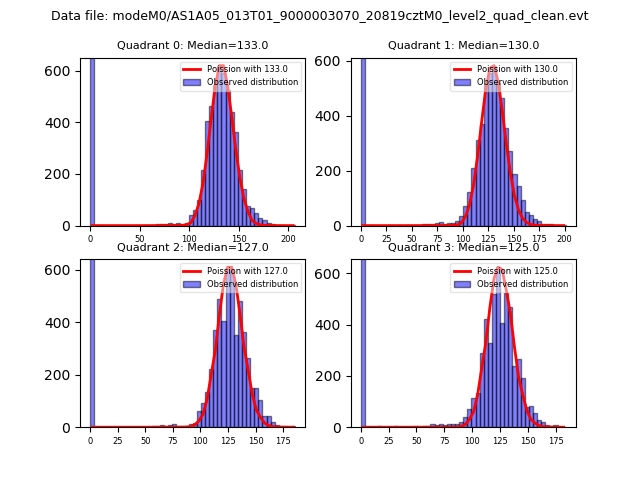

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

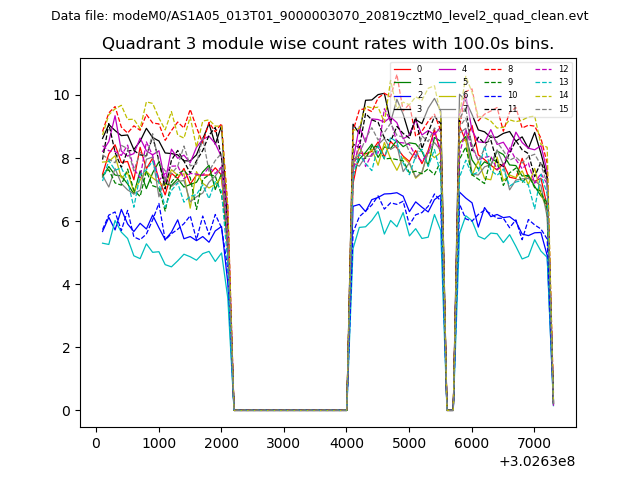

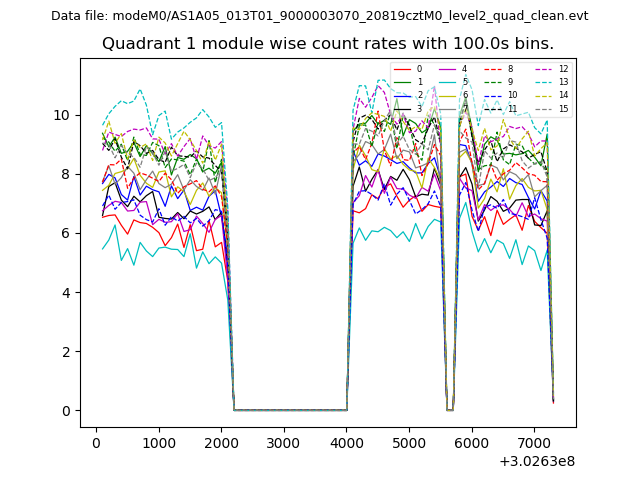

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

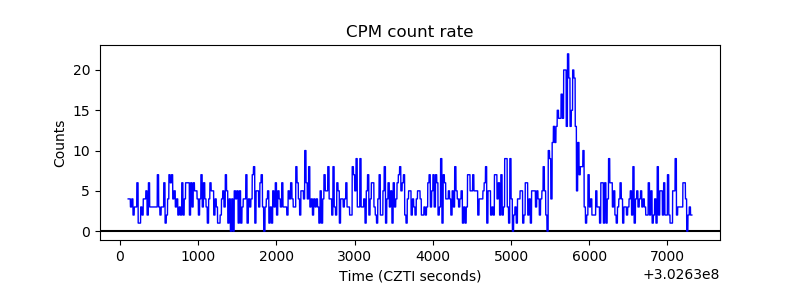

| _CPM_Rate |  |

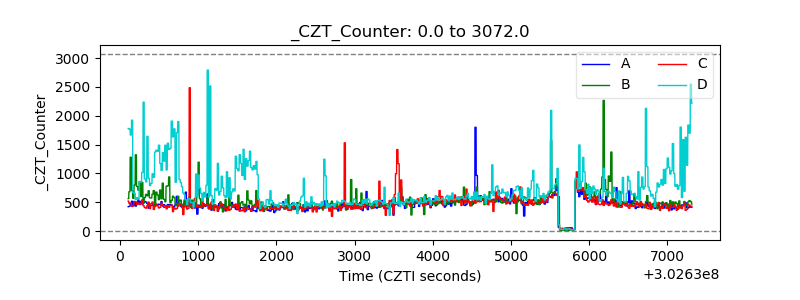

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

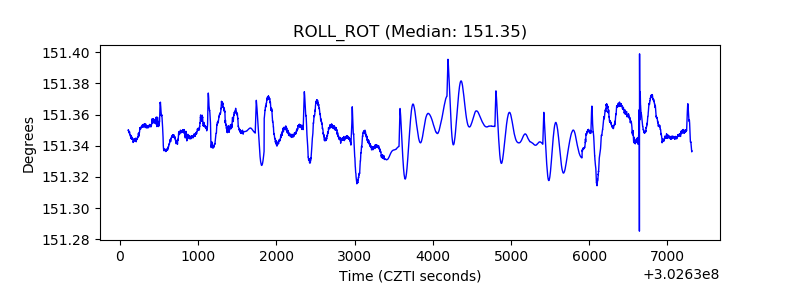

| _ROLL_ROT |  |

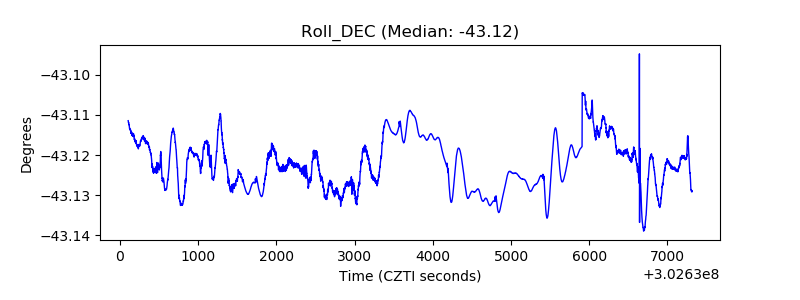

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
