| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20831cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20831cztM0_level2_quad_clean.evt |
| Size (bytes) | 857,666,880 | 91,123,200 |
| Size | 817.9 MB | 86.9 MB |
| Events in quadrant A | 3,091,431 | 677,732 |
| Events in quadrant B | 3,601,039 | 663,203 |
| Events in quadrant C | 3,093,451 | 647,390 |
| Events in quadrant D | 15,758,903 | 325,881 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13065 | 1 |
| B | 0 | 14574 | 1 |
| C | 0 | 13140 | 1 |
| D | 0 | 51133 | 5 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6346 | 56 | 0.882446% |
| B | 6347 | 71 | 1.118639% |
| C | 6347 | 65 | 1.024106% |
| D | 6346 | 6087 | 95.918689% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7321 | 6346 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7322 | 6347 | 21 | 21 | 0.29% | 0.33% |  |
| C | 7322 | 6348 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7320 | 6345 | 6002 | 6002 | 81.99% | 94.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7203 | 39.95 | 804 | 787 | 160.6 |
| A | 3 | 137 | 6256 | 34.06 | 804 | 787 | 160.6 |
| A | 12 | 194 | 5938 | 32.08 | 804 | 787 | 160.6 |
| B | 7 | 220 | 174968 | 1177.61 | 785 | 768 | 147.9 |
| B | 0 | 189 | 144962 | 974.77 | 785 | 768 | 147.9 |
| B | 0 | 219 | 65188 | 435.49 | 785 | 768 | 147.9 |
| C | 14 | 238 | 120014 | 685.71 | 756 | 762 | 173.9 |
| C | 3 | 233 | 22515 | 125.08 | 756 | 762 | 173.9 |
| C | 13 | 61 | 5422 | 26.8 | 756 | 762 | 173.9 |
| D | 1 | 52 | 13192980 | 113153.06 | 481 | 468 | 116.6 |
| D | 1 | 20 | 430637 | 3689.59 | 481 | 468 | 116.6 |
| D | 9 | 1 | 152701 | 1305.71 | 481 | 468 | 116.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

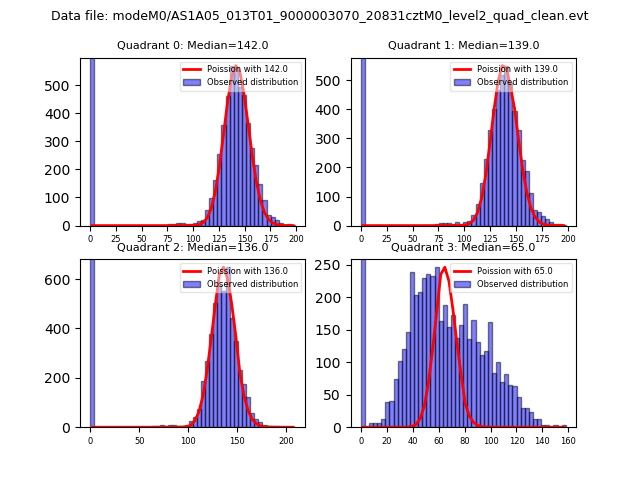

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

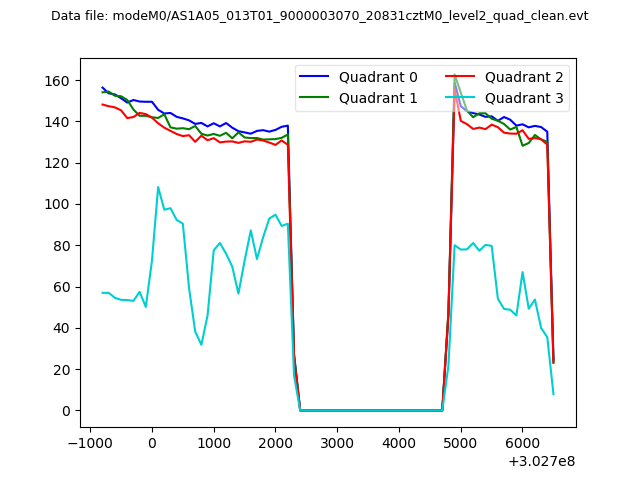

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

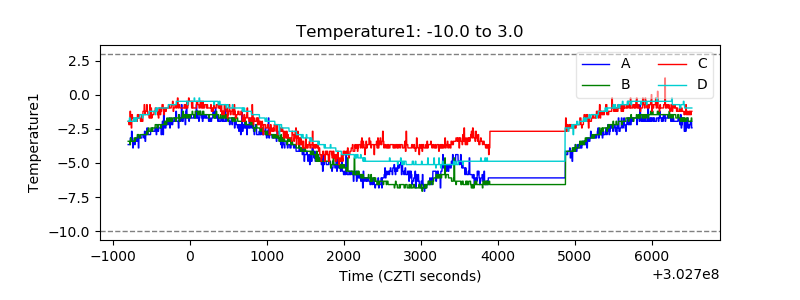

| Temperature 1 |  |

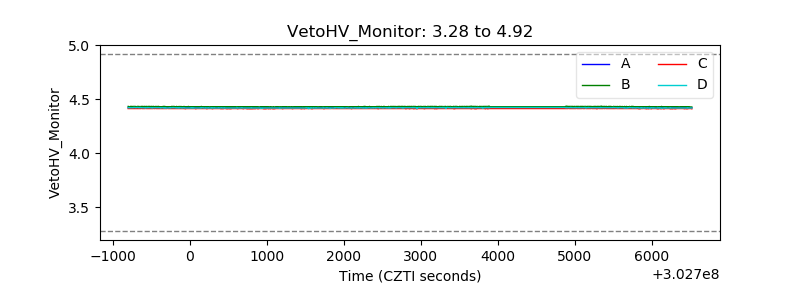

| Veto HV Monitor |  |

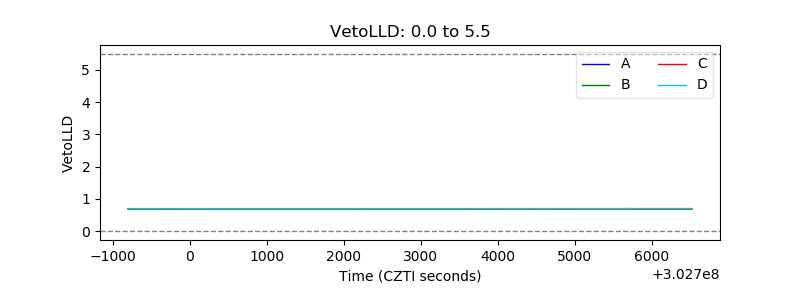

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

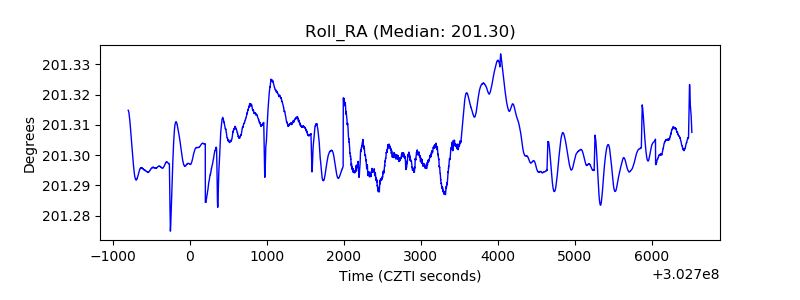

| _Roll_RA |  |
| Veto Counter |  |
