| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_013T01_9000003070_20832cztM0_level2.evt | modeM0/AS1A05_013T01_9000003070_20832cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,854,720 | 89,064,000 |
| Size | 594.0 MB | 84.9 MB |
| Events in quadrant A | 3,094,880 | 619,072 |
| Events in quadrant B | 3,864,560 | 602,565 |
| Events in quadrant C | 3,114,704 | 595,373 |
| Events in quadrant D | 8,347,756 | 425,269 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13429 | 1 |
| B | 0 | 15680 | 1 |
| C | 0 | 13485 | 1 |
| D | 0 | 29551 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6516 | 68 | 1.043585% |
| B | 6516 | 132 | 2.025783% |
| C | 6516 | 62 | 0.951504% |
| D | 6516 | 2065 | 31.691222% |

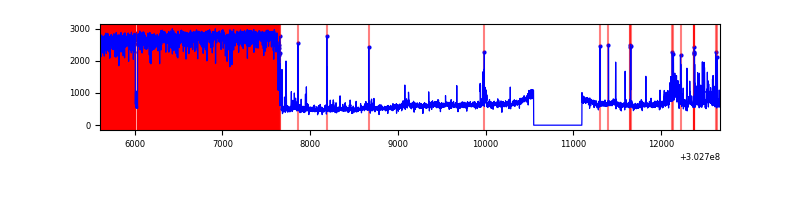

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7066 | 6516 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7066 | 6516 | 47 | 47 | 0.67% | 0.72% |  |
| C | 7066 | 6517 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7066 | 6517 | 2014 | 2014 | 28.50% | 30.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 11213 | 64.47 | 803 | 788 | 161.7 |
| A | 0 | 226 | 7187 | 39.58 | 803 | 788 | 161.7 |
| A | 3 | 137 | 6327 | 34.26 | 803 | 788 | 161.7 |
| B | 7 | 220 | 318641 | 2134.28 | 785 | 766 | 148.9 |
| B | 0 | 189 | 225267 | 1507.34 | 785 | 766 | 148.9 |
| B | 0 | 219 | 61765 | 409.56 | 785 | 766 | 148.9 |
| C | 14 | 238 | 119141 | 670.99 | 758 | 763 | 176.4 |
| C | 3 | 233 | 31445 | 173.91 | 758 | 763 | 176.4 |
| C | 9 | 54 | 5586 | 27.34 | 758 | 763 | 176.4 |
| D | 1 | 52 | 4768703 | 30212.39 | 657 | 637 | 157.8 |
| D | 1 | 20 | 649291 | 4110.13 | 657 | 637 | 157.8 |
| D | 9 | 1 | 197523 | 1247.55 | 657 | 637 | 157.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

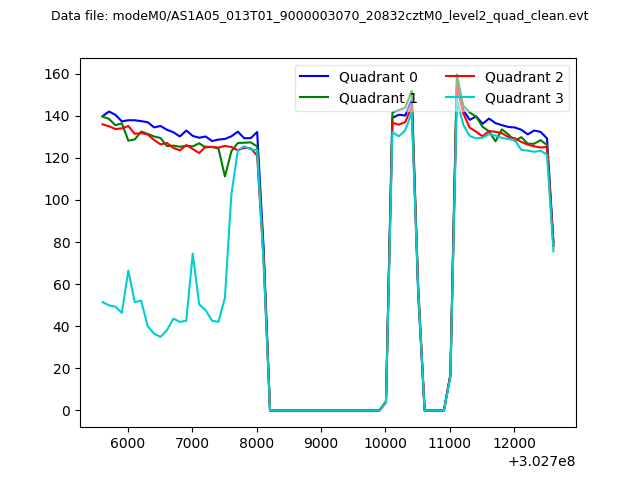

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

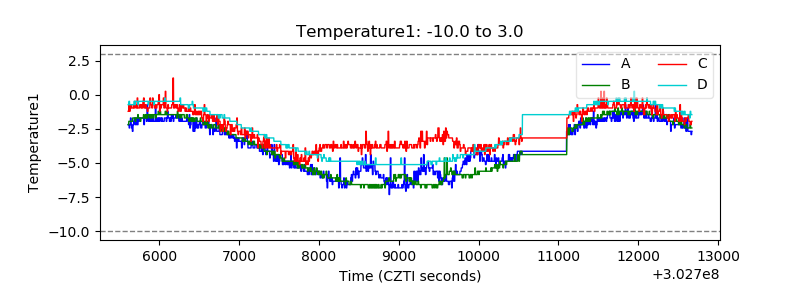

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

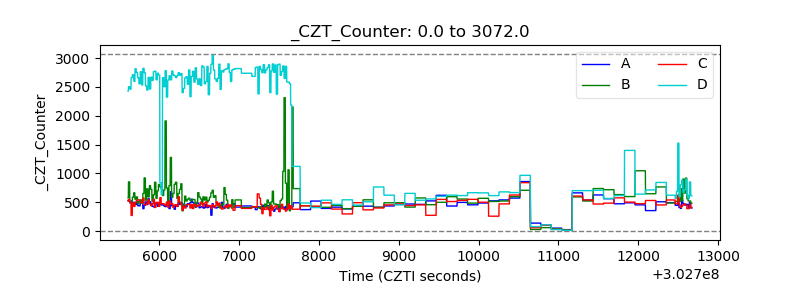

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

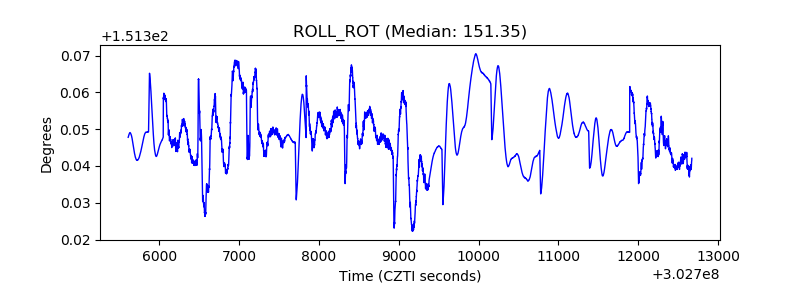

| _ROLL_ROT |  |

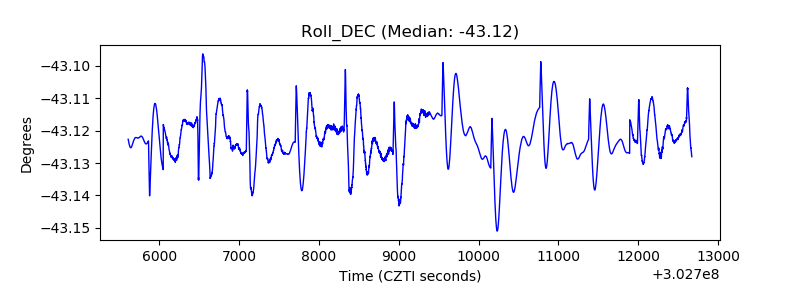

| _Roll_DEC |  |
| _Roll_RA |  |

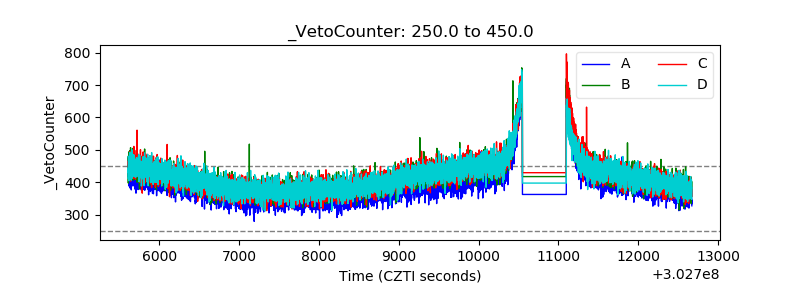

| Veto Counter |  |
