| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_160T01_9000003078_20872cztM0_level2.evt | modeM0/AS1A05_160T01_9000003078_20872cztM0_level2_quad_clean.evt |
| Size (bytes) | 563,999,040 | 85,389,120 |
| Size | 537.9 MB | 81.4 MB |
| Events in quadrant A | 3,438,856 | 558,437 |
| Events in quadrant B | 3,556,800 | 570,752 |
| Events in quadrant C | 3,356,665 | 521,643 |
| Events in quadrant D | 6,300,552 | 493,703 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13771 | 3 |
| B | 0 | 14273 | 3 |
| C | 0 | 13555 | 3 |
| D | 0 | 23171 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6312 | 55 | 0.871356% |
| B | 6313 | 90 | 1.425630% |
| C | 6313 | 76 | 1.203865% |
| D | 6313 | 811 | 12.846507% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7667 | 6314 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7668 | 6315 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7668 | 6315 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7668 | 6315 | 972 | 972 | 12.68% | 15.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 203 | 17981 | 97.7 | 890 | 875 | 175.1 |
| A | 0 | 226 | 7675 | 38.84 | 890 | 875 | 175.1 |
| A | 3 | 137 | 6920 | 34.53 | 890 | 875 | 175.1 |
| B | 3 | 64 | 49809 | 298.07 | 875 | 857 | 164.2 |
| B | 0 | 219 | 29891 | 176.79 | 875 | 857 | 164.2 |
| B | 0 | 229 | 27320 | 161.13 | 875 | 857 | 164.2 |
| C | 14 | 238 | 133757 | 700.06 | 824 | 832 | 189.9 |
| C | 9 | 54 | 9696 | 46.68 | 824 | 832 | 189.9 |
| C | 13 | 61 | 5720 | 25.74 | 824 | 832 | 189.9 |
| D | 1 | 20 | 2270616 | 11353.97 | 830 | 809 | 199.9 |
| D | 9 | 1 | 423635 | 2115.05 | 830 | 809 | 199.9 |
| D | 1 | 52 | 156586 | 779.22 | 830 | 809 | 199.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

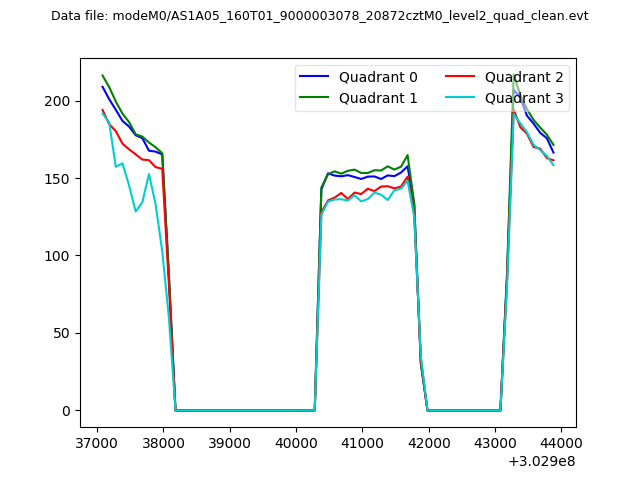

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

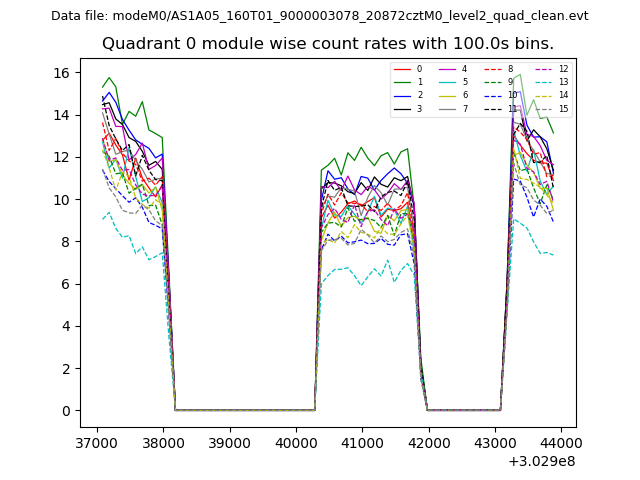

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

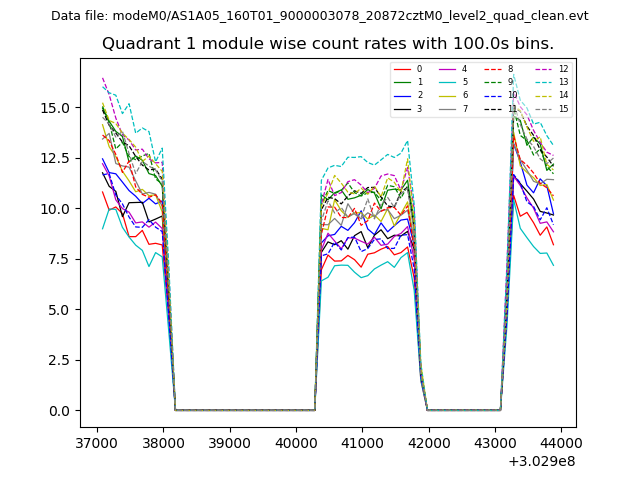

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

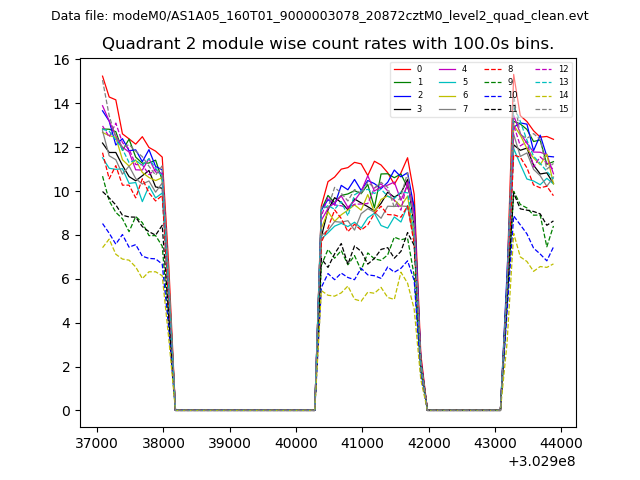

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

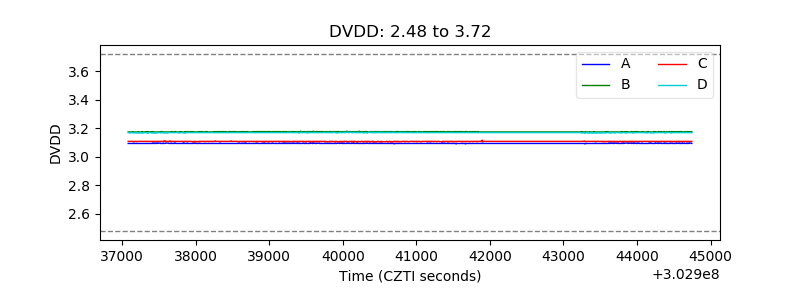

| D_VDD |  |

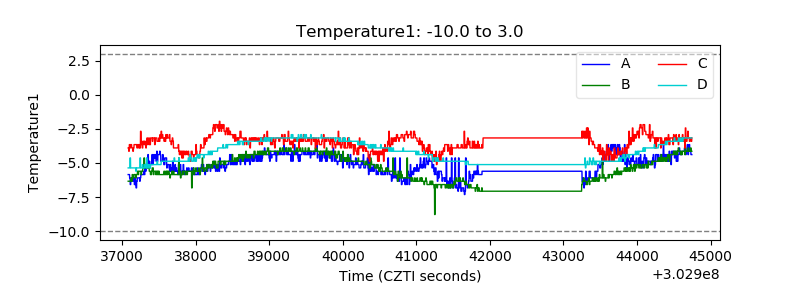

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

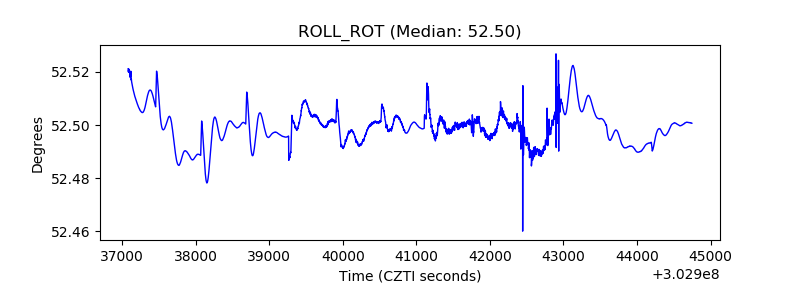

| _ROLL_ROT |  |

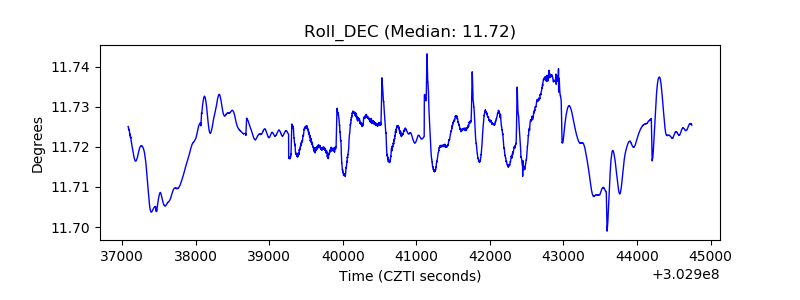

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
