| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_160T01_9000003078_20876cztM0_level2.evt | modeM0/AS1A05_160T01_9000003078_20876cztM0_level2_quad_clean.evt |
| Size (bytes) | 219,968,640 | 30,185,280 |
| Size | 209.8 MB | 28.8 MB |
| Events in quadrant A | 1,508,594 | 178,086 |
| Events in quadrant B | 1,608,831 | 181,238 |
| Events in quadrant C | 1,504,065 | 164,623 |
| Events in quadrant D | 1,824,075 | 165,201 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6433 | 1 |
| B | 0 | 6623 | 1 |
| C | 0 | 6413 | 1 |
| D | 0 | 7377 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3150 | 9 | 0.285714% |
| B | 3150 | 19 | 0.603175% |
| C | 3150 | 34 | 1.079365% |
| D | 3150 | 58 | 1.841270% |

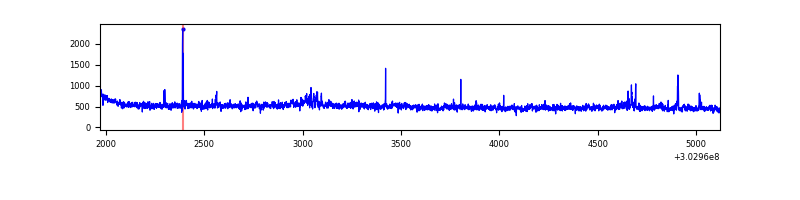

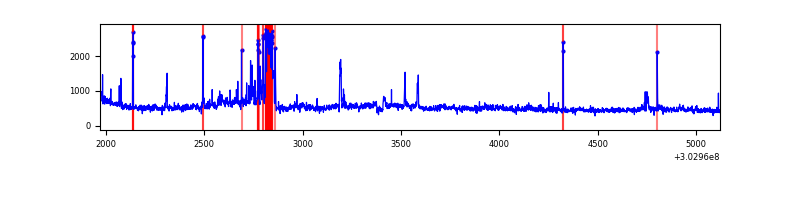

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3150 | 3150 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3150 | 3150 | 1 | 1 | 0.03% | 0.03% |  |
| C | 3150 | 3150 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3150 | 3150 | 50 | 50 | 1.59% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 3334 | 36.74 | 391 | 382 | 80.4 |
| A | 3 | 137 | 3290 | 36.19 | 391 | 382 | 80.4 |
| A | 0 | 226 | 3280 | 36.07 | 391 | 382 | 80.4 |
| B | 0 | 189 | 58857 | 773.03 | 388 | 378 | 75.6 |
| B | 3 | 64 | 14787 | 190.47 | 388 | 378 | 75.6 |
| B | 12 | 111 | 9134 | 115.74 | 388 | 378 | 75.6 |
| C | 14 | 238 | 59064 | 671.97 | 368 | 370 | 87.3 |
| C | 9 | 54 | 10014 | 110.41 | 368 | 370 | 87.3 |
| C | 13 | 61 | 2358 | 22.76 | 368 | 370 | 87.3 |
| D | 1 | 239 | 183766 | 2024.61 | 373 | 363 | 90.6 |
| D | 1 | 20 | 143989 | 1585.51 | 373 | 363 | 90.6 |
| D | 1 | 52 | 40056 | 438.18 | 373 | 363 | 90.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

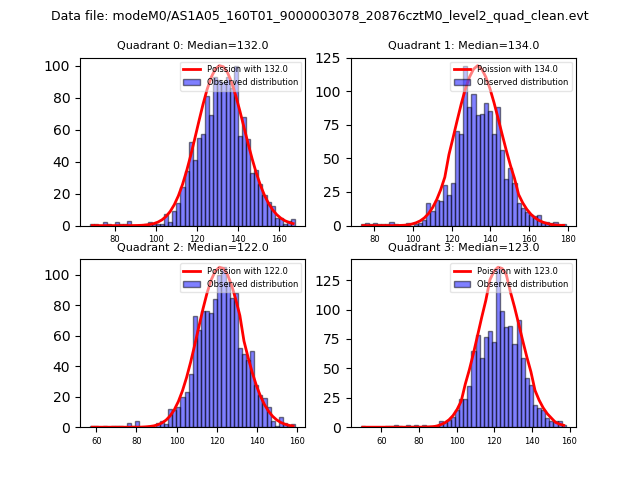

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

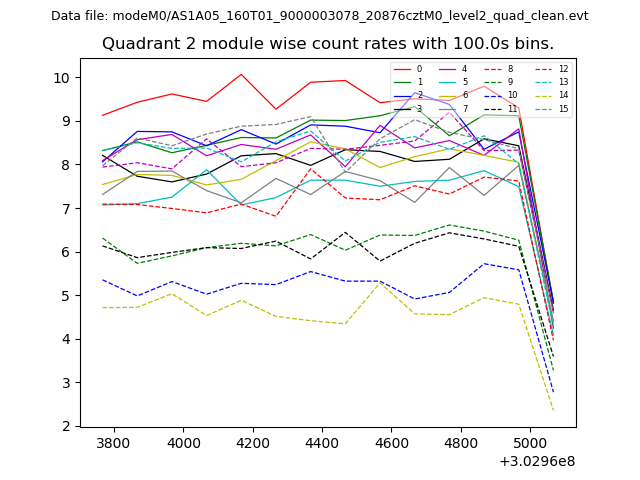

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

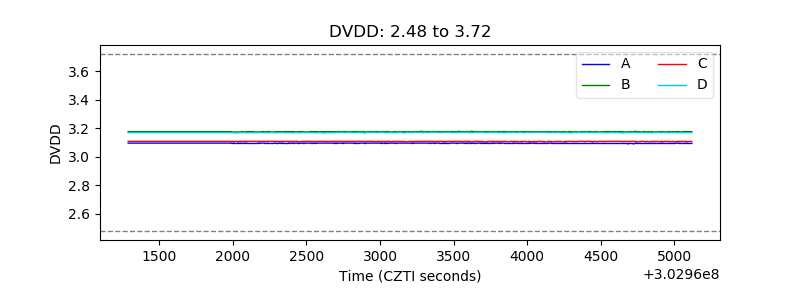

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

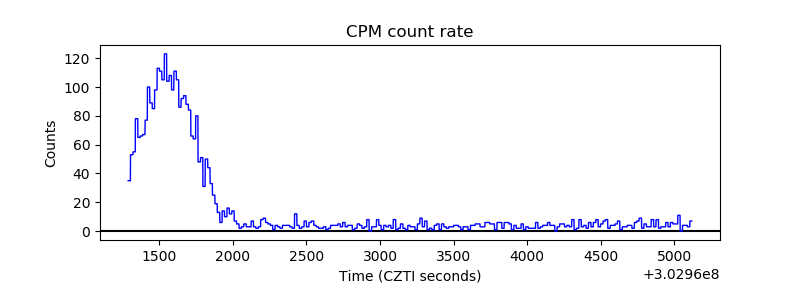

| _CPM_Rate |  |

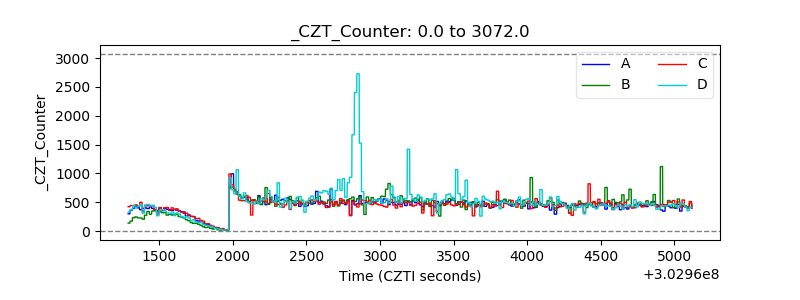

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

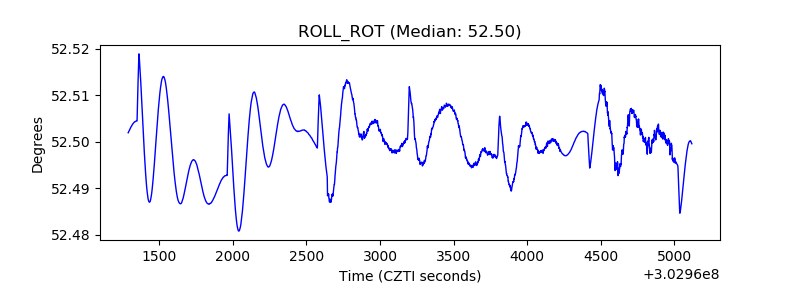

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
