| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T03_9000003080_20885cztM0_level2.evt | modeM0/AS1A06_002T03_9000003080_20885cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,573,709,760 | 272,908,800 |
| Size | 1.5 GB | 260.3 MB |
| Events in quadrant A | 10,401,589 | 1,725,052 |
| Events in quadrant B | 11,732,976 | 1,733,625 |
| Events in quadrant C | 10,668,436 | 1,694,008 |
| Events in quadrant D | 13,389,052 | 1,616,706 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 44 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44756 | 4 |
| B | 0 | 48745 | 4 |
| C | 0 | 45158 | 4 |
| D | 0 | 54244 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 444 | 0 |
| B | 0 | 444 | 0 |
| C | 0 | 444 | 0 |
| D | 0 | 444 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21731 | 83 | 0.381943% |
| B | 21732 | 244 | 1.122768% |
| C | 21732 | 211 | 0.970918% |
| D | 21732 | 759 | 3.492546% |

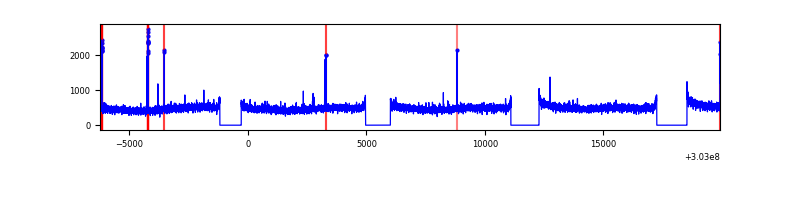

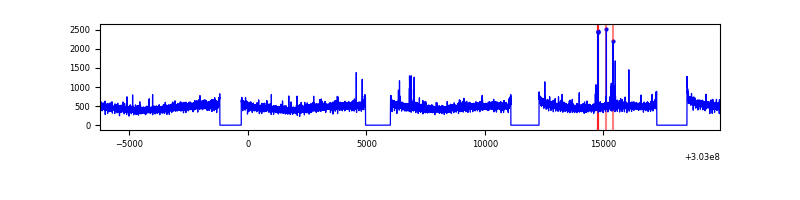

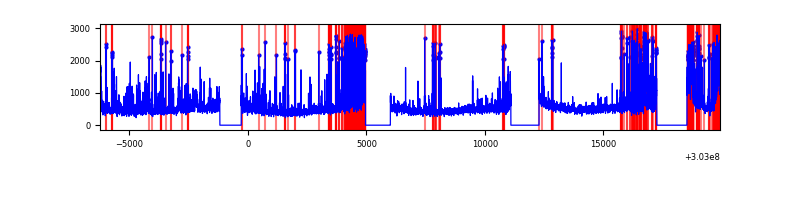

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26151 | 21733 | 5 | 5 | 0.02% | 0.02% |  |
| B | 26152 | 21732 | 66 | 66 | 0.25% | 0.30% |  |
| C | 26152 | 21736 | 25 | 25 | 0.10% | 0.12% |  |
| D | 26152 | 21736 | 657 | 657 | 2.51% | 3.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 73870 | 132.95 | 2680 | 2630 | 535.8 |
| A | 6 | 16 | 28508 | 48.3 | 2680 | 2630 | 535.8 |
| A | 0 | 226 | 22642 | 37.35 | 2680 | 2630 | 535.8 |
| B | 7 | 220 | 457729 | 912.4 | 2677 | 2614 | 498.8 |
| B | 0 | 189 | 309408 | 615.05 | 2677 | 2614 | 498.8 |
| B | 0 | 197 | 108494 | 212.26 | 2677 | 2614 | 498.8 |
| C | 14 | 238 | 412221 | 685.65 | 2583 | 2608 | 597.4 |
| C | 9 | 54 | 107423 | 175.45 | 2583 | 2608 | 597.4 |
| C | 10 | 91 | 48515 | 76.84 | 2583 | 2608 | 597.4 |
| D | 1 | 52 | 1273518 | 2039.54 | 2581 | 2513 | 623.2 |
| D | 1 | 239 | 1058273 | 1694.14 | 2581 | 2513 | 623.2 |
| D | 13 | 174 | 796333 | 1273.81 | 2581 | 2513 | 623.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

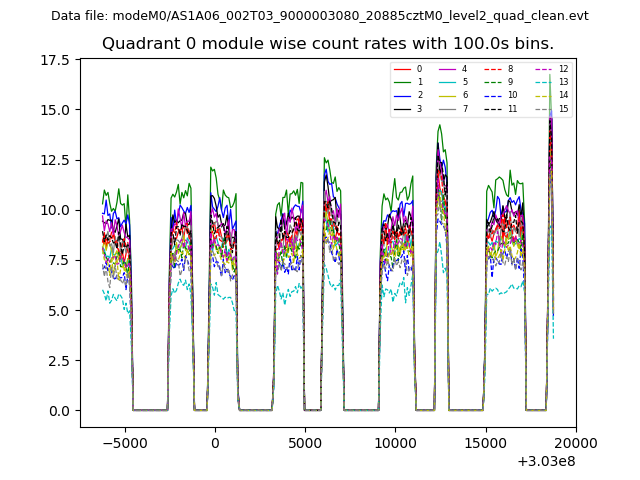

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

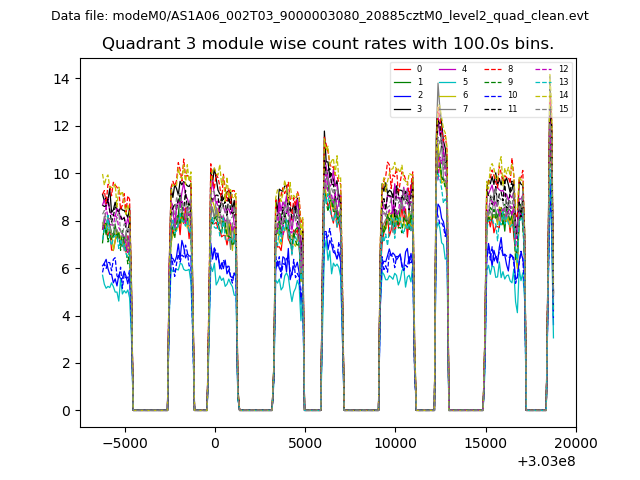

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

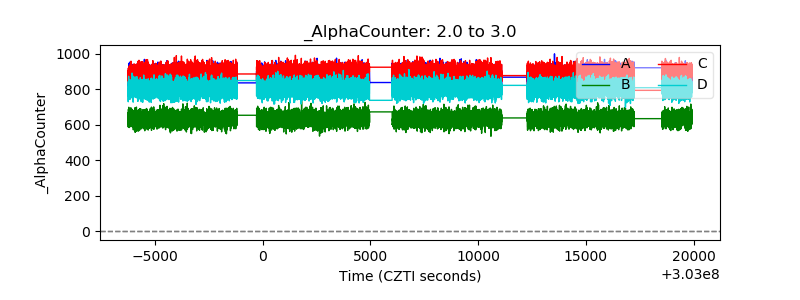

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

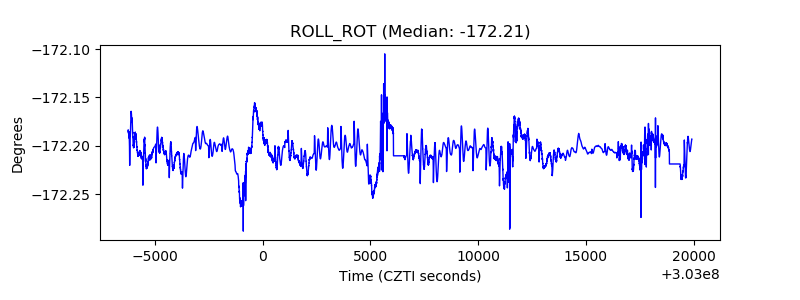

| _ROLL_ROT |  |

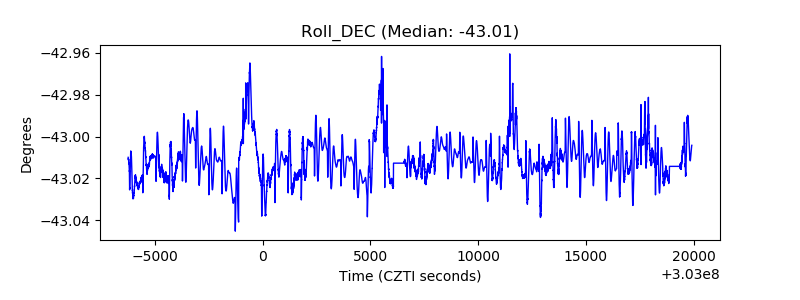

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
