| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T03_9000003080_20887cztM0_level2.evt | modeM0/AS1A06_002T03_9000003080_20887cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,514,240 | 71,049,600 |
| Size | 457.3 MB | 67.8 MB |
| Events in quadrant A | 3,268,625 | 437,025 |
| Events in quadrant B | 3,454,089 | 444,010 |
| Events in quadrant C | 3,366,031 | 434,706 |
| Events in quadrant D | 4,023,794 | 413,988 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13140 | 2 |
| B | 0 | 13907 | 2 |
| C | 0 | 13669 | 2 |
| D | 0 | 15526 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6037 | 98 | 1.623323% |
| B | 6037 | 145 | 2.401855% |
| C | 6037 | 169 | 2.799404% |
| D | 6037 | 269 | 4.455856% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

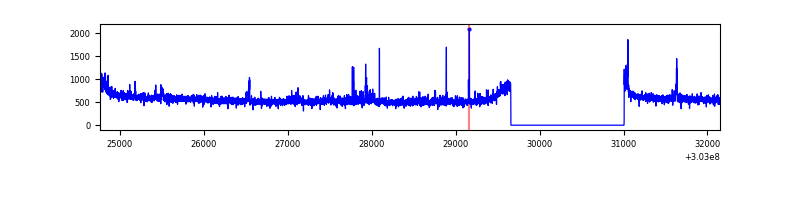

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7387 | 6038 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7387 | 6038 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7387 | 6038 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7387 | 6038 | 170 | 170 | 2.30% | 2.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7356 | 38.68 | 851 | 837 | 168.5 |
| A | 3 | 137 | 6278 | 32.29 | 851 | 837 | 168.5 |
| A | 12 | 194 | 6003 | 30.65 | 851 | 837 | 168.5 |
| B | 0 | 189 | 66061 | 419.96 | 847 | 829 | 155.3 |
| B | 0 | 230 | 26035 | 162.28 | 847 | 829 | 155.3 |
| B | 0 | 219 | 24907 | 155.01 | 847 | 829 | 155.3 |
| C | 14 | 238 | 133327 | 703.13 | 826 | 834 | 188.4 |
| C | 10 | 91 | 8221 | 39.2 | 826 | 834 | 188.4 |
| C | 13 | 61 | 5748 | 26.08 | 826 | 834 | 188.4 |
| D | 1 | 52 | 634185 | 3199.77 | 831 | 810 | 197.9 |
| D | 1 | 20 | 160076 | 804.6 | 831 | 810 | 197.9 |
| D | 13 | 174 | 48118 | 238.99 | 831 | 810 | 197.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

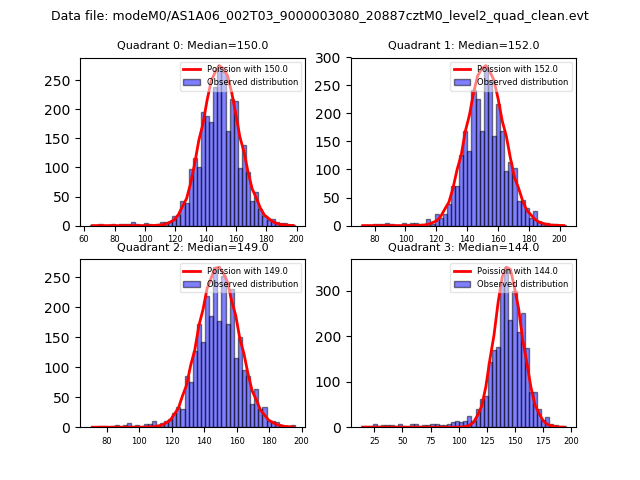

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

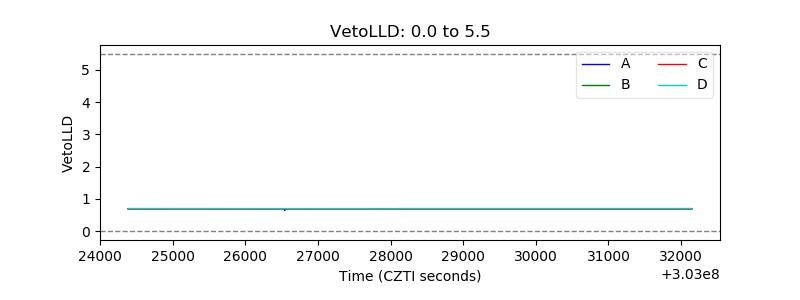

| Veto LLD |  |
| Alpha Counter |  |

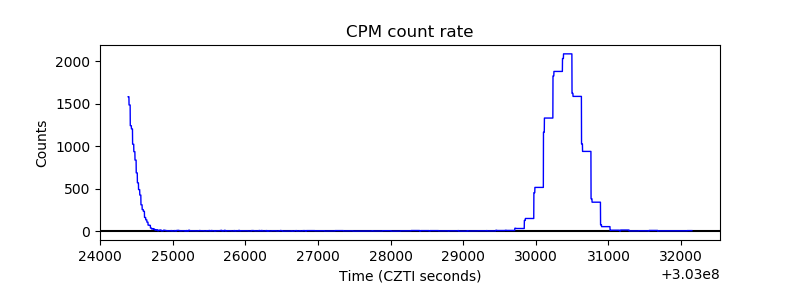

| _CPM_Rate |  |

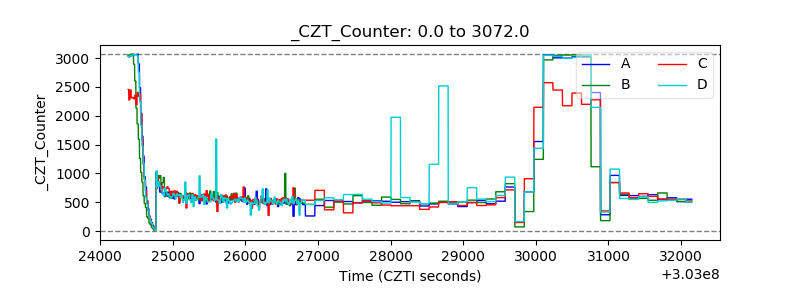

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

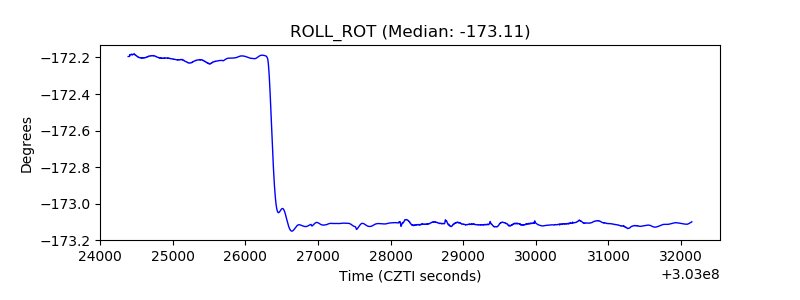

| _ROLL_ROT |  |

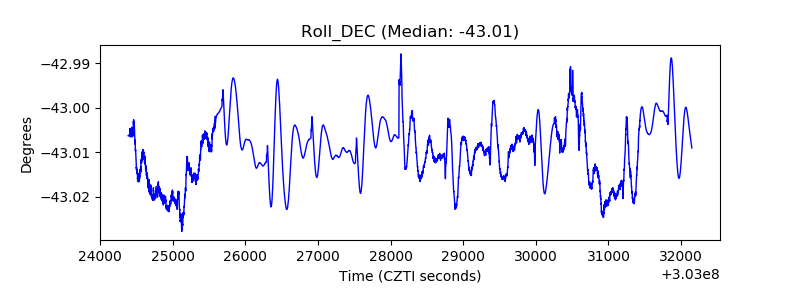

| _Roll_DEC |  |
| _Roll_RA |  |

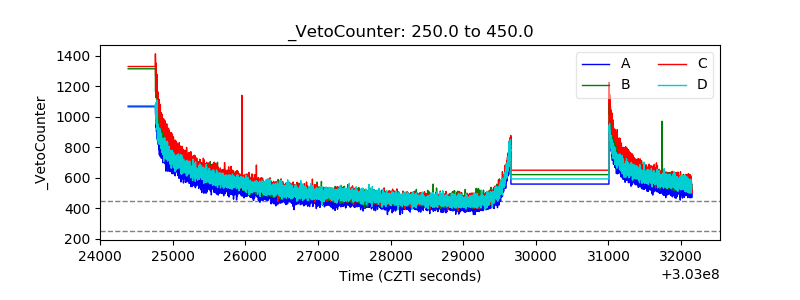

| Veto Counter |  |
