| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T03_9000003080_20892cztM0_level2.evt | modeM0/AS1A06_002T03_9000003080_20892cztM0_level2_quad_clean.evt |
| Size (bytes) | 733,844,160 | 109,160,640 |
| Size | 699.8 MB | 104.1 MB |
| Events in quadrant A | 3,926,048 | 713,121 |
| Events in quadrant B | 4,381,595 | 714,497 |
| Events in quadrant C | 4,178,230 | 700,104 |
| Events in quadrant D | 9,225,856 | 649,434 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16613 | 2 |
| B | 0 | 17924 | 3 |
| C | 0 | 17469 | 2 |
| D | 0 | 32889 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7595 | 153 | 2.014483% |
| B | 7595 | 161 | 2.119816% |
| C | 7595 | 309 | 4.068466% |
| D | 7595 | 752 | 9.901251% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

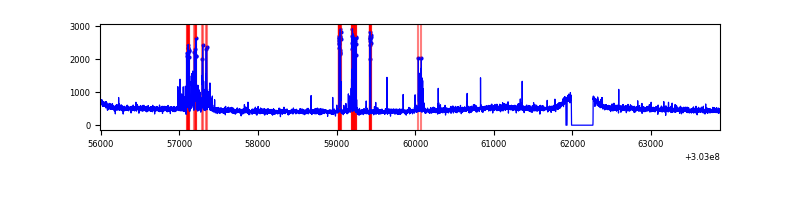

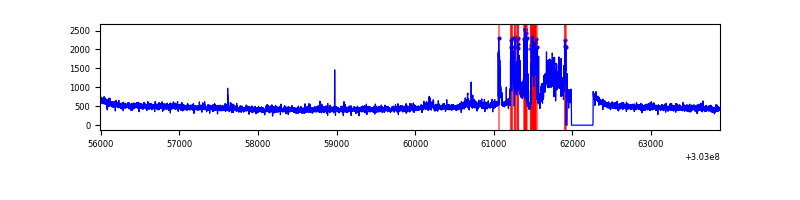

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7885 | 7596 | 67 | 67 | 0.85% | 0.88% |  |
| B | 7885 | 7597 | 47 | 47 | 0.60% | 0.62% |  |
| C | 7884 | 7595 | 59 | 59 | 0.75% | 0.78% |  |
| D | 7885 | 7597 | 712 | 712 | 9.03% | 9.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 348811 | 1856.47 | 930 | 909 | 187.4 |
| A | 0 | 226 | 8116 | 38.46 | 930 | 909 | 187.4 |
| A | 3 | 137 | 7762 | 36.57 | 930 | 909 | 187.4 |
| B | 7 | 220 | 432603 | 2422.71 | 924 | 902 | 178.2 |
| B | 3 | 64 | 89918 | 499.56 | 924 | 902 | 178.2 |
| B | 0 | 189 | 78967 | 438.1 | 924 | 902 | 178.2 |
| C | 9 | 54 | 605614 | 2935.39 | 880 | 888 | 206.0 |
| C | 14 | 238 | 137729 | 664.24 | 880 | 888 | 206.0 |
| C | 13 | 61 | 6244 | 26.0 | 880 | 888 | 206.0 |
| D | 12 | 235 | 3922836 | 18171.05 | 885 | 859 | 215.8 |
| D | 1 | 20 | 868012 | 4017.64 | 885 | 859 | 215.8 |
| D | 1 | 52 | 740101 | 3425.01 | 885 | 859 | 215.8 |

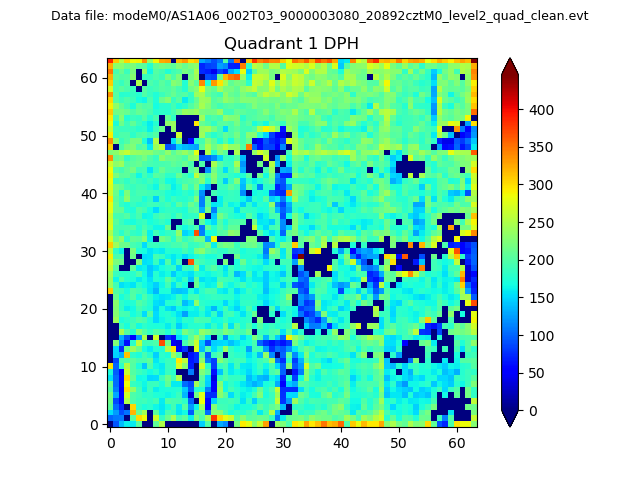

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

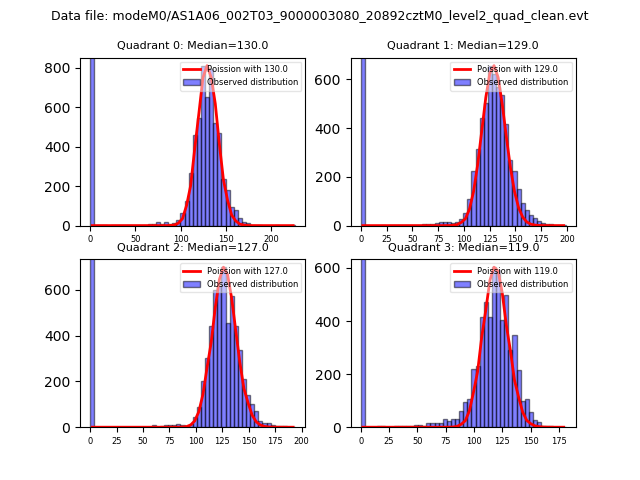

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

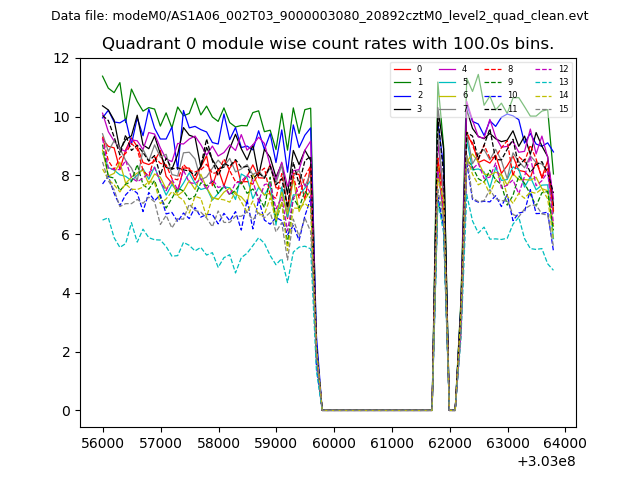

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

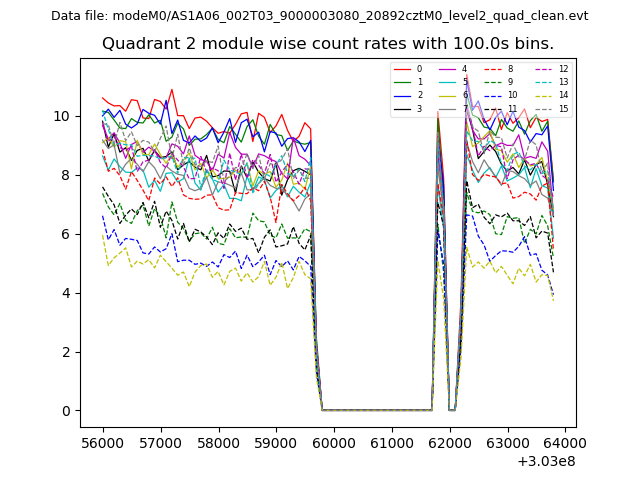

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

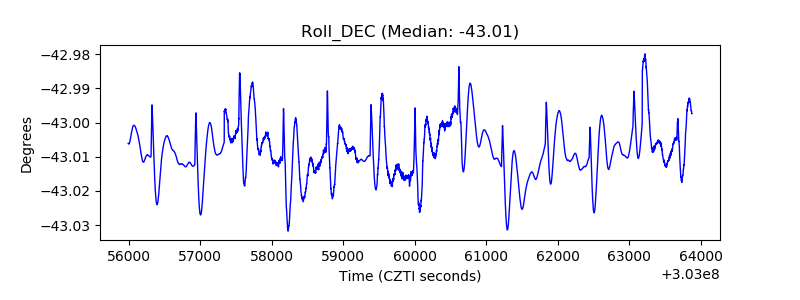

| _Roll_DEC |  |
| _Roll_RA |  |

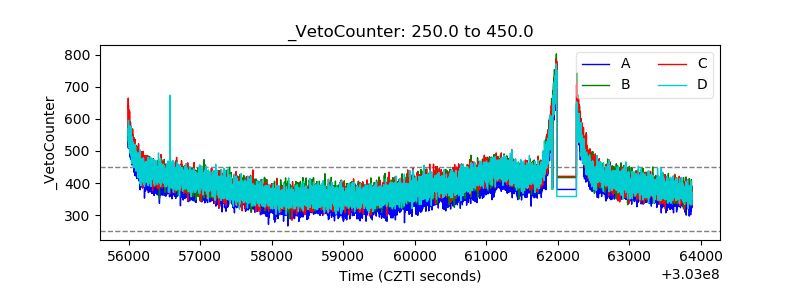

| Veto Counter |  |
