| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T03_9000003080_20902cztM0_level2.evt | modeM0/AS1A06_002T03_9000003080_20902cztM0_level2_quad_clean.evt |
| Size (bytes) | 499,556,160 | 72,103,680 |
| Size | 476.4 MB | 68.8 MB |
| Events in quadrant A | 3,296,891 | 442,726 |
| Events in quadrant B | 3,608,869 | 446,396 |
| Events in quadrant C | 3,349,805 | 442,110 |
| Events in quadrant D | 4,454,201 | 420,304 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13288 | 2 |
| B | 0 | 14356 | 2 |
| C | 0 | 13572 | 3 |
| D | 0 | 17011 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6184 | 30 | 0.485123% |
| B | 6184 | 103 | 1.665589% |
| C | 6183 | 79 | 1.277697% |
| D | 6183 | 175 | 2.830341% |

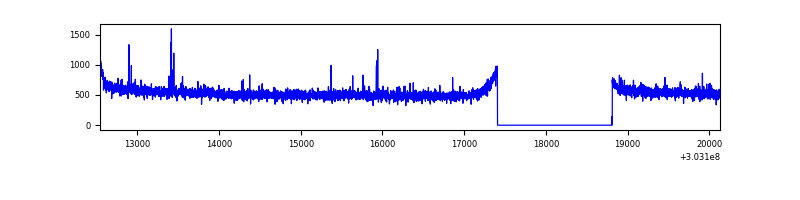

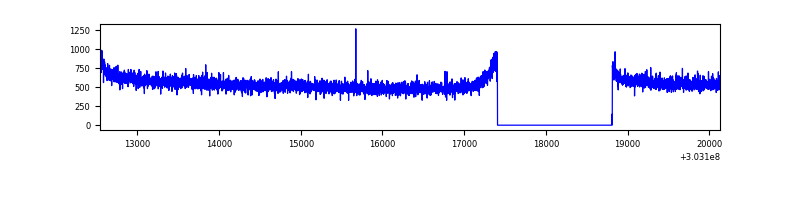

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7589 | 6185 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7589 | 6185 | 39 | 39 | 0.51% | 0.63% |  |
| C | 7588 | 6184 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7588 | 6184 | 169 | 169 | 2.23% | 2.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 49034 | 290.57 | 845 | 832 | 165.9 |
| A | 0 | 226 | 7316 | 39.09 | 845 | 832 | 165.9 |
| A | 3 | 137 | 6345 | 33.23 | 845 | 832 | 165.9 |
| B | 7 | 220 | 189795 | 1215.28 | 841 | 822 | 155.5 |
| B | 0 | 230 | 45586 | 287.88 | 841 | 822 | 155.5 |
| B | 3 | 64 | 37330 | 234.78 | 841 | 822 | 155.5 |
| C | 14 | 238 | 133078 | 708.3 | 823 | 833 | 186.7 |
| C | 13 | 61 | 5901 | 27.14 | 823 | 833 | 186.7 |
| C | 9 | 54 | 3938 | 16.63 | 823 | 833 | 186.7 |
| D | 1 | 239 | 1123074 | 5692.06 | 827 | 805 | 197.2 |
| D | 1 | 52 | 172647 | 871.57 | 827 | 805 | 197.2 |
| D | 2 | 234 | 28880 | 142.39 | 827 | 805 | 197.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

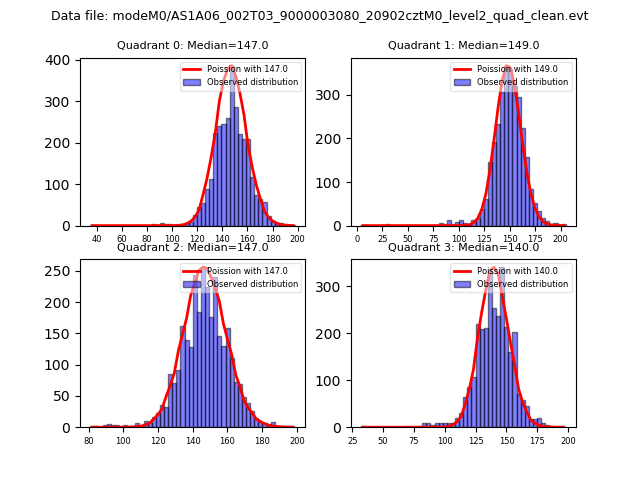

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

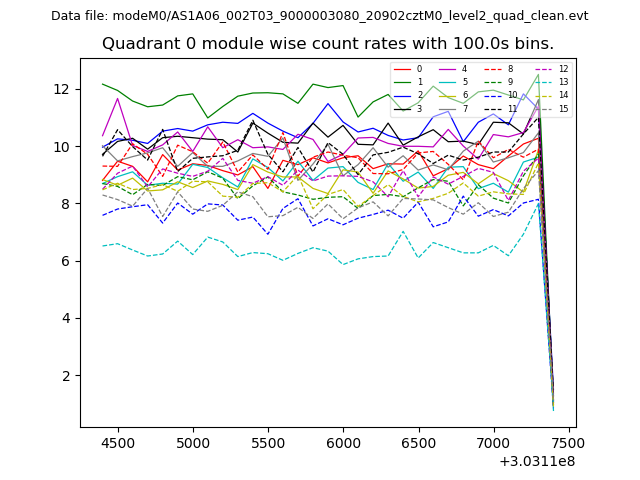

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

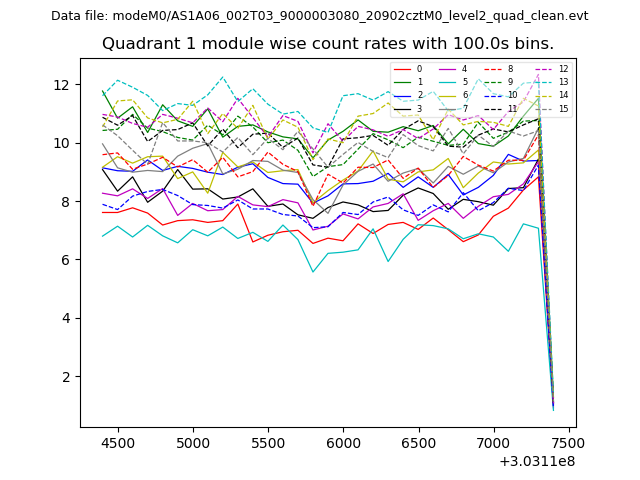

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

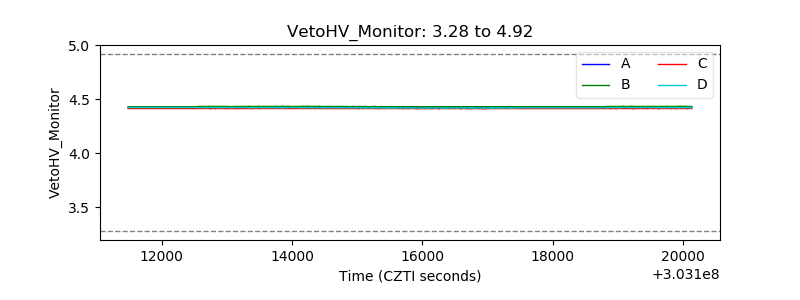

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

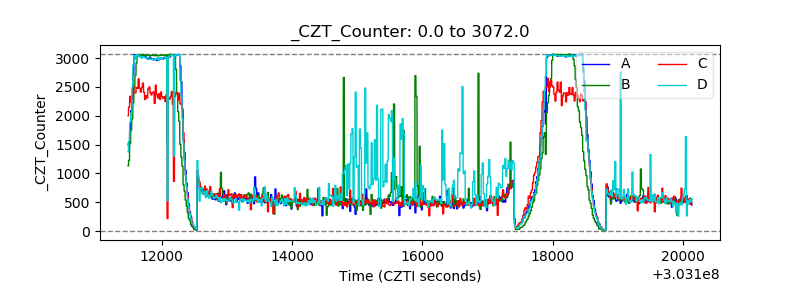

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

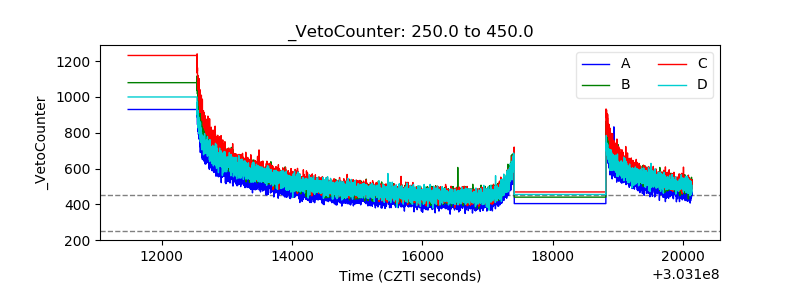

| Veto Counter |  |
