| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_002T03_9000003080_20904cztM0_level2.evt | modeM0/AS1A06_002T03_9000003080_20904cztM0_level2_quad_clean.evt |
| Size (bytes) | 651,214,080 | 93,271,680 |
| Size | 621.0 MB | 89.0 MB |
| Events in quadrant A | 3,354,610 | 608,560 |
| Events in quadrant B | 3,566,478 | 608,606 |
| Events in quadrant C | 3,386,869 | 599,622 |
| Events in quadrant D | 8,956,406 | 536,113 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14110 | 1 |
| B | 0 | 14645 | 1 |
| C | 0 | 14192 | 1 |
| D | 0 | 31284 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6767 | 131 | 1.935865% |
| B | 6767 | 164 | 2.423526% |
| C | 6767 | 168 | 2.482636% |
| D | 6767 | 1550 | 22.905276% |

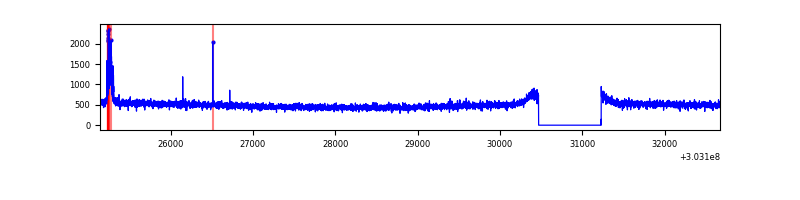

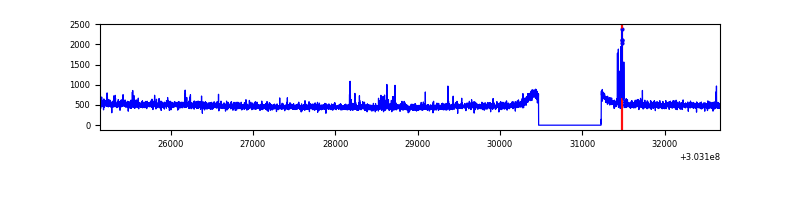

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7527 | 6768 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7527 | 6768 | 22 | 22 | 0.29% | 0.33% |  |
| C | 7527 | 6768 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7527 | 6768 | 1270 | 1270 | 16.87% | 18.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 80841 | 469.49 | 850 | 833 | 170.4 |
| A | 0 | 226 | 7341 | 38.19 | 850 | 833 | 170.4 |
| A | 3 | 137 | 6877 | 35.47 | 850 | 833 | 170.4 |
| B | 7 | 220 | 150547 | 940.39 | 842 | 823 | 159.2 |
| B | 3 | 64 | 48196 | 297.54 | 842 | 823 | 159.2 |
| B | 0 | 230 | 35826 | 219.85 | 842 | 823 | 159.2 |
| C | 14 | 238 | 131178 | 688.22 | 816 | 823 | 189.4 |
| C | 9 | 54 | 72672 | 379.33 | 816 | 823 | 189.4 |
| C | 13 | 61 | 5533 | 24.87 | 816 | 823 | 189.4 |
| D | 1 | 239 | 3985681 | 21389.72 | 772 | 751 | 186.3 |
| D | 1 | 52 | 1535119 | 8235.96 | 772 | 751 | 186.3 |
| D | 1 | 20 | 474197 | 2541.29 | 772 | 751 | 186.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

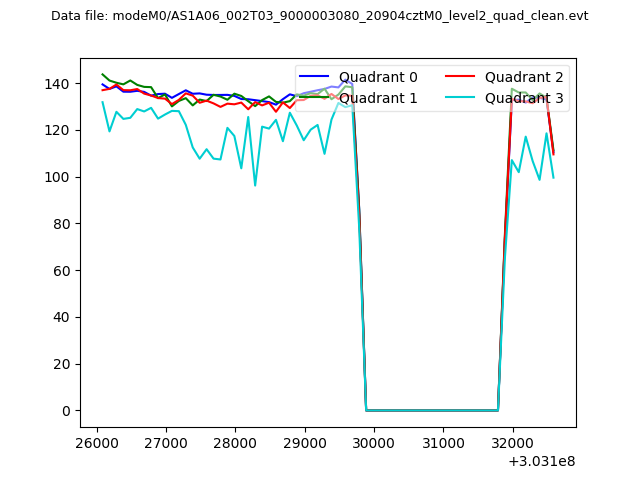

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

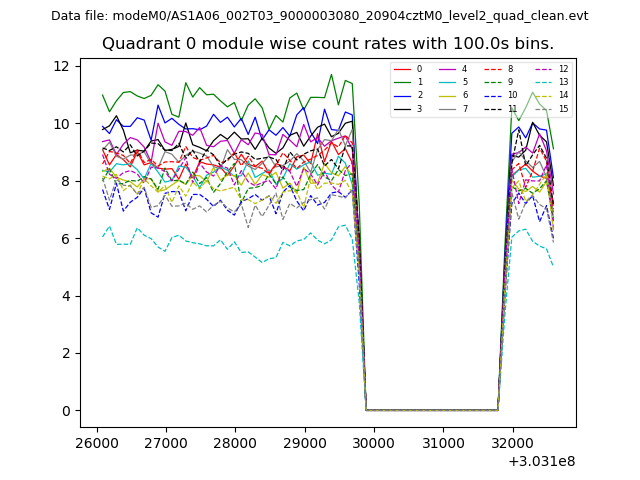

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

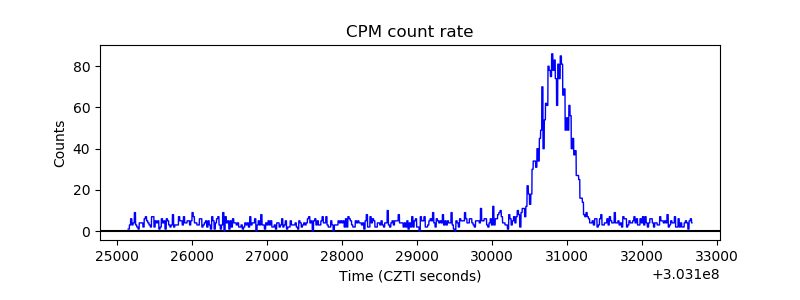

| _CPM_Rate |  |

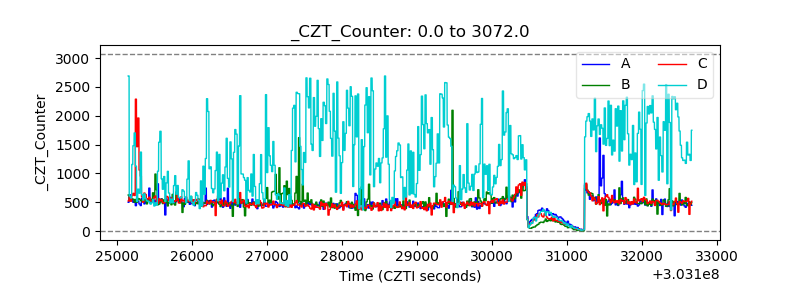

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

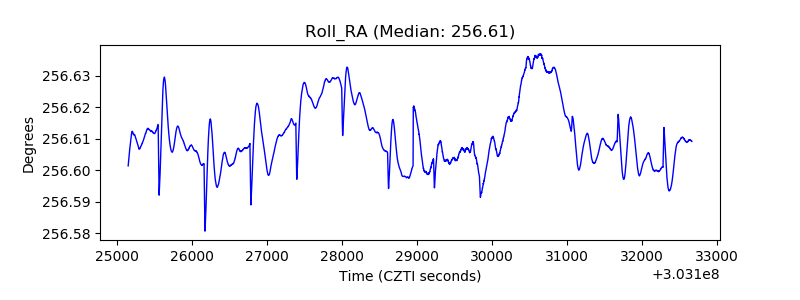

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
