| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C04_001T01_9000003082_20910cztM0_level2.evt | modeM0/AS1C04_001T01_9000003082_20910cztM0_level2_quad_clean.evt |
| Size (bytes) | 355,798,080 | 98,752,320 |
| Size | 339.3 MB | 94.2 MB |
| Events in quadrant A | 2,372,849 | 666,405 |
| Events in quadrant B | 2,630,965 | 663,973 |
| Events in quadrant C | 2,400,457 | 651,912 |
| Events in quadrant D | 3,011,177 | 638,650 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10703 | 1 |
| B | 0 | 11450 | 1 |
| C | 0 | 10705 | 1 |
| D | 0 | 12816 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5280 | 6 | 0.113636% |
| B | 5280 | 53 | 1.003788% |
| C | 5280 | 44 | 0.833333% |
| D | 5280 | 159 | 3.011364% |

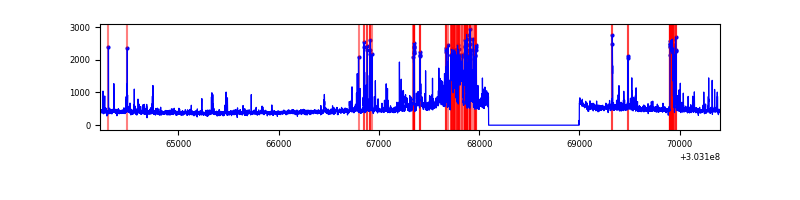

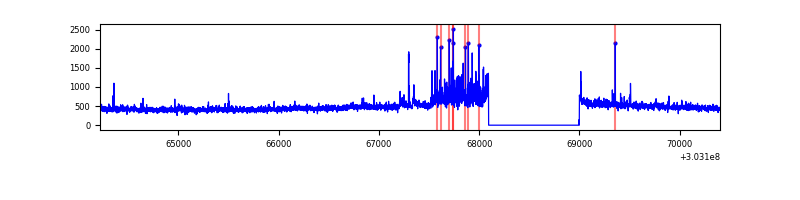

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6185 | 5281 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6185 | 5281 | 9 | 9 | 0.15% | 0.17% |  |
| C | 6185 | 5281 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6185 | 5281 | 115 | 115 | 1.86% | 2.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 6 | 16 | 9515 | 72.07 | 614 | 600 | 123.7 |
| A | 0 | 226 | 5352 | 38.41 | 614 | 600 | 123.7 |
| A | 3 | 137 | 4984 | 35.44 | 614 | 600 | 123.7 |
| B | 7 | 220 | 140575 | 1193.64 | 610 | 595 | 117.3 |
| B | 0 | 219 | 39682 | 333.3 | 610 | 595 | 117.3 |
| B | 12 | 111 | 13880 | 113.28 | 610 | 595 | 117.3 |
| C | 14 | 238 | 94060 | 673.41 | 591 | 592 | 138.8 |
| C | 13 | 61 | 4107 | 25.32 | 591 | 592 | 138.8 |
| C | 7 | 247 | 2148 | 11.21 | 591 | 592 | 138.8 |
| D | 1 | 52 | 730281 | 5084.78 | 593 | 576 | 143.5 |
| D | 2 | 234 | 25042 | 170.49 | 593 | 576 | 143.5 |
| D | 1 | 20 | 13252 | 88.33 | 593 | 576 | 143.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

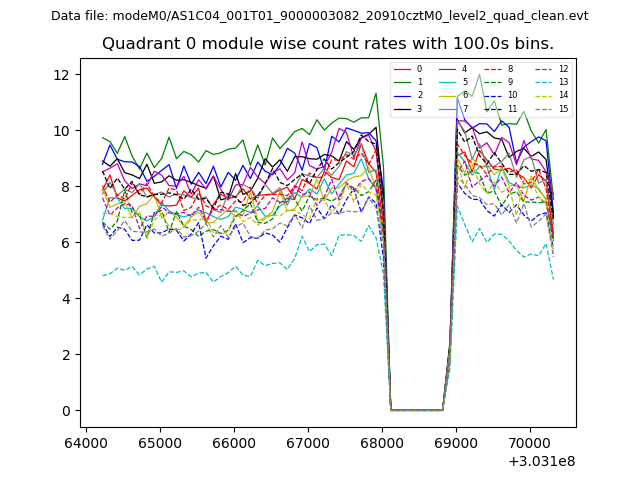

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

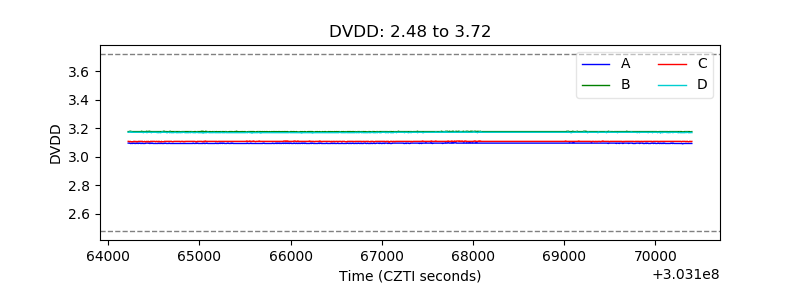

| D_VDD |  |

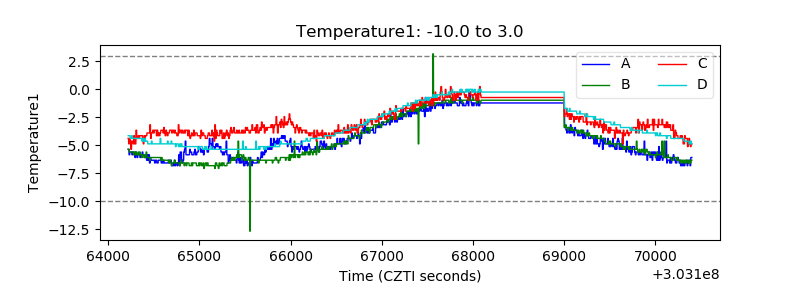

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

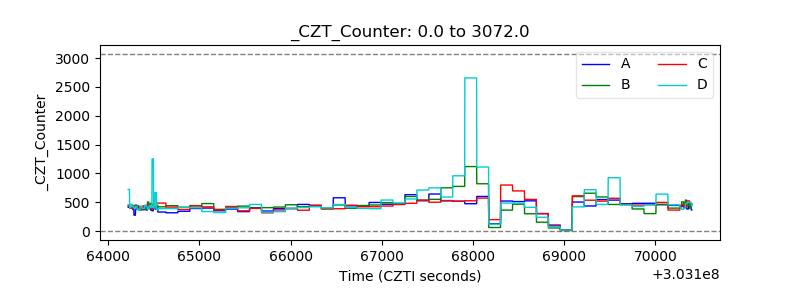

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

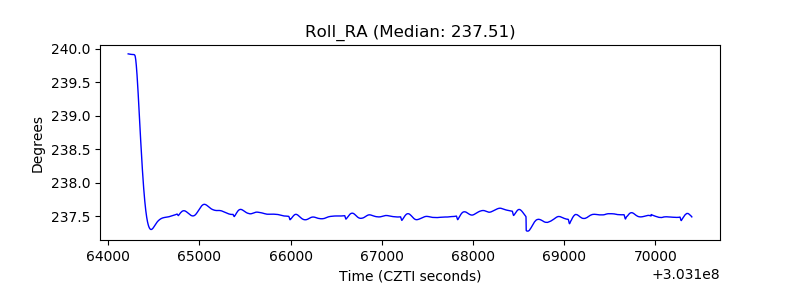

| _Roll_RA |  |
| Veto Counter |  |
