| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_025T17_9000003084_20931cztM0_level2.evt | modeM0/AS1A05_025T17_9000003084_20931cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,260,480 | 97,583,040 |
| Size | 410.3 MB | 93.1 MB |
| Events in quadrant A | 2,968,585 | 638,964 |
| Events in quadrant B | 3,365,976 | 646,385 |
| Events in quadrant C | 3,072,470 | 639,029 |
| Events in quadrant D | 3,224,830 | 621,166 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12157 | 1 |
| B | 0 | 13424 | 1 |
| C | 0 | 12486 | 1 |
| D | 0 | 13030 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5858 | 104 | 1.775350% |
| B | 5859 | 172 | 2.935655% |
| C | 5859 | 164 | 2.799112% |
| D | 5859 | 122 | 2.082267% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7148 | 5859 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7149 | 5860 | 28 | 28 | 0.39% | 0.48% |  |
| C | 7149 | 5860 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7149 | 5860 | 21 | 21 | 0.29% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6772 | 39.34 | 772 | 760 | 152.8 |
| A | 3 | 137 | 5612 | 31.75 | 772 | 760 | 152.8 |
| A | 12 | 194 | 5524 | 31.17 | 772 | 760 | 152.8 |
| B | 7 | 220 | 140253 | 991.45 | 768 | 750 | 140.7 |
| B | 0 | 190 | 83187 | 585.88 | 768 | 750 | 140.7 |
| B | 0 | 229 | 66522 | 467.44 | 768 | 750 | 140.7 |
| C | 14 | 238 | 120620 | 700.06 | 752 | 759 | 171.2 |
| C | 10 | 91 | 9375 | 50.32 | 752 | 759 | 171.2 |
| C | 7 | 247 | 8211 | 43.52 | 752 | 759 | 171.2 |
| D | 1 | 52 | 243708 | 1352.85 | 758 | 739 | 179.6 |
| D | 1 | 20 | 50655 | 277.93 | 758 | 739 | 179.6 |
| D | 5 | 222 | 27490 | 148.95 | 758 | 739 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

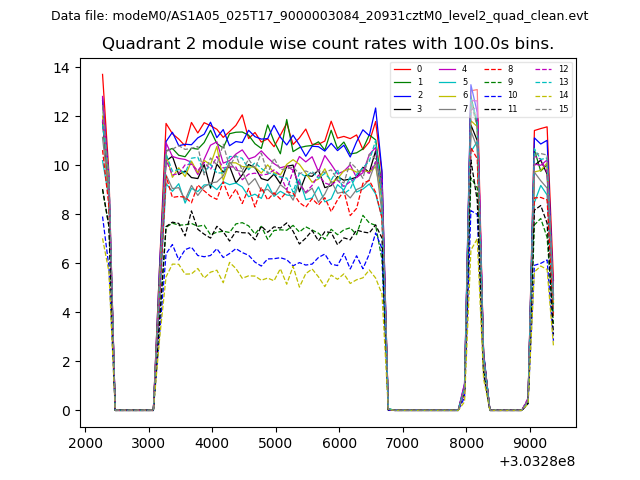

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

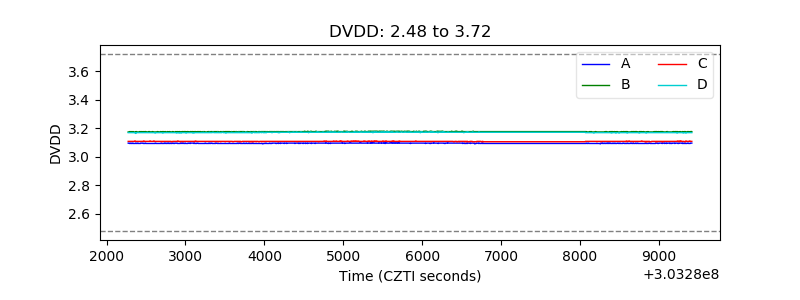

| D_VDD |  |
| Temperature 1 |  |

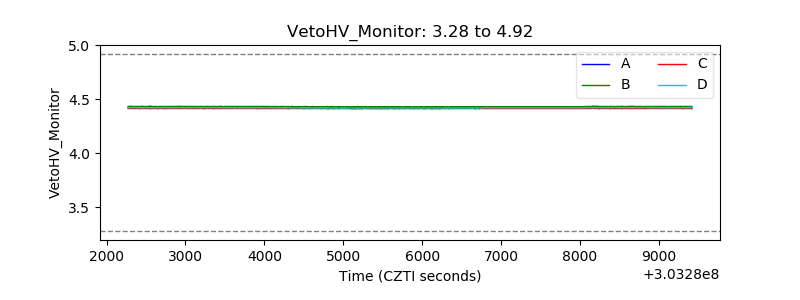

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

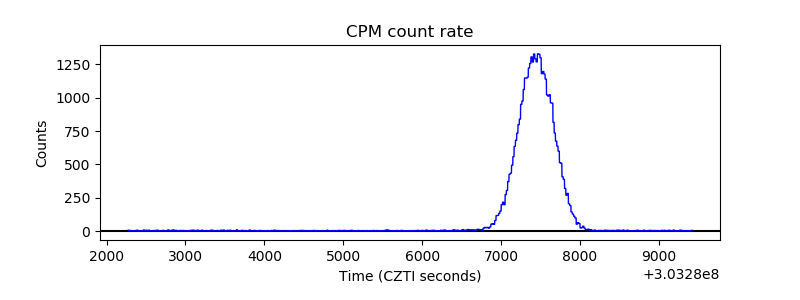

| _CPM_Rate |  |

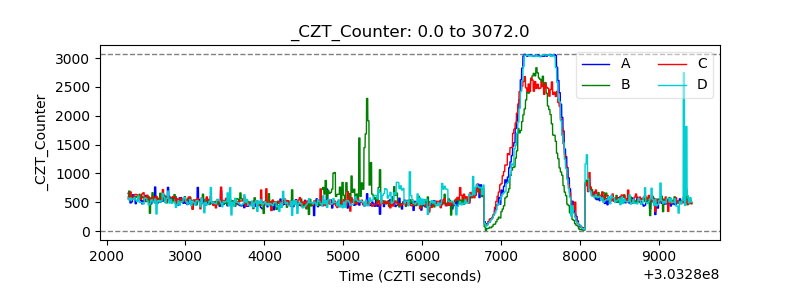

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
