| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_025T17_9000003084_20932cztM0_level2.evt | modeM0/AS1A05_025T17_9000003084_20932cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,822,400 | 105,163,200 |
| Size | 440.4 MB | 100.3 MB |
| Events in quadrant A | 3,067,651 | 692,209 |
| Events in quadrant B | 3,526,431 | 696,974 |
| Events in quadrant C | 3,165,043 | 693,039 |
| Events in quadrant D | 3,801,173 | 665,149 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12861 | 1 |
| B | 0 | 14215 | 1 |
| C | 0 | 13090 | 1 |
| D | 0 | 15142 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6273 | 71 | 1.131835% |
| B | 6273 | 149 | 2.375259% |
| C | 6273 | 126 | 2.008608% |
| D | 6273 | 196 | 3.124502% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7423 | 6274 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7423 | 6274 | 35 | 35 | 0.47% | 0.56% |  |
| C | 7423 | 6274 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7423 | 6274 | 140 | 140 | 1.89% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7017 | 39.51 | 798 | 783 | 157.8 |
| A | 3 | 137 | 6090 | 33.64 | 798 | 783 | 157.8 |
| A | 12 | 194 | 5886 | 32.34 | 798 | 783 | 157.8 |
| B | 7 | 220 | 249619 | 1688.99 | 791 | 772 | 147.3 |
| B | 0 | 229 | 56945 | 381.26 | 791 | 772 | 147.3 |
| B | 0 | 219 | 37132 | 246.78 | 791 | 772 | 147.3 |
| C | 14 | 238 | 123288 | 695.27 | 774 | 780 | 176.2 |
| C | 7 | 247 | 12498 | 66.5 | 774 | 780 | 176.2 |
| C | 10 | 91 | 9790 | 51.13 | 774 | 780 | 176.2 |
| D | 9 | 1 | 482665 | 2573.55 | 779 | 757 | 187.3 |
| D | 1 | 52 | 321823 | 1714.6 | 779 | 757 | 187.3 |
| D | 1 | 20 | 29387 | 152.89 | 779 | 757 | 187.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

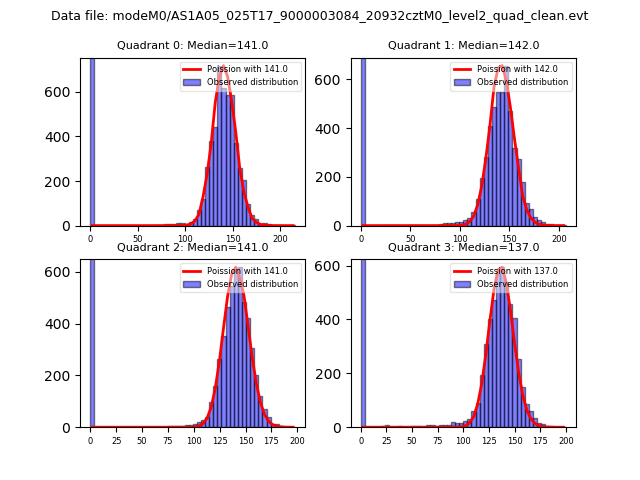

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
