| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T05_9000003088_20939cztM0_level2.evt | modeM0/AS1A05_088T05_9000003088_20939cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,476,800 | 89,913,600 |
| Size | 483.0 MB | 85.7 MB |
| Events in quadrant A | 3,155,612 | 579,602 |
| Events in quadrant B | 3,471,209 | 582,780 |
| Events in quadrant C | 3,380,003 | 558,181 |
| Events in quadrant D | 4,866,079 | 524,153 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13935 | 2 |
| B | 0 | 14809 | 2 |
| C | 0 | 14346 | 2 |
| D | 0 | 19247 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6865 | 23 | 0.335033% |
| B | 6865 | 54 | 0.786599% |
| C | 6865 | 76 | 1.107065% |
| D | 6865 | 334 | 4.865259% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7755 | 6866 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7755 | 6866 | 7 | 7 | 0.09% | 0.10% |  |
| C | 7755 | 6866 | 15 | 15 | 0.19% | 0.22% |  |
| D | 7755 | 6866 | 313 | 313 | 4.04% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7104 | 38.22 | 820 | 802 | 164.9 |
| A | 3 | 137 | 6557 | 34.9 | 820 | 802 | 164.9 |
| A | 12 | 194 | 5905 | 30.95 | 820 | 802 | 164.9 |
| B | 7 | 220 | 138392 | 868.39 | 821 | 799 | 158.4 |
| B | 3 | 64 | 39820 | 246.27 | 821 | 799 | 158.4 |
| B | 0 | 229 | 31589 | 194.32 | 821 | 799 | 158.4 |
| C | 9 | 54 | 130648 | 697.79 | 791 | 798 | 186.1 |
| C | 14 | 238 | 123025 | 656.82 | 791 | 798 | 186.1 |
| C | 7 | 247 | 18119 | 93.08 | 791 | 798 | 186.1 |
| D | 7 | 238 | 974671 | 5093.1 | 781 | 757 | 191.2 |
| D | 9 | 1 | 434119 | 2266.27 | 781 | 757 | 191.2 |
| D | 5 | 222 | 187017 | 974.05 | 781 | 757 | 191.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

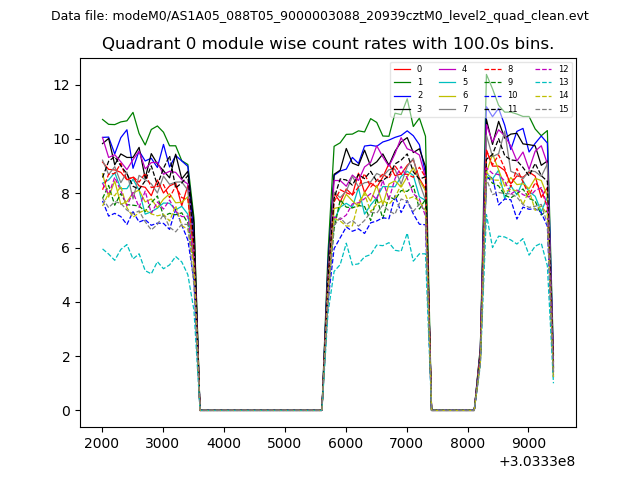

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

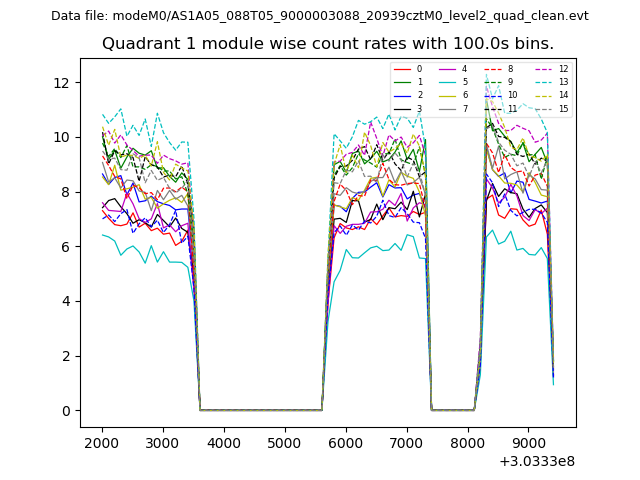

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

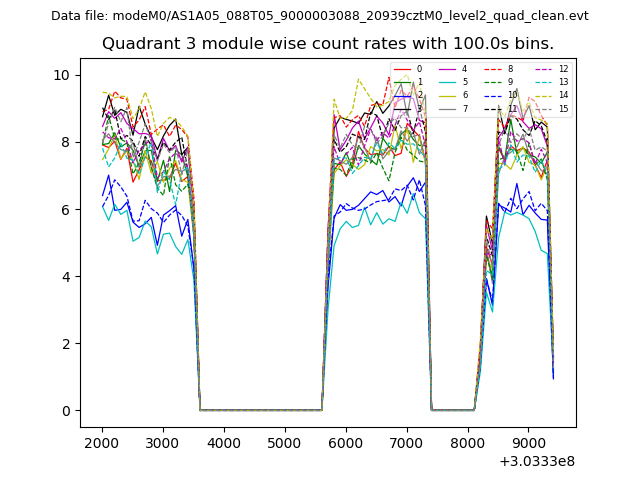

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

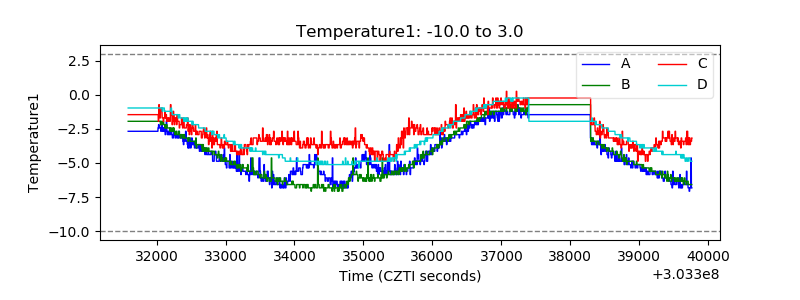

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

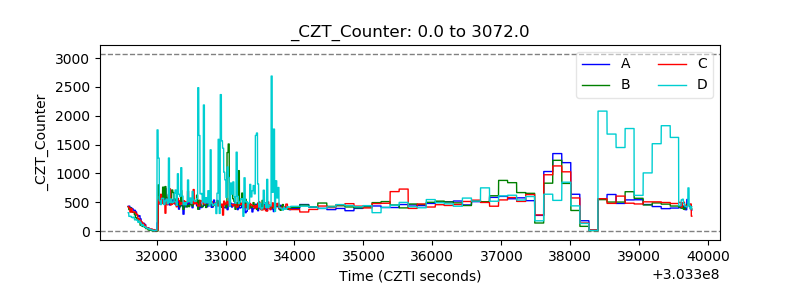

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

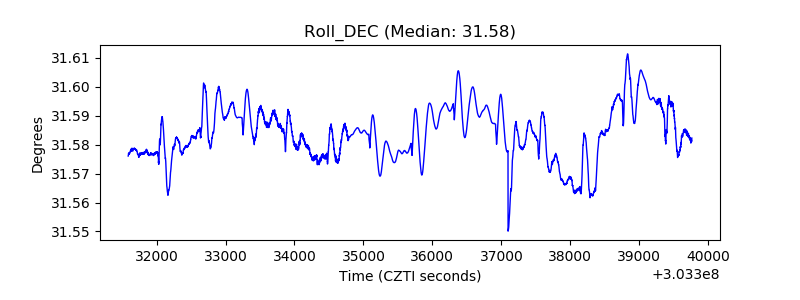

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
