| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T05_9000003088_20942cztM0_level2.evt | modeM0/AS1A05_088T05_9000003088_20942cztM0_level2_quad_clean.evt |
| Size (bytes) | 492,180,480 | 73,272,960 |
| Size | 469.4 MB | 69.9 MB |
| Events in quadrant A | 3,209,399 | 452,104 |
| Events in quadrant B | 3,400,469 | 460,009 |
| Events in quadrant C | 3,259,545 | 433,873 |
| Events in quadrant D | 4,591,256 | 415,282 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13612 | 2 |
| B | 0 | 14102 | 2 |
| C | 0 | 13721 | 2 |
| D | 0 | 18081 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6562 | 12 | 0.182871% |
| B | 6562 | 30 | 0.457178% |
| C | 6562 | 33 | 0.502895% |
| D | 6561 | 196 | 2.987349% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7767 | 6563 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7767 | 6563 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7767 | 6563 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7766 | 6562 | 193 | 193 | 2.49% | 2.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 8433 | 45.72 | 832 | 817 | 166.6 |
| A | 0 | 226 | 7161 | 38.08 | 832 | 817 | 166.6 |
| A | 3 | 137 | 6411 | 33.58 | 832 | 817 | 166.6 |
| B | 3 | 64 | 44073 | 274.72 | 838 | 819 | 157.5 |
| B | 0 | 230 | 34532 | 214.12 | 838 | 819 | 157.5 |
| B | 12 | 111 | 18309 | 111.08 | 838 | 819 | 157.5 |
| C | 14 | 238 | 125204 | 673.81 | 798 | 804 | 184.6 |
| C | 9 | 54 | 14653 | 75.01 | 798 | 804 | 184.6 |
| C | 3 | 233 | 7018 | 33.66 | 798 | 804 | 184.6 |
| D | 1 | 52 | 740390 | 3841.31 | 792 | 773 | 192.5 |
| D | 5 | 222 | 445376 | 2309.11 | 792 | 773 | 192.5 |
| D | 7 | 238 | 118726 | 612.61 | 792 | 773 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

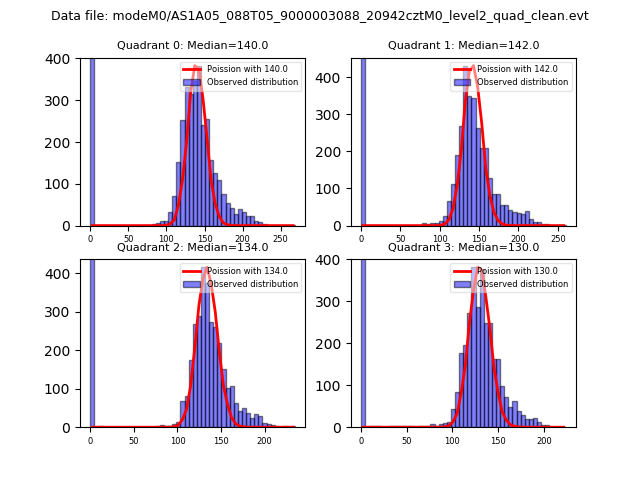

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

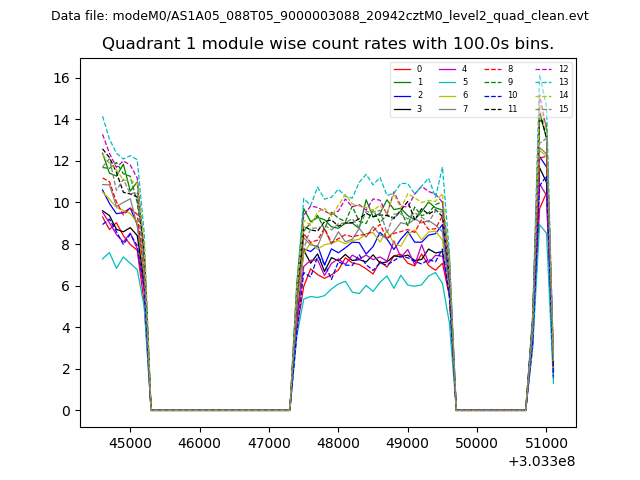

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

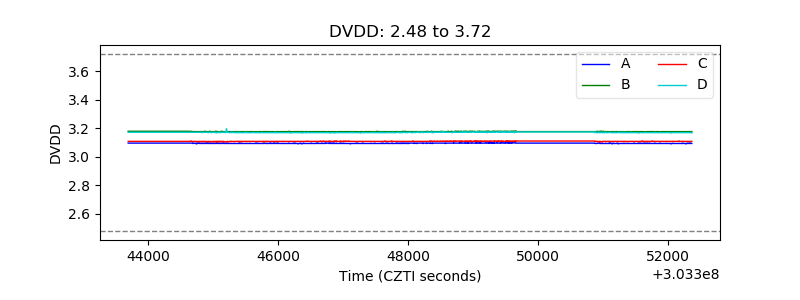

| D_VDD |  |
| Temperature 1 |  |

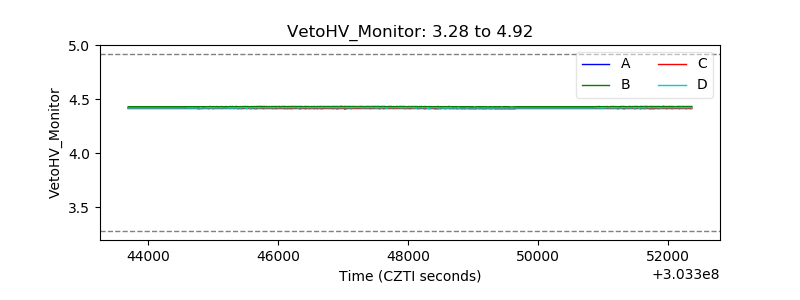

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

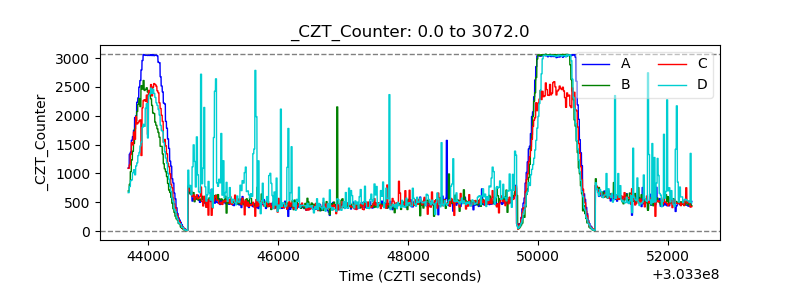

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

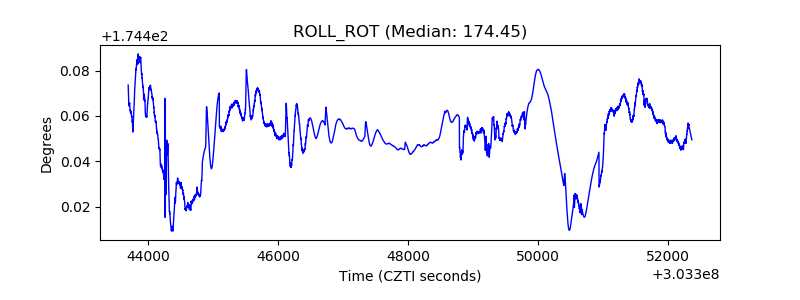

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

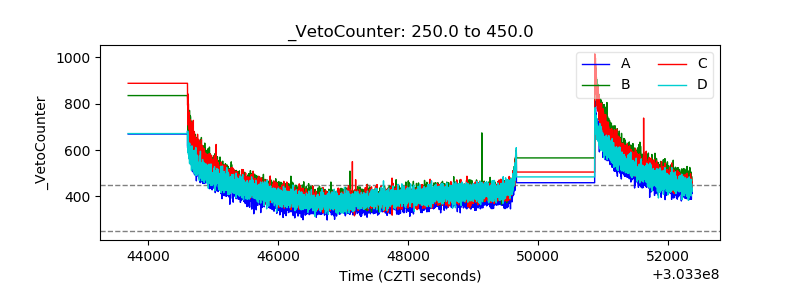

| Veto Counter |  |
