| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T05_9000003088_20947cztM0_level2.evt | modeM0/AS1A05_088T05_9000003088_20947cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,973,760 | 96,503,040 |
| Size | 511.1 MB | 92.0 MB |
| Events in quadrant A | 3,242,418 | 639,766 |
| Events in quadrant B | 3,801,598 | 638,836 |
| Events in quadrant C | 3,325,491 | 605,296 |
| Events in quadrant D | 5,421,256 | 584,872 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13484 | 1 |
| B | 0 | 15182 | 1 |
| C | 0 | 13745 | 1 |
| D | 0 | 20299 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6506 | 62 | 0.952966% |
| B | 6506 | 164 | 2.520750% |
| C | 6506 | 101 | 1.552413% |
| D | 6506 | 720 | 11.066708% |

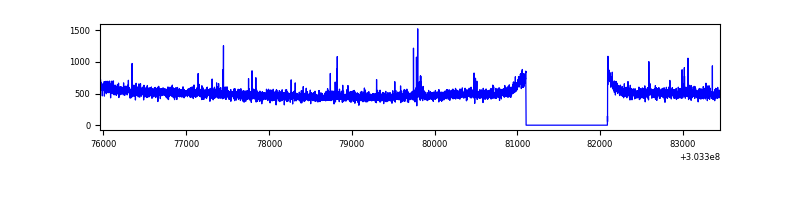

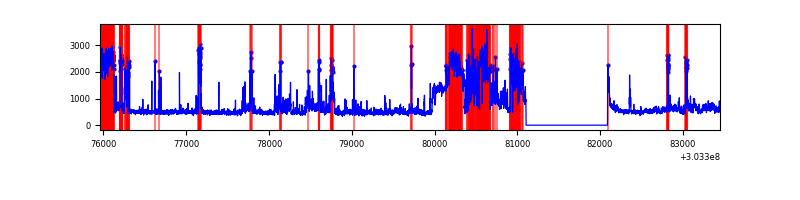

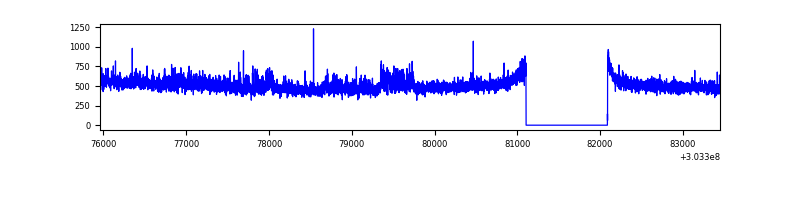

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7491 | 6507 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7491 | 6507 | 40 | 40 | 0.53% | 0.61% |  |
| C | 7491 | 6507 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7491 | 6507 | 614 | 614 | 8.20% | 9.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 31962 | 186.12 | 835 | 818 | 167.3 |
| A | 0 | 226 | 7145 | 37.81 | 835 | 818 | 167.3 |
| A | 3 | 137 | 6511 | 34.02 | 835 | 818 | 167.3 |
| B | 7 | 220 | 298255 | 1919.45 | 820 | 801 | 155.0 |
| B | 3 | 64 | 100132 | 640.97 | 820 | 801 | 155.0 |
| B | 0 | 230 | 54574 | 346.99 | 820 | 801 | 155.0 |
| C | 7 | 247 | 130789 | 706.24 | 788 | 794 | 184.1 |
| C | 14 | 238 | 125676 | 678.46 | 788 | 794 | 184.1 |
| C | 13 | 61 | 5310 | 24.53 | 788 | 794 | 184.1 |
| D | 15 | 0 | 1025542 | 5503.13 | 767 | 746 | 186.2 |
| D | 1 | 52 | 662035 | 3551.11 | 767 | 746 | 186.2 |
| D | 9 | 1 | 356401 | 1909.86 | 767 | 746 | 186.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

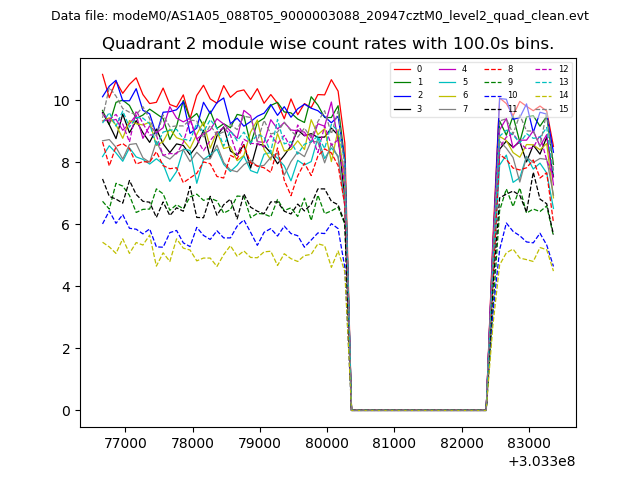

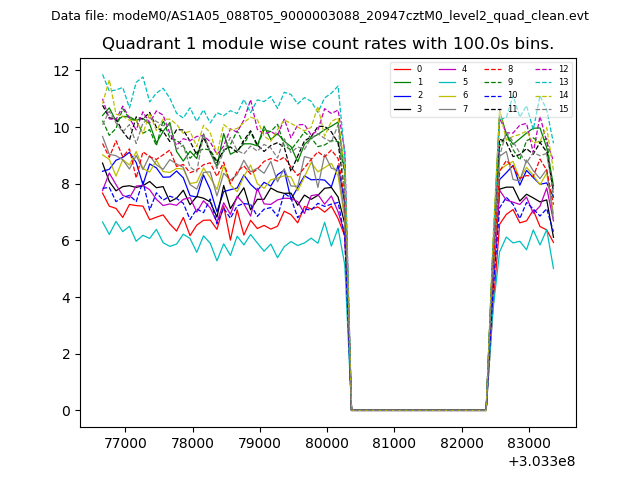

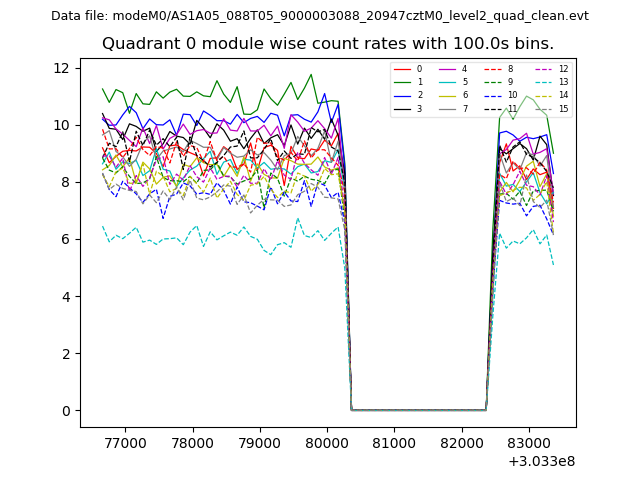

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

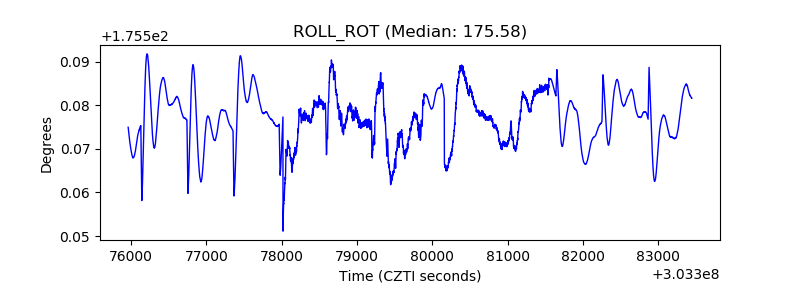

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
