| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_088T05_9000003088_20950cztM0_level2.evt | modeM0/AS1A05_088T05_9000003088_20950cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,245,120 | 92,695,680 |
| Size | 501.9 MB | 88.4 MB |
| Events in quadrant A | 3,216,959 | 606,633 |
| Events in quadrant B | 3,503,957 | 605,729 |
| Events in quadrant C | 3,249,380 | 579,308 |
| Events in quadrant D | 5,498,886 | 534,719 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14178 | 2 |
| B | 0 | 14807 | 1 |
| C | 0 | 14169 | 1 |
| D | 0 | 20800 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6897 | 67 | 0.971437% |
| B | 6898 | 99 | 1.435199% |
| C | 6898 | 88 | 1.275732% |
| D | 6898 | 668 | 9.683966% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7232 | 6899 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7233 | 6900 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7233 | 6900 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7233 | 6900 | 527 | 527 | 7.29% | 7.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7348 | 38.43 | 836 | 818 | 169.9 |
| A | 3 | 137 | 6563 | 33.81 | 836 | 818 | 169.9 |
| A | 12 | 194 | 6039 | 30.73 | 836 | 818 | 169.9 |
| B | 0 | 229 | 104328 | 642.99 | 828 | 806 | 161.0 |
| B | 3 | 64 | 44546 | 271.68 | 828 | 806 | 161.0 |
| B | 0 | 197 | 25833 | 155.45 | 828 | 806 | 161.0 |
| C | 14 | 238 | 123632 | 653.31 | 797 | 804 | 188.0 |
| C | 0 | 207 | 7632 | 36.32 | 797 | 804 | 188.0 |
| C | 8 | 128 | 5878 | 26.99 | 797 | 804 | 188.0 |
| D | 9 | 1 | 1507834 | 7814.11 | 784 | 763 | 192.9 |
| D | 5 | 222 | 326572 | 1689.31 | 784 | 763 | 192.9 |
| D | 15 | 0 | 216525 | 1118.72 | 784 | 763 | 192.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

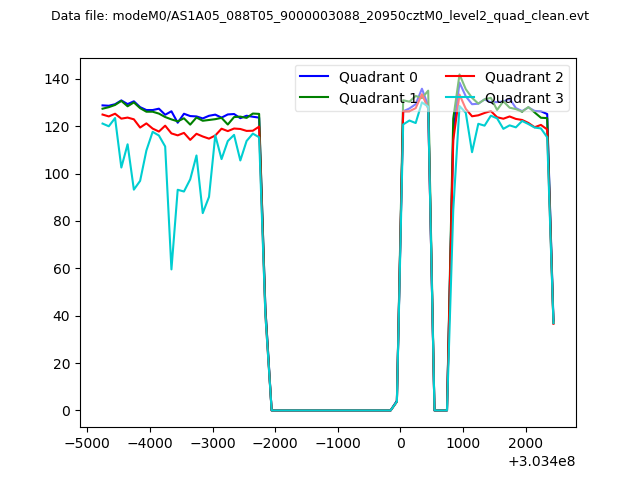

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

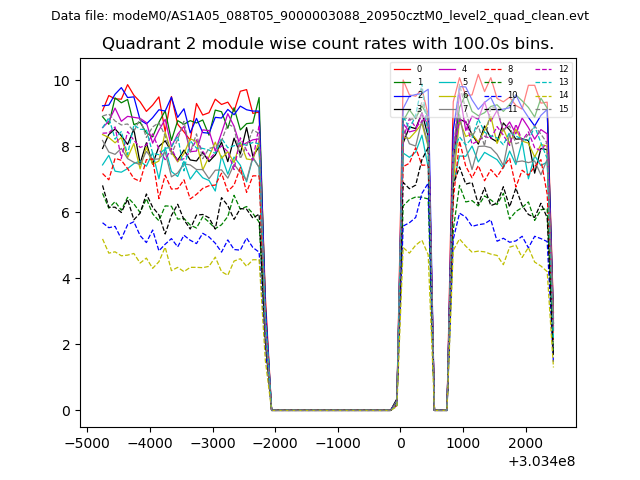

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

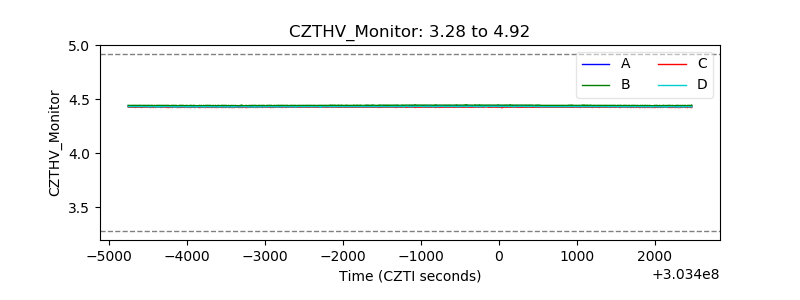

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

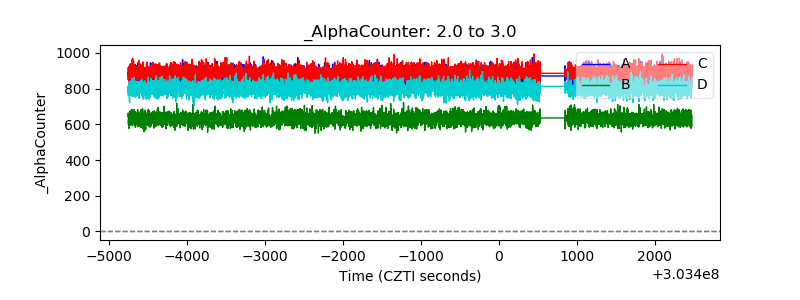

| Alpha Counter |  |

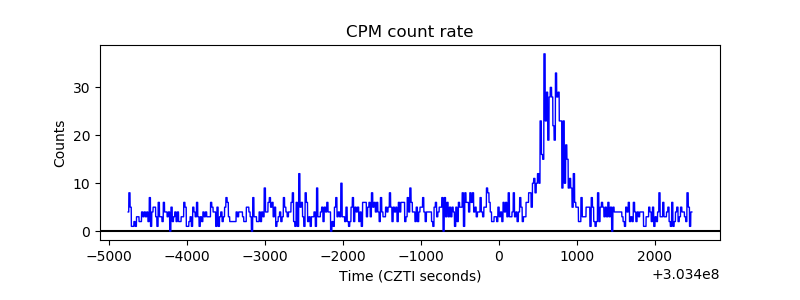

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
