| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_131T01_9000003090_20967cztM0_level2.evt | modeM0/AS1T03_131T01_9000003090_20967cztM0_level2_quad_clean.evt |
| Size (bytes) | 937,154,880 | 167,339,520 |
| Size | 893.7 MB | 159.6 MB |
| Events in quadrant A | 5,951,538 | 1,067,830 |
| Events in quadrant B | 7,314,879 | 1,059,434 |
| Events in quadrant C | 6,074,041 | 1,049,647 |
| Events in quadrant D | 8,180,580 | 1,011,928 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 258 | 0 |
| B | 0 | 258 | 0 |
| C | 0 | 258 | 0 |
| D | 0 | 258 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26101 | 2 |
| B | 0 | 29879 | 2 |
| C | 0 | 26389 | 2 |
| D | 0 | 32928 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12721 | 92 | 0.723214% |
| B | 12722 | 370 | 2.908348% |
| C | 12721 | 118 | 0.927600% |
| D | 12721 | 756 | 5.942929% |

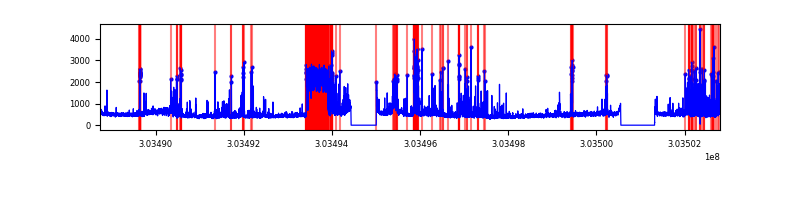

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14066 | 12723 | 7 | 7 | 0.05% | 0.06% |  |
| B | 14067 | 12724 | 179 | 179 | 1.27% | 1.41% |  |
| C | 14066 | 12723 | 0 | 0 | 0.00% | 0.00% |  |
| D | 14066 | 12723 | 539 | 539 | 3.83% | 4.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 210 | 43633 | 136.5 | 1533 | 1500 | 308.7 |
| A | 5 | 16 | 14690 | 42.73 | 1533 | 1500 | 308.7 |
| A | 0 | 226 | 13315 | 38.28 | 1533 | 1500 | 308.7 |
| B | 7 | 220 | 910386 | 3166.36 | 1517 | 1482 | 287.0 |
| B | 0 | 189 | 210340 | 727.6 | 1517 | 1482 | 287.0 |
| B | 3 | 64 | 112461 | 386.62 | 1517 | 1482 | 287.0 |
| C | 14 | 238 | 227994 | 659.58 | 1465 | 1472 | 343.4 |
| C | 10 | 91 | 114167 | 328.14 | 1465 | 1472 | 343.4 |
| C | 7 | 220 | 11347 | 28.75 | 1465 | 1472 | 343.4 |
| D | 1 | 52 | 1712247 | 4815.43 | 1450 | 1407 | 355.3 |
| D | 7 | 238 | 300070 | 840.63 | 1450 | 1407 | 355.3 |
| D | 9 | 1 | 195815 | 547.19 | 1450 | 1407 | 355.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

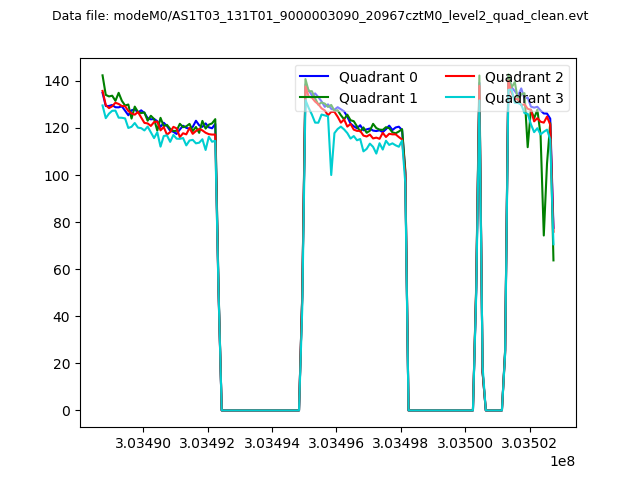

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

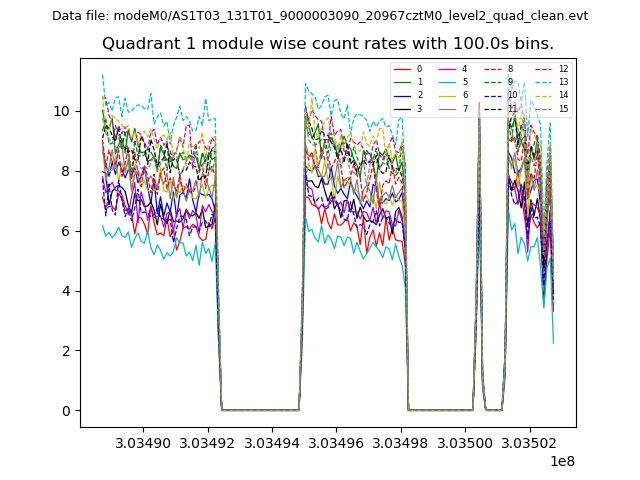

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

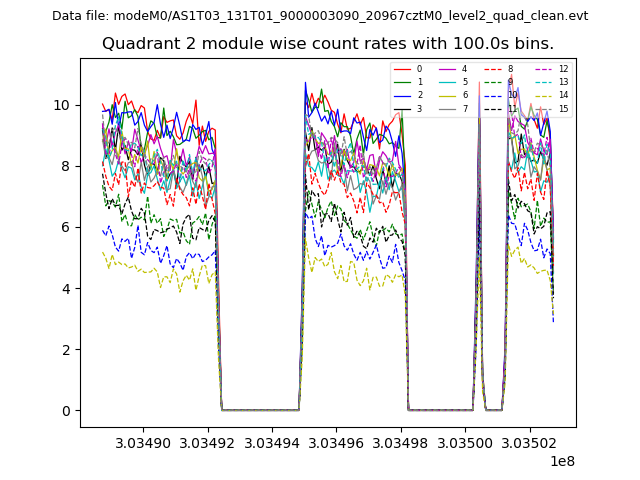

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

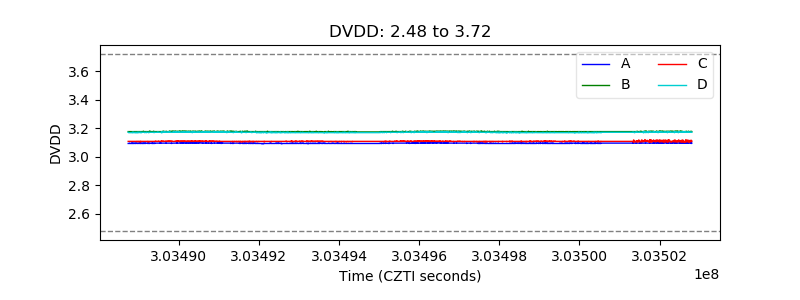

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

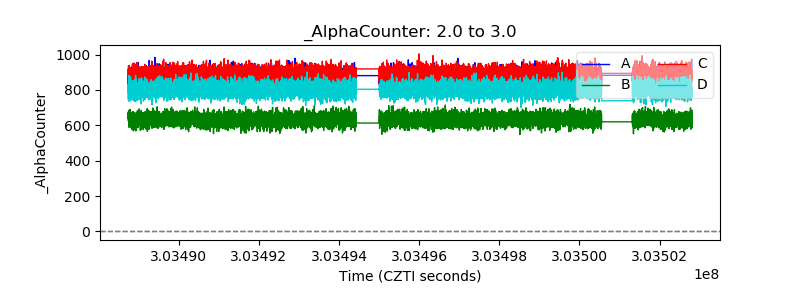

| Alpha Counter |  |
| _CPM_Rate |  |

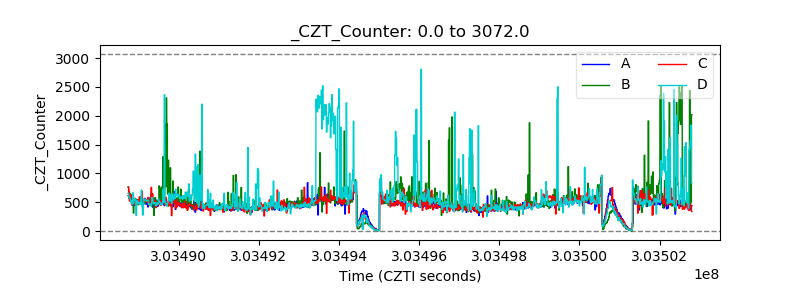

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

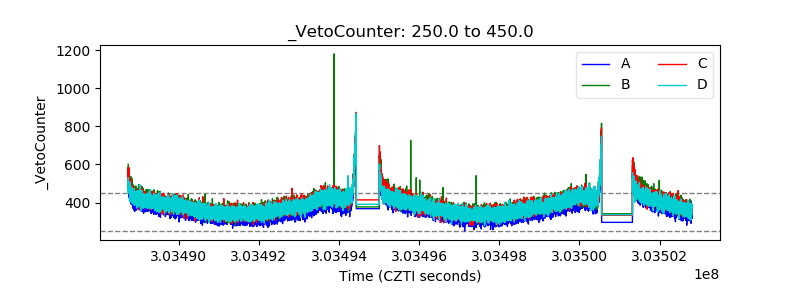

| Veto Counter |  |
