| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003094_20988cztM0_level2.evt | modeM0/AS1A05_072T04_9000003094_20988cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,144,960 | 75,392,640 |
| Size | 518.0 MB | 71.9 MB |
| Events in quadrant A | 3,279,393 | 475,822 |
| Events in quadrant B | 3,390,681 | 484,286 |
| Events in quadrant C | 3,301,269 | 453,819 |
| Events in quadrant D | 6,044,100 | 423,088 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13426 | 2 |
| B | 0 | 13769 | 2 |
| C | 0 | 13534 | 3 |
| D | 0 | 22062 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6380 | 59 | 0.924765% |
| B | 6380 | 71 | 1.112853% |
| C | 6379 | 76 | 1.191409% |
| D | 6379 | 1392 | 21.821602% |

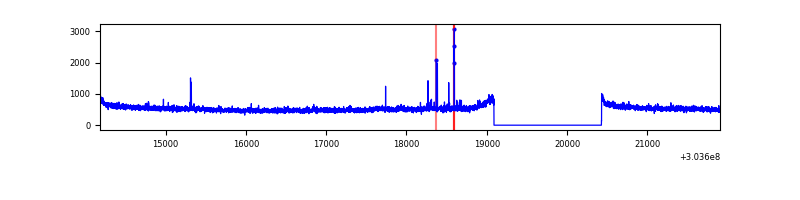

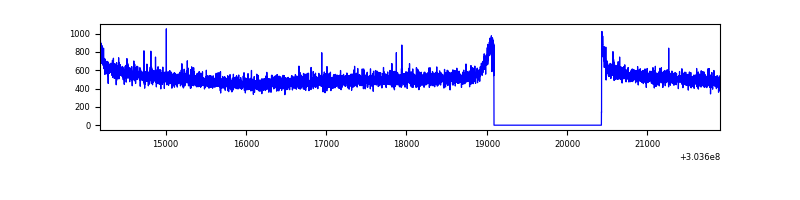

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7720 | 6381 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7720 | 6381 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7719 | 6380 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7719 | 6380 | 1349 | 1349 | 17.48% | 21.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7226 | 37.72 | 853 | 838 | 169.3 |
| A | 3 | 137 | 6352 | 32.56 | 853 | 838 | 169.3 |
| A | 12 | 194 | 5974 | 30.33 | 853 | 838 | 169.3 |
| B | 12 | 111 | 18287 | 110.56 | 855 | 836 | 157.8 |
| B | 0 | 190 | 16529 | 99.43 | 855 | 836 | 157.8 |
| B | 11 | 111 | 16336 | 98.2 | 855 | 836 | 157.8 |
| C | 14 | 238 | 129783 | 689.6 | 812 | 818 | 187.0 |
| C | 13 | 61 | 5673 | 25.96 | 812 | 818 | 187.0 |
| C | 3 | 233 | 3371 | 13.65 | 812 | 818 | 187.0 |
| D | 7 | 223 | 3082633 | 17009.89 | 750 | 728 | 181.2 |
| D | 1 | 52 | 50868 | 276.74 | 750 | 728 | 181.2 |
| D | 1 | 20 | 45867 | 249.13 | 750 | 728 | 181.2 |

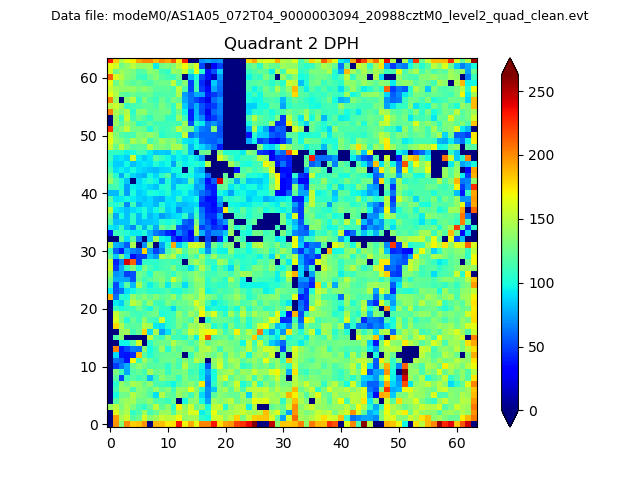

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

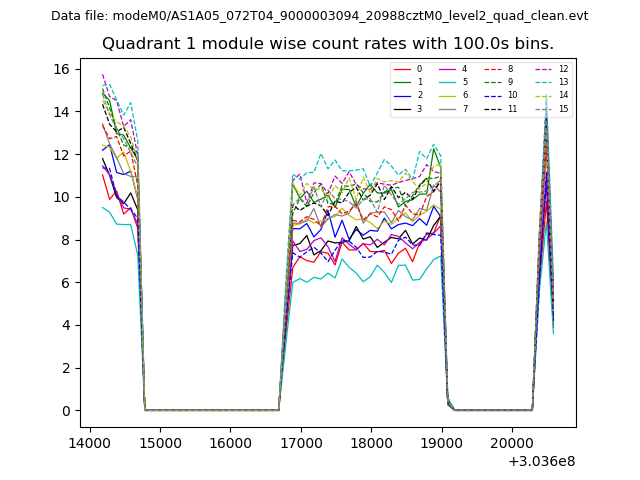

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

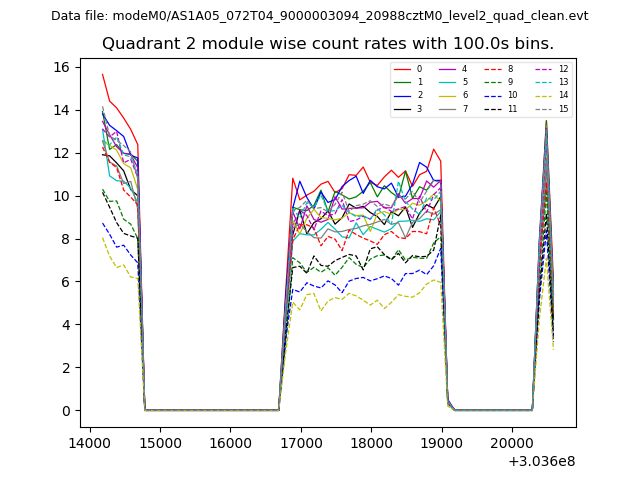

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

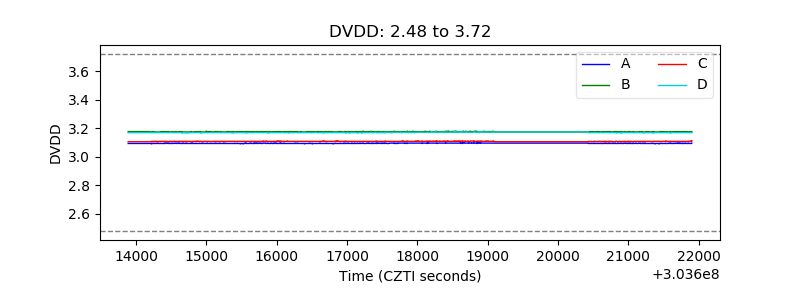

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

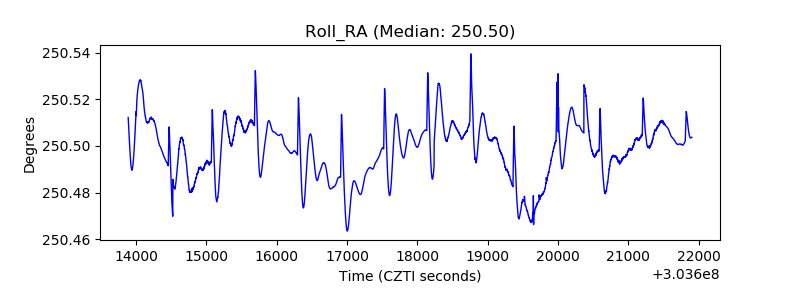

| _Roll_RA |  |

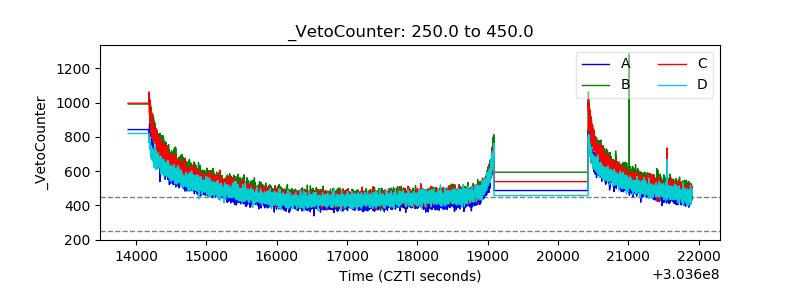

| Veto Counter |  |
