| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003094_20990cztM0_level2.evt | modeM0/AS1A05_072T04_9000003094_20990cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,970,560 | 73,365,120 |
| Size | 438.7 MB | 70.0 MB |
| Events in quadrant A | 3,079,305 | 464,845 |
| Events in quadrant B | 3,250,074 | 465,539 |
| Events in quadrant C | 3,099,984 | 441,959 |
| Events in quadrant D | 4,078,425 | 414,829 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12831 | 1 |
| B | 0 | 13218 | 1 |
| C | 0 | 12894 | 1 |
| D | 0 | 16186 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6220 | 85 | 1.366559% |
| B | 6221 | 108 | 1.736055% |
| C | 6221 | 108 | 1.736055% |
| D | 6221 | 339 | 5.449285% |

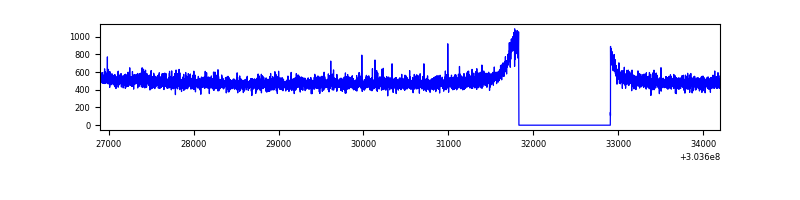

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7300 | 6221 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7301 | 6222 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7301 | 6222 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7301 | 6222 | 244 | 244 | 3.34% | 3.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6896 | 37.92 | 800 | 783 | 161.2 |
| A | 3 | 137 | 6352 | 34.55 | 800 | 783 | 161.2 |
| A | 12 | 194 | 5579 | 29.75 | 800 | 783 | 161.2 |
| B | 3 | 64 | 42103 | 272.52 | 797 | 777 | 151.6 |
| B | 7 | 220 | 30321 | 194.82 | 797 | 777 | 151.6 |
| B | 12 | 111 | 17745 | 111.89 | 797 | 777 | 151.6 |
| C | 14 | 238 | 119535 | 673.62 | 760 | 766 | 176.3 |
| C | 10 | 91 | 9394 | 48.94 | 760 | 766 | 176.3 |
| C | 9 | 54 | 5435 | 26.48 | 760 | 766 | 176.3 |
| D | 1 | 239 | 633479 | 3454.02 | 753 | 731 | 183.2 |
| D | 1 | 52 | 402658 | 2194.02 | 753 | 731 | 183.2 |
| D | 7 | 223 | 64986 | 350.75 | 753 | 731 | 183.2 |

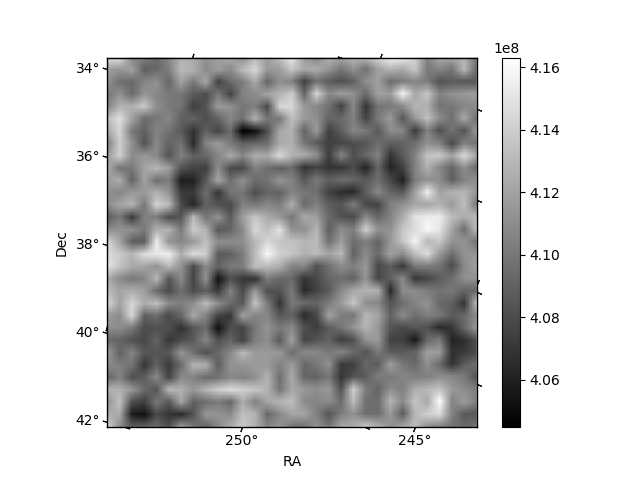

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

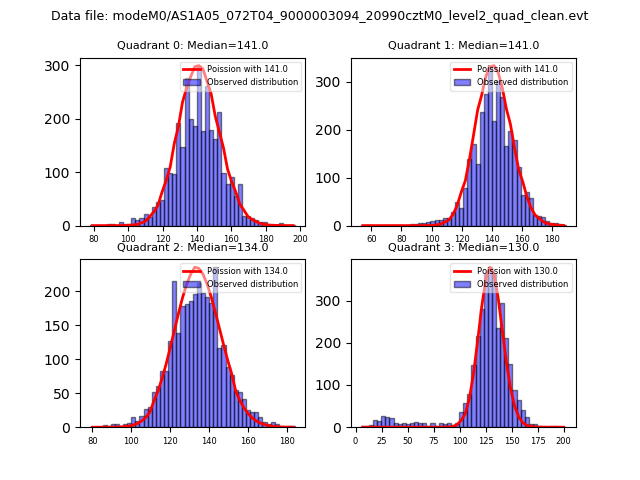

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

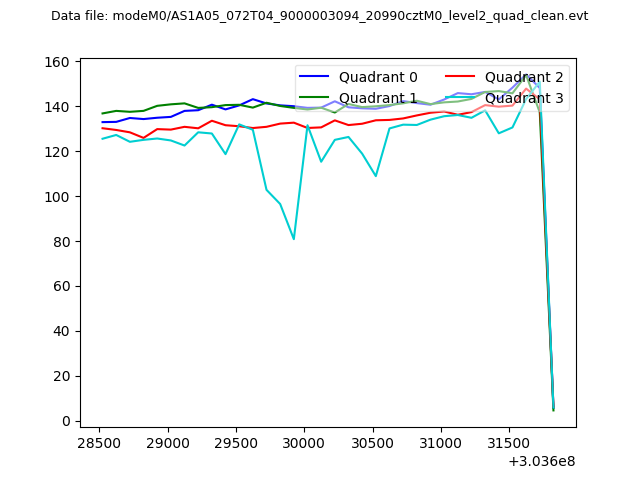

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

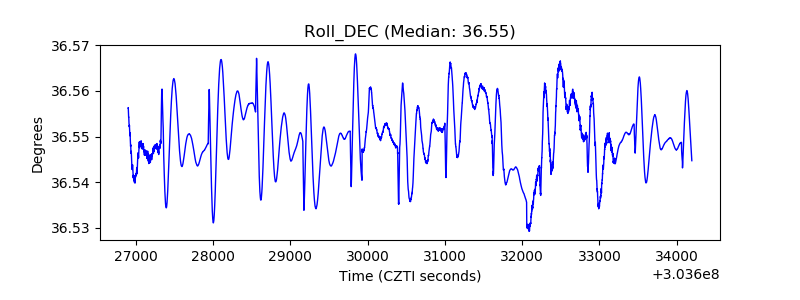

| _Roll_DEC |  |

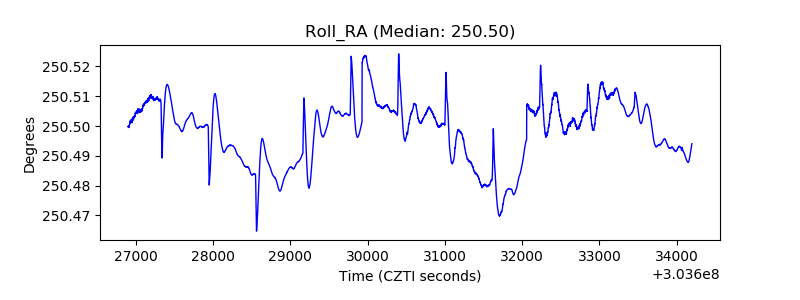

| _Roll_RA |  |

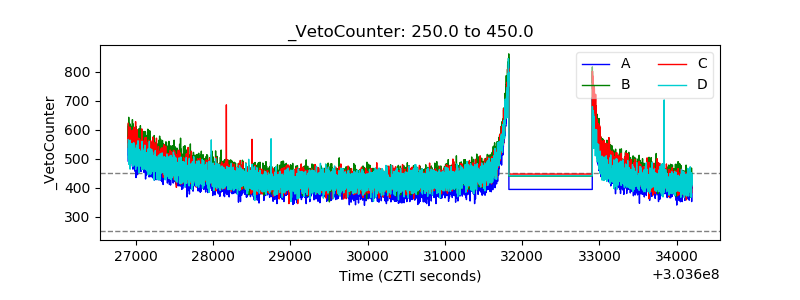

| Veto Counter |  |
