| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003094_20992cztM0_level2.evt | modeM0/AS1A05_072T04_9000003094_20992cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,761,920 | 93,536,640 |
| Size | 491.9 MB | 89.2 MB |
| Events in quadrant A | 3,414,145 | 597,979 |
| Events in quadrant B | 3,813,701 | 597,536 |
| Events in quadrant C | 3,484,417 | 571,513 |
| Events in quadrant D | 4,412,740 | 558,415 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14923 | 17 |
| B | 0 | 15787 | 27 |
| C | 0 | 14958 | 15 |
| D | 0 | 17888 | 16 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7286 | 152 | 2.086193% |
| B | 7280 | 190 | 2.609890% |
| C | 7286 | 157 | 2.154817% |
| D | 7288 | 275 | 3.773326% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

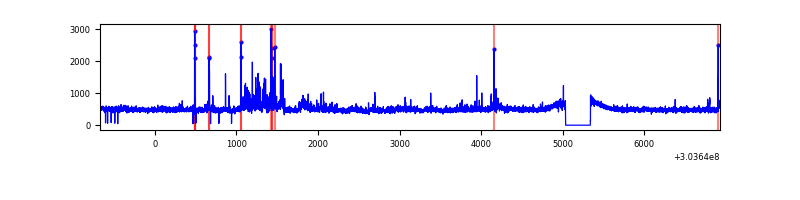

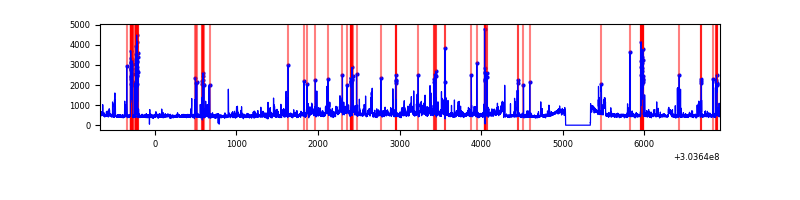

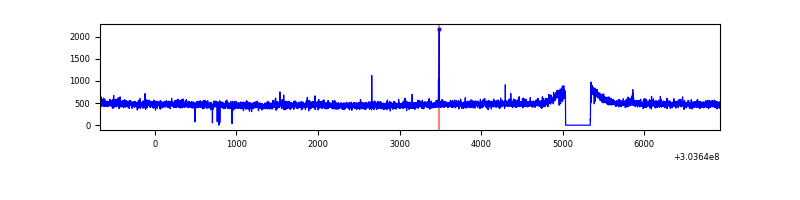

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7599 | 7295 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7598 | 7294 | 13 | 13 | 0.17% | 0.18% |  |
| C | 7598 | 7292 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7598 | 7294 | 132 | 132 | 1.74% | 1.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 12329 | 63.76 | 885 | 866 | 179.8 |
| A | 0 | 226 | 7604 | 37.48 | 885 | 866 | 179.8 |
| A | 3 | 137 | 7351 | 36.07 | 885 | 866 | 179.8 |
| B | 7 | 220 | 132235 | 779.18 | 879 | 857 | 168.6 |
| B | 0 | 182 | 71608 | 419.61 | 879 | 857 | 168.6 |
| B | 0 | 219 | 38622 | 223.98 | 879 | 857 | 168.6 |
| C | 14 | 238 | 133208 | 663.68 | 849 | 853 | 199.4 |
| C | 3 | 233 | 14482 | 68.34 | 849 | 853 | 199.4 |
| C | 7 | 247 | 9839 | 45.06 | 849 | 853 | 199.4 |
| D | 1 | 52 | 904279 | 4341.6 | 852 | 826 | 208.1 |
| D | 13 | 104 | 139853 | 668.1 | 852 | 826 | 208.1 |
| D | 2 | 234 | 40459 | 190.46 | 852 | 826 | 208.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

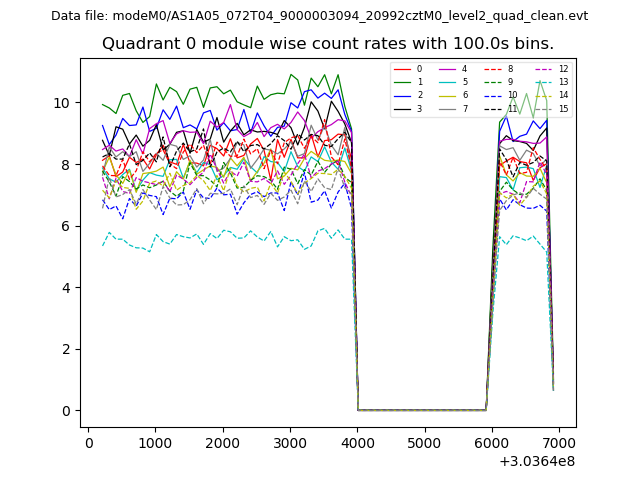

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

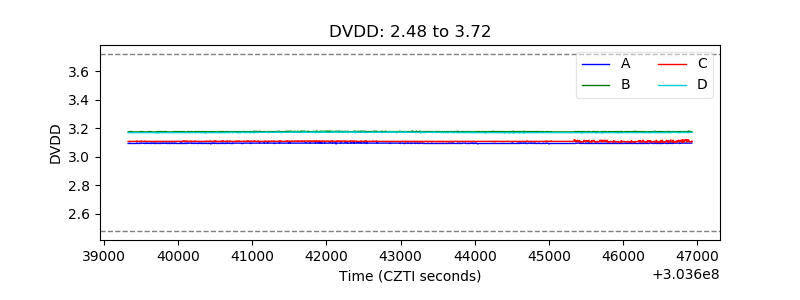

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

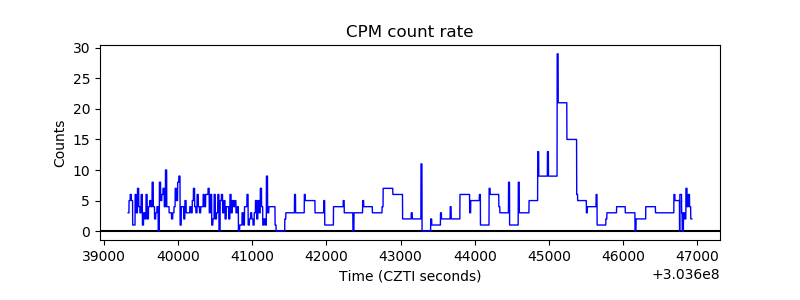

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

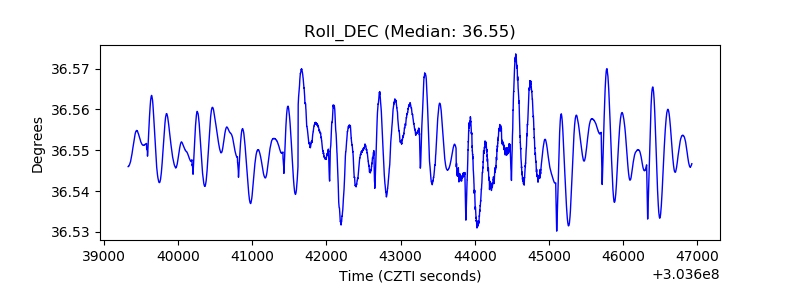

| _Roll_DEC |  |

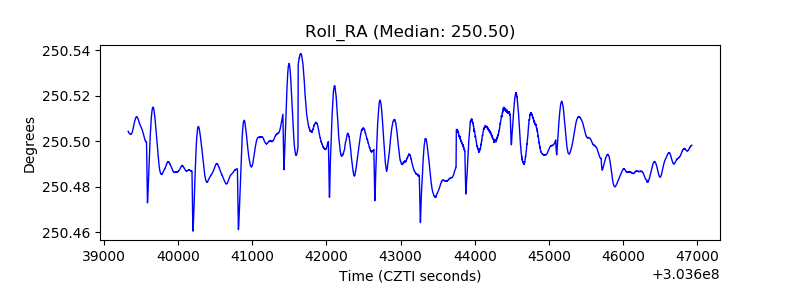

| _Roll_RA |  |
| Veto Counter |  |
