| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003094_20993cztM0_level2.evt | modeM0/AS1A05_072T04_9000003094_20993cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,594,240 | 102,807,360 |
| Size | 552.7 MB | 98.0 MB |
| Events in quadrant A | 3,807,750 | 657,659 |
| Events in quadrant B | 4,190,053 | 657,421 |
| Events in quadrant C | 3,864,998 | 630,648 |
| Events in quadrant D | 5,147,466 | 612,000 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16588 | 3 |
| B | 0 | 17516 | 3 |
| C | 0 | 16628 | 3 |
| D | 0 | 20603 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7986 | 272 | 3.405960% |
| B | 7987 | 312 | 3.906348% |
| C | 7986 | 288 | 3.606311% |
| D | 7986 | 434 | 5.434510% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8551 | 7989 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8552 | 7990 | 9 | 9 | 0.11% | 0.11% |  |
| C | 8551 | 7989 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8551 | 7989 | 195 | 195 | 2.28% | 2.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8480 | 36.88 | 991 | 965 | 203.8 |
| A | 3 | 137 | 8326 | 36.12 | 991 | 965 | 203.8 |
| A | 12 | 194 | 6958 | 29.41 | 991 | 965 | 203.8 |
| B | 7 | 220 | 132527 | 698.37 | 981 | 955 | 188.4 |
| B | 3 | 64 | 50169 | 261.22 | 981 | 955 | 188.4 |
| B | 4 | 216 | 30298 | 155.75 | 981 | 955 | 188.4 |
| C | 14 | 238 | 148217 | 660.26 | 945 | 950 | 223.0 |
| C | 8 | 128 | 11200 | 45.96 | 945 | 950 | 223.0 |
| C | 7 | 247 | 9033 | 36.24 | 945 | 950 | 223.0 |
| D | 7 | 238 | 510818 | 2187.67 | 957 | 926 | 233.1 |
| D | 1 | 52 | 505510 | 2164.89 | 957 | 926 | 233.1 |
| D | 13 | 104 | 411387 | 1761.06 | 957 | 926 | 233.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

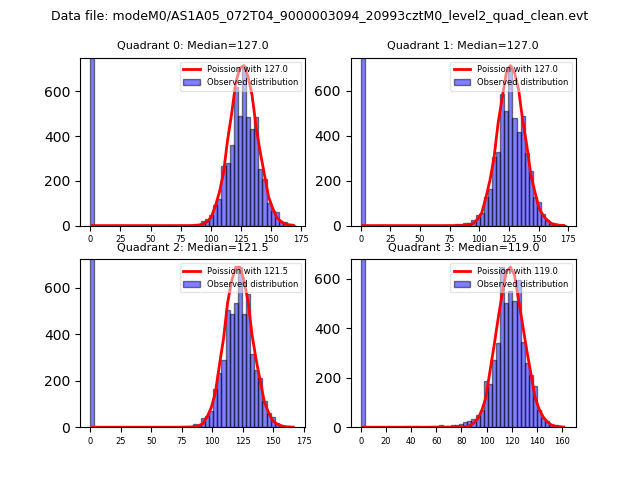

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

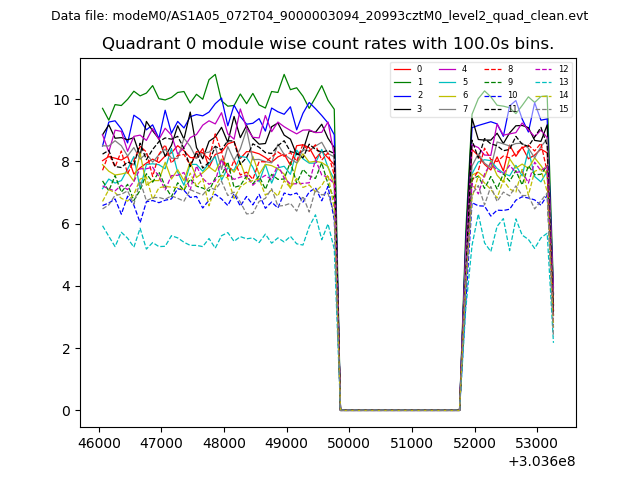

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

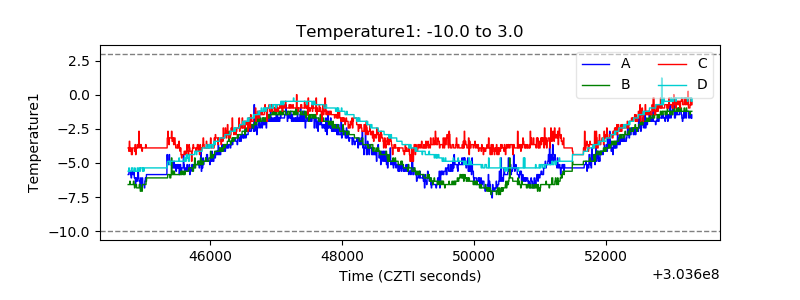

| Temperature 1 |  |

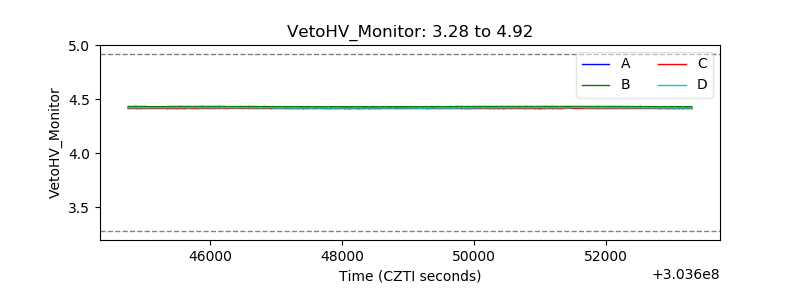

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

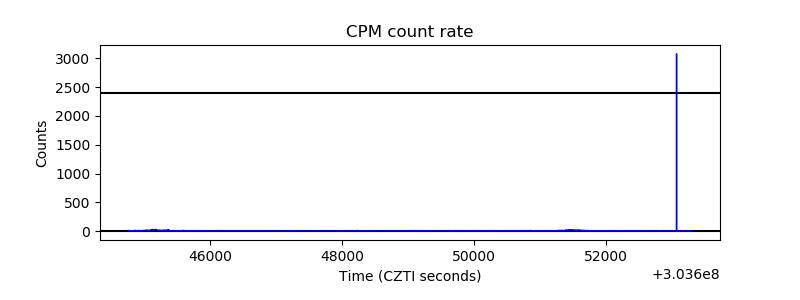

| _CPM_Rate |  |

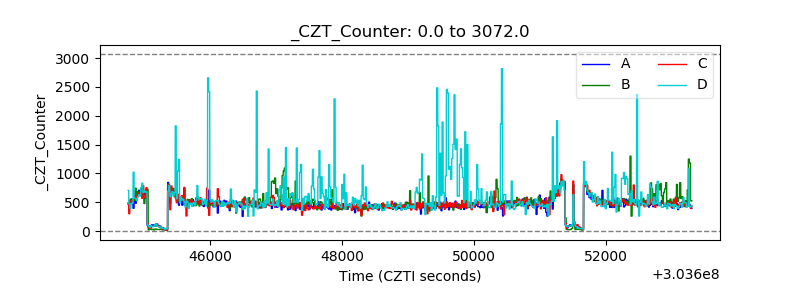

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

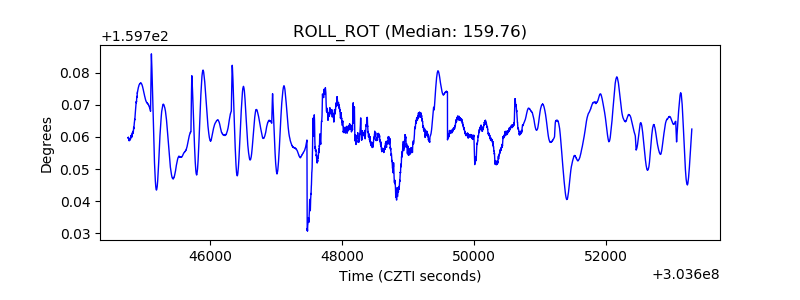

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
