| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_072T04_9000003094_21000cztM0_level2.evt | modeM0/AS1A05_072T04_9000003094_21000cztM0_level2_quad_clean.evt |
| Size (bytes) | 428,336,640 | 95,771,520 |
| Size | 408.5 MB | 91.3 MB |
| Events in quadrant A | 3,013,128 | 627,088 |
| Events in quadrant B | 3,283,169 | 639,315 |
| Events in quadrant C | 3,107,832 | 605,379 |
| Events in quadrant D | 3,137,410 | 586,720 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13041 | 2 |
| B | 0 | 13845 | 2 |
| C | 0 | 13205 | 2 |
| D | 0 | 13637 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 14 | 0.220994% |
| B | 6335 | 48 | 0.757695% |
| C | 6335 | 51 | 0.805051% |
| D | 6335 | 50 | 0.789266% |

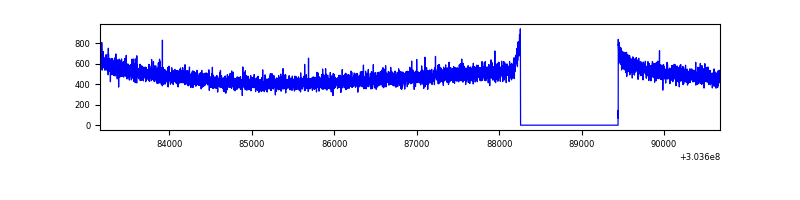

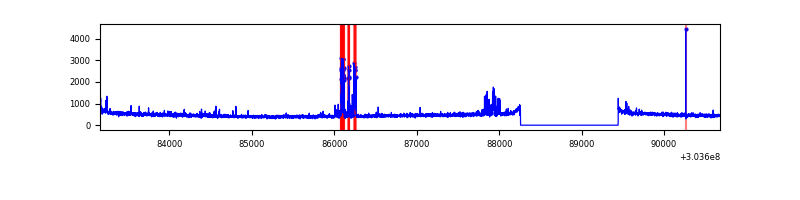

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

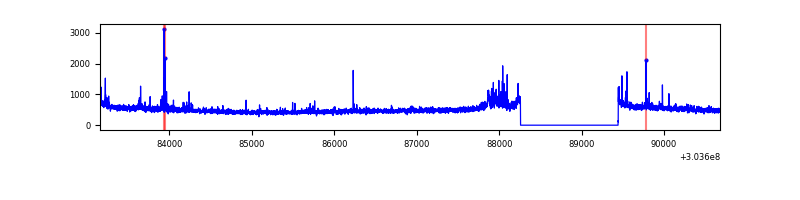

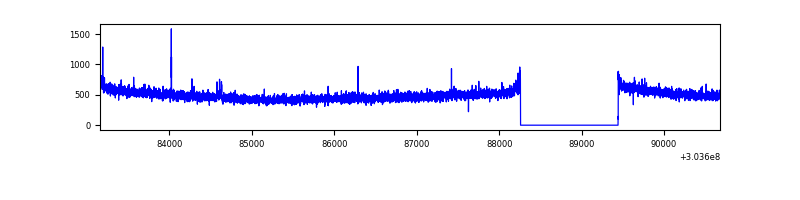

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7520 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7520 | 6336 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7520 | 6336 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7520 | 6336 | 34 | 34 | 0.45% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6842 | 38.62 | 784 | 766 | 157.3 |
| A | 3 | 137 | 6087 | 33.82 | 784 | 766 | 157.3 |
| A | 12 | 194 | 5586 | 30.64 | 784 | 766 | 157.3 |
| B | 0 | 189 | 65916 | 439.47 | 789 | 769 | 148.2 |
| B | 7 | 220 | 64230 | 428.1 | 789 | 769 | 148.2 |
| B | 0 | 229 | 27915 | 183.12 | 789 | 769 | 148.2 |
| C | 14 | 238 | 120685 | 674.14 | 760 | 768 | 177.9 |
| C | 9 | 54 | 14881 | 79.34 | 760 | 768 | 177.9 |
| C | 7 | 247 | 8158 | 41.54 | 760 | 768 | 177.9 |
| D | 1 | 20 | 161300 | 865.48 | 761 | 739 | 185.5 |
| D | 1 | 52 | 61328 | 326.6 | 761 | 739 | 185.5 |
| D | 2 | 234 | 26957 | 141.32 | 761 | 739 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

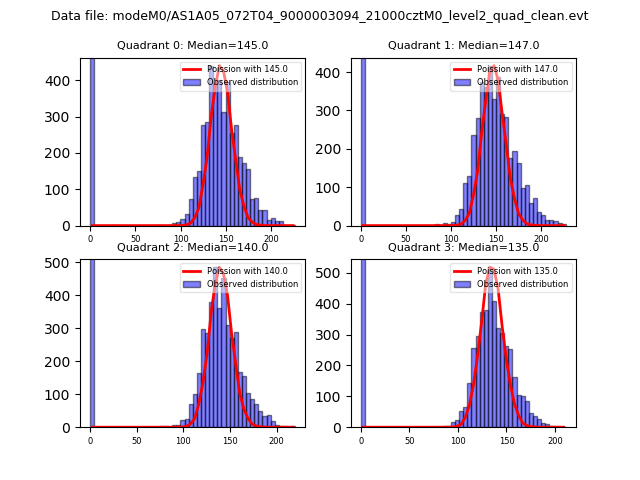

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

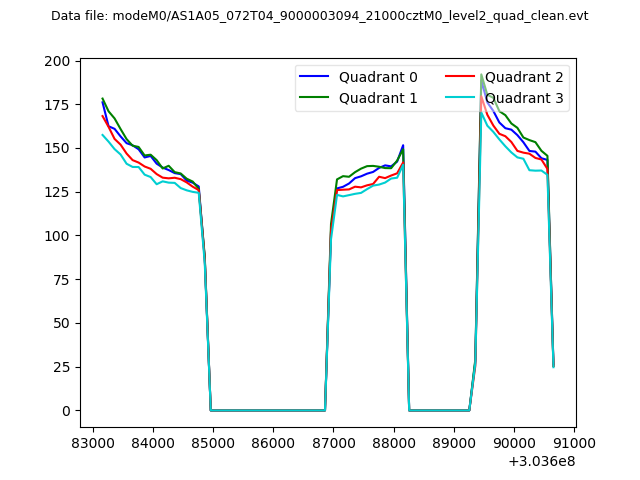

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

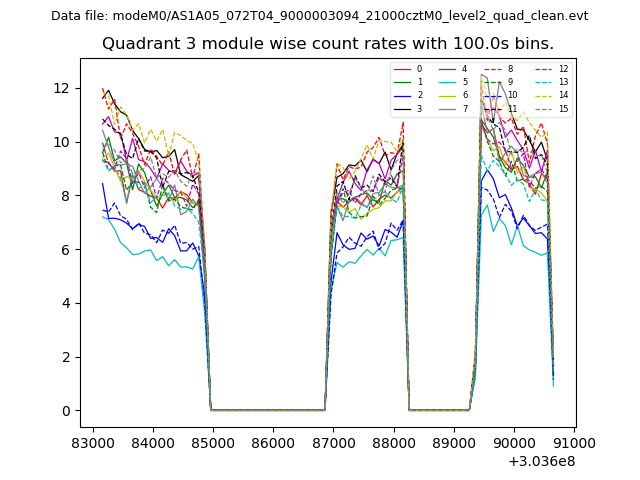

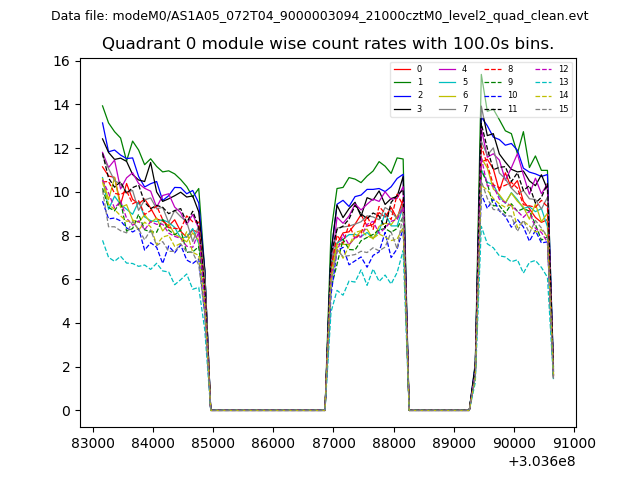

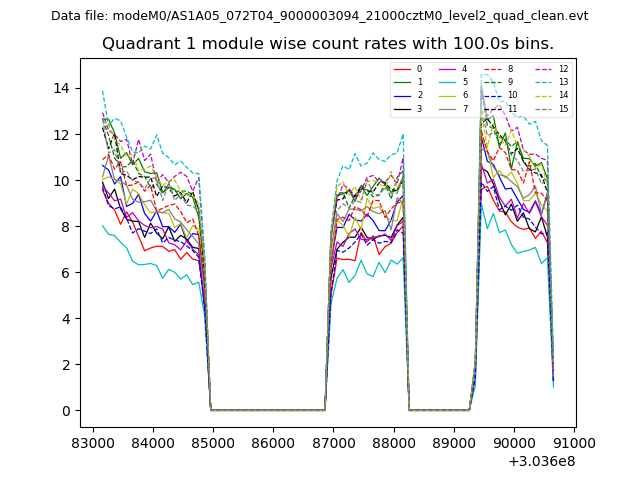

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

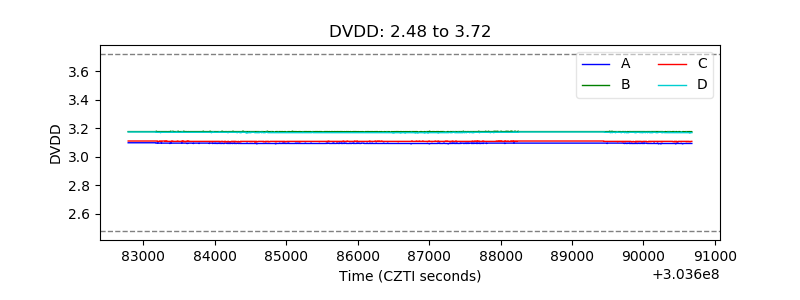

| D_VDD |  |

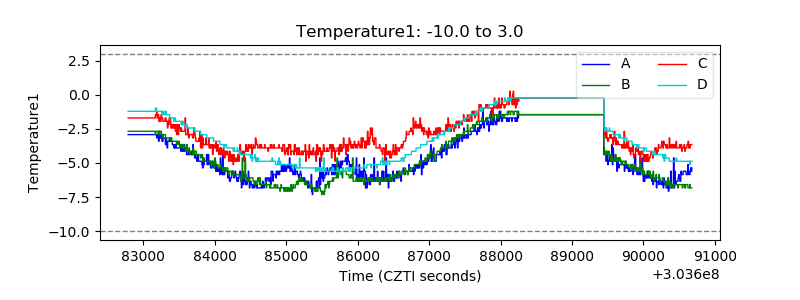

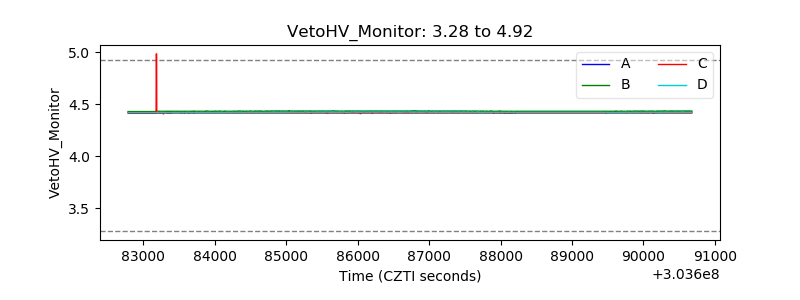

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

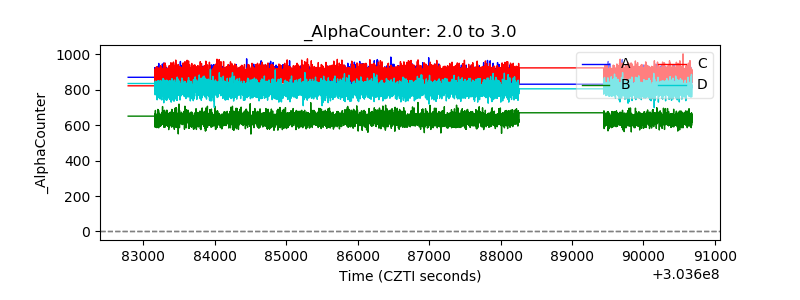

| Alpha Counter |  |

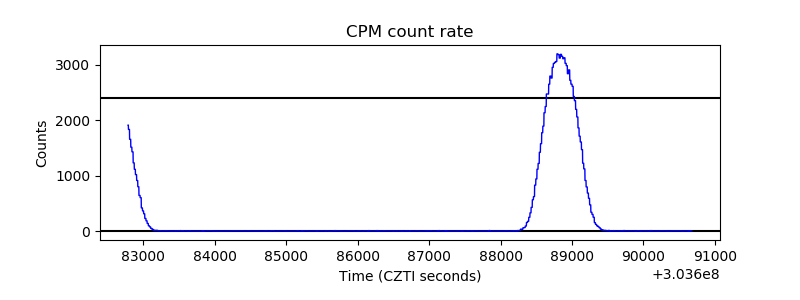

| _CPM_Rate |  |

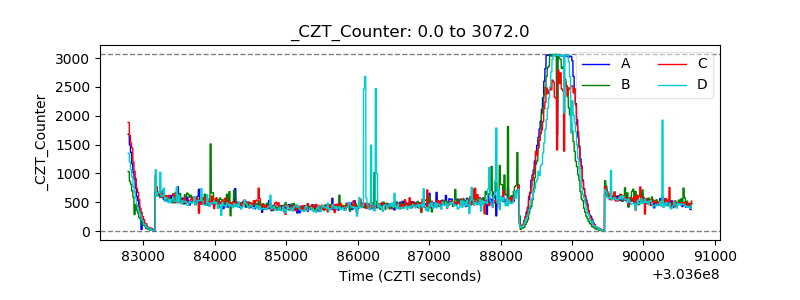

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

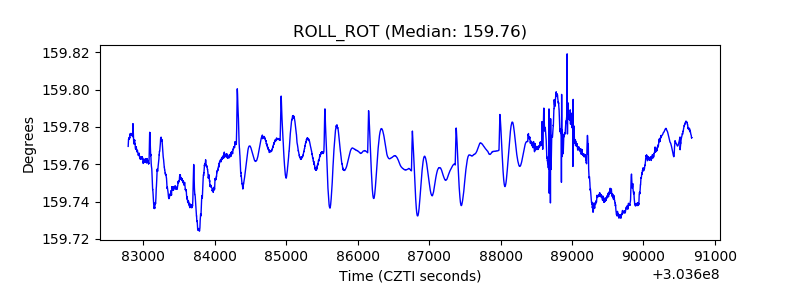

| _ROLL_ROT |  |

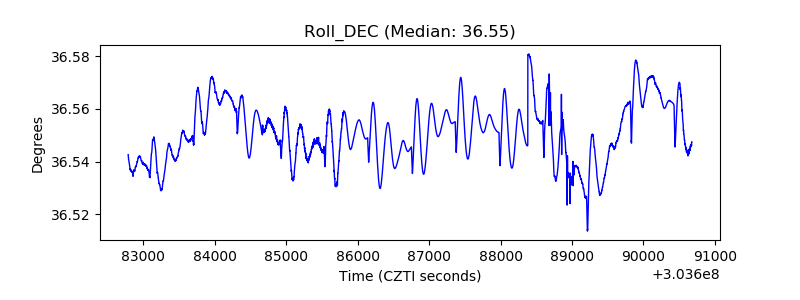

| _Roll_DEC |  |

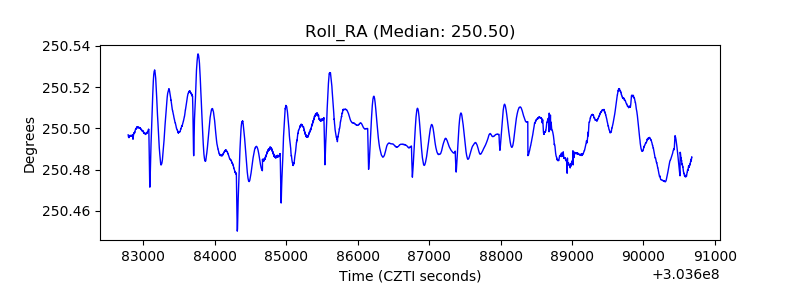

| _Roll_RA |  |
| Veto Counter |  |
