| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T03_9000003098_21008cztM0_level2.evt | modeM0/AS1A06_009T03_9000003098_21008cztM0_level2_quad_clean.evt |
| Size (bytes) | 193,625,280 | 24,240,960 |
| Size | 184.7 MB | 23.1 MB |
| Events in quadrant A | 1,347,276 | 138,083 |
| Events in quadrant B | 1,435,403 | 140,942 |
| Events in quadrant C | 1,376,641 | 135,875 |
| Events in quadrant D | 1,522,149 | 128,575 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5574 | 1 |
| B | 0 | 5800 | 1 |
| C | 0 | 5600 | 1 |
| D | 0 | 6188 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2647 | 114 | 4.306762% |
| B | 2647 | 139 | 5.251228% |
| C | 2647 | 149 | 5.629014% |
| D | 2647 | 158 | 5.969022% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2977 | 2648 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2977 | 2648 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2977 | 2648 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2977 | 2648 | 38 | 38 | 1.28% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 137 | 3047 | 36.81 | 350 | 341 | 73.5 |
| A | 0 | 226 | 2956 | 35.57 | 350 | 341 | 73.5 |
| A | 12 | 194 | 2553 | 30.09 | 350 | 341 | 73.5 |
| B | 7 | 220 | 31274 | 445.01 | 348 | 339 | 69.5 |
| B | 0 | 189 | 16964 | 239.16 | 348 | 339 | 69.5 |
| B | 0 | 183 | 9962 | 138.43 | 348 | 339 | 69.5 |
| C | 14 | 238 | 52792 | 649.41 | 338 | 337 | 80.8 |
| C | 9 | 54 | 3822 | 43.15 | 338 | 337 | 80.8 |
| C | 13 | 61 | 2405 | 25.6 | 338 | 337 | 80.8 |
| D | 9 | 1 | 174872 | 2048.6 | 341 | 329 | 85.2 |
| D | 13 | 104 | 32557 | 378.26 | 341 | 329 | 85.2 |
| D | 2 | 234 | 9878 | 112.08 | 341 | 329 | 85.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

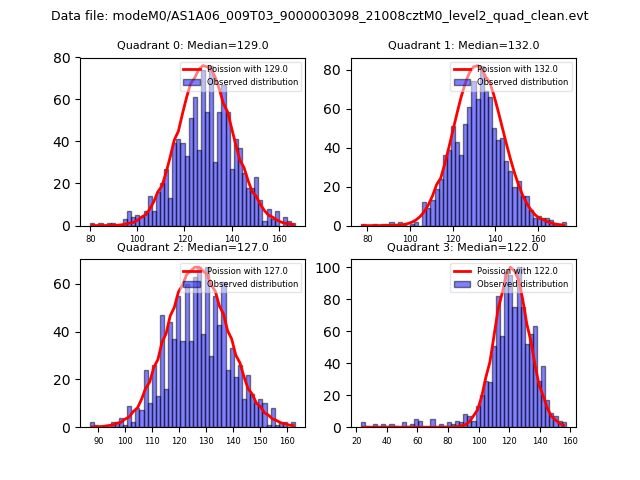

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

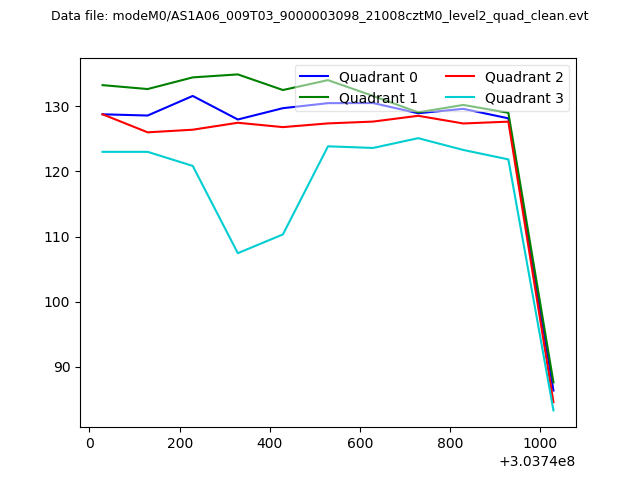

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

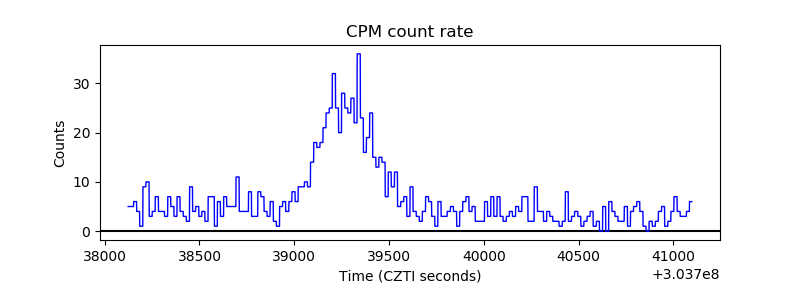

| _CPM_Rate |  |

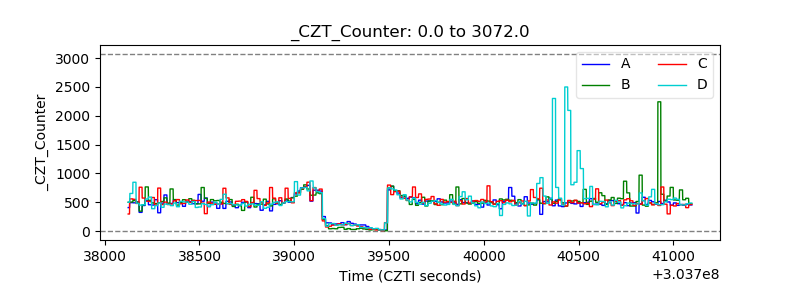

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

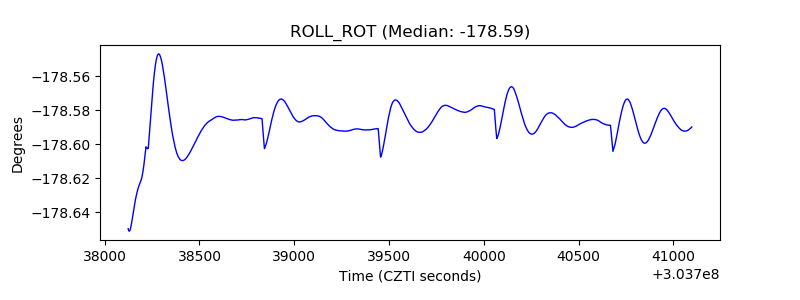

| _ROLL_ROT |  |

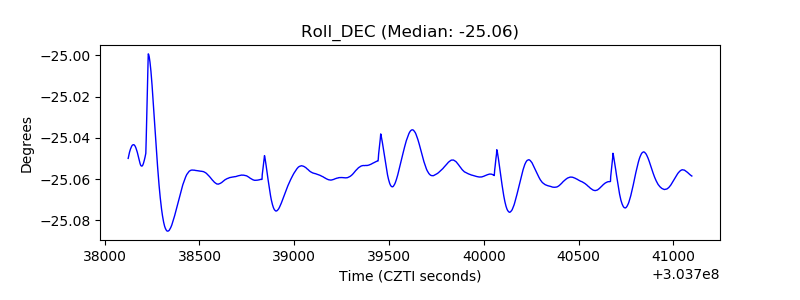

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
