| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T06_9000003104_21017cztM0_level2.evt | modeM0/AS1A05_075T06_9000003104_21017cztM0_level2_quad_clean.evt |
| Size (bytes) | 241,655,040 | 43,920,000 |
| Size | 230.5 MB | 41.9 MB |
| Events in quadrant A | 1,712,925 | 278,269 |
| Events in quadrant B | 1,880,182 | 281,849 |
| Events in quadrant C | 1,731,538 | 269,946 |
| Events in quadrant D | 1,767,999 | 265,150 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7001 | 1 |
| B | 0 | 7570 | 1 |
| C | 0 | 7072 | 1 |
| D | 0 | 7277 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3307 | 37 | 1.118839% |
| B | 3307 | 71 | 2.146961% |
| C | 3307 | 65 | 1.965528% |
| D | 3307 | 26 | 0.786211% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4682 | 3309 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4682 | 3309 | 7 | 7 | 0.15% | 0.21% |  |
| C | 4682 | 3309 | 1 | 1 | 0.02% | 0.03% |  |
| D | 4682 | 3309 | 6 | 6 | 0.13% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 3971 | 38.94 | 444 | 435 | 90.8 |
| A | 3 | 137 | 3470 | 33.42 | 444 | 435 | 90.8 |
| A | 12 | 194 | 3152 | 29.92 | 444 | 435 | 90.8 |
| B | 7 | 220 | 72013 | 856.24 | 441 | 431 | 83.6 |
| B | 0 | 182 | 43952 | 520.58 | 441 | 431 | 83.6 |
| B | 0 | 230 | 13002 | 150.37 | 441 | 431 | 83.6 |
| C | 14 | 238 | 67902 | 686.51 | 424 | 428 | 98.3 |
| C | 9 | 54 | 8142 | 78.49 | 424 | 428 | 98.3 |
| C | 13 | 61 | 2969 | 25.85 | 424 | 428 | 98.3 |
| D | 13 | 104 | 42050 | 397.83 | 428 | 415 | 104.7 |
| D | 1 | 52 | 28038 | 263.94 | 428 | 415 | 104.7 |
| D | 7 | 238 | 27191 | 255.85 | 428 | 415 | 104.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

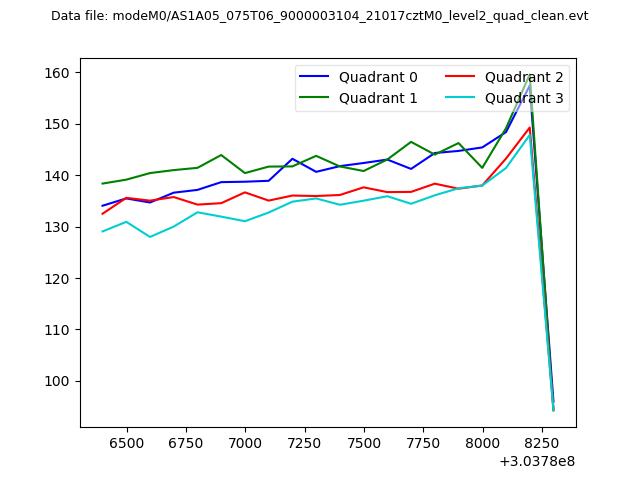

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

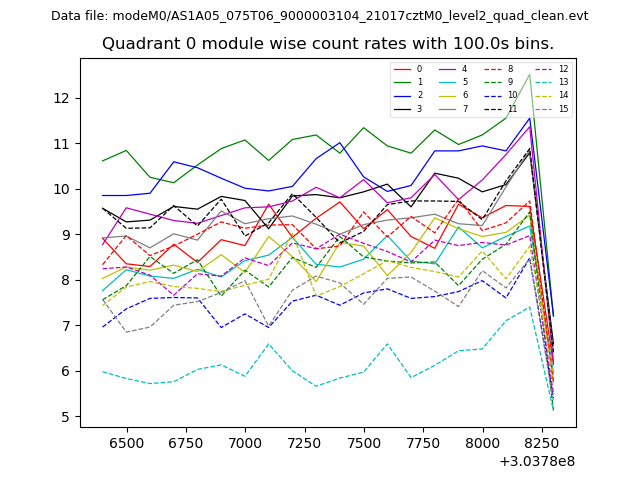

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

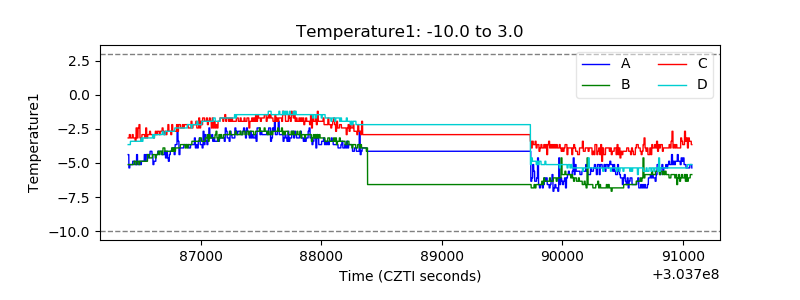

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

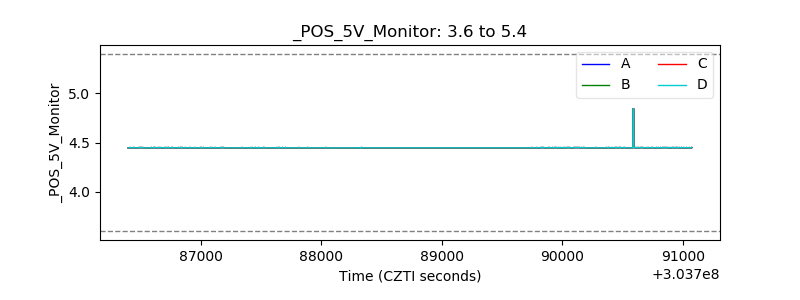

| +5 Volts monitor |  |

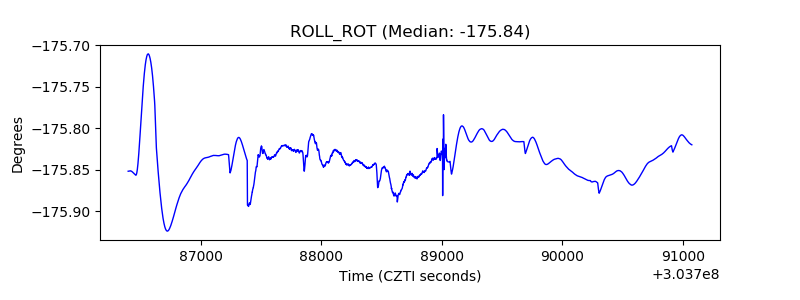

| _ROLL_ROT |  |

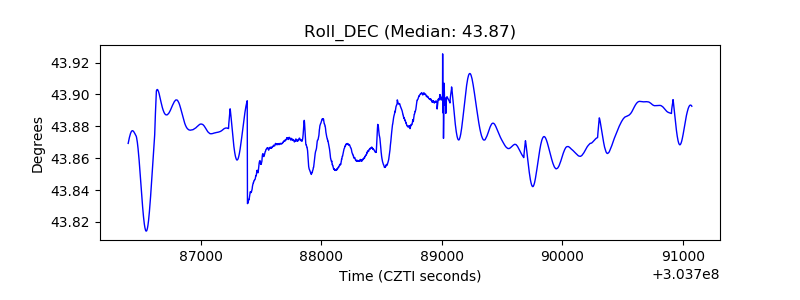

| _Roll_DEC |  |
| _Roll_RA |  |

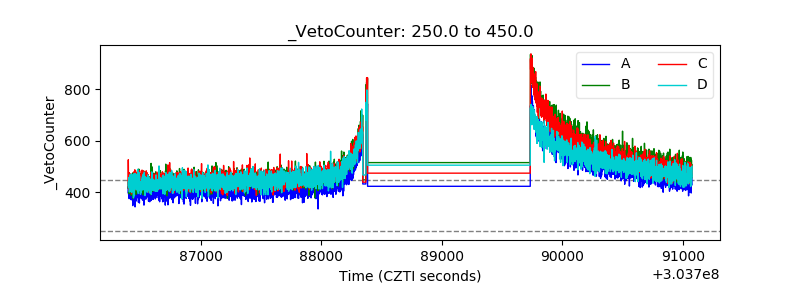

| Veto Counter |  |
