| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T06_9000003104_21018cztM0_level2.evt | modeM0/AS1A05_075T06_9000003104_21018cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,572,480 | 69,906,240 |
| Size | 413.5 MB | 66.7 MB |
| Events in quadrant A | 2,931,632 | 439,301 |
| Events in quadrant B | 3,822,165 | 424,814 |
| Events in quadrant C | 2,973,305 | 424,526 |
| Events in quadrant D | 3,002,331 | 415,403 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12176 | 1 |
| B | 0 | 14855 | 1 |
| C | 0 | 12299 | 1 |
| D | 0 | 12683 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5896 | 44 | 0.746269% |
| B | 5897 | 381 | 6.460912% |
| C | 5897 | 61 | 1.034424% |
| D | 5897 | 28 | 0.474818% |

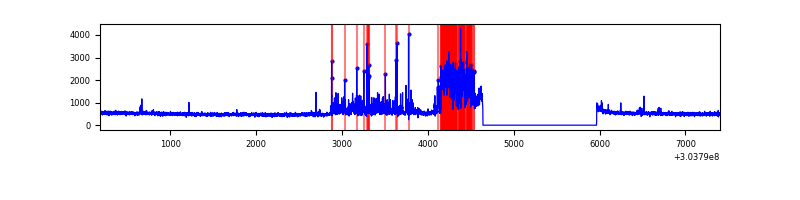

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7221 | 5897 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7222 | 5898 | 170 | 170 | 2.35% | 2.88% |  |
| C | 7222 | 5898 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7222 | 5898 | 14 | 14 | 0.19% | 0.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 6642 | 38.43 | 761 | 746 | 153.4 |
| A | 3 | 137 | 5843 | 33.22 | 761 | 746 | 153.4 |
| A | 12 | 194 | 5315 | 29.78 | 761 | 746 | 153.4 |
| B | 0 | 182 | 596816 | 4234.85 | 744 | 727 | 140.8 |
| B | 7 | 220 | 196046 | 1387.62 | 744 | 727 | 140.8 |
| B | 4 | 216 | 32339 | 224.58 | 744 | 727 | 140.8 |
| C | 14 | 238 | 116534 | 697.89 | 723 | 729 | 165.9 |
| C | 9 | 54 | 29818 | 175.3 | 723 | 729 | 165.9 |
| C | 13 | 250 | 6650 | 35.68 | 723 | 729 | 165.9 |
| D | 1 | 52 | 102643 | 584.1 | 731 | 711 | 174.5 |
| D | 7 | 238 | 35585 | 199.84 | 731 | 711 | 174.5 |
| D | 13 | 104 | 27349 | 152.64 | 731 | 711 | 174.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

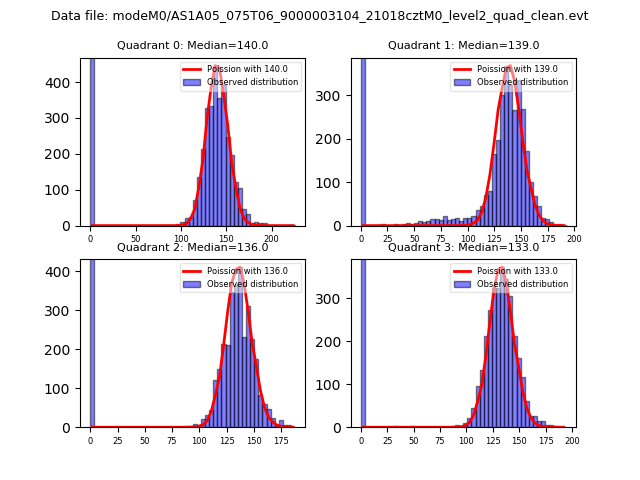

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

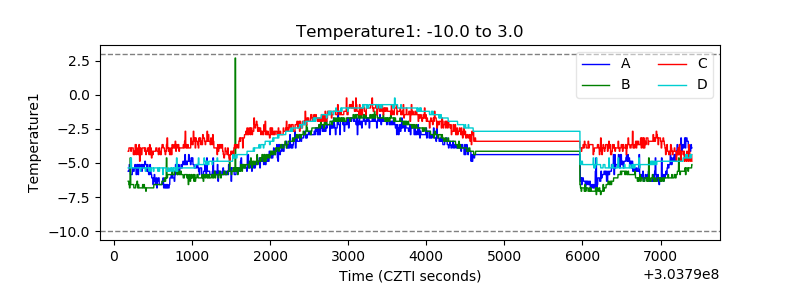

| Temperature 1 |  |

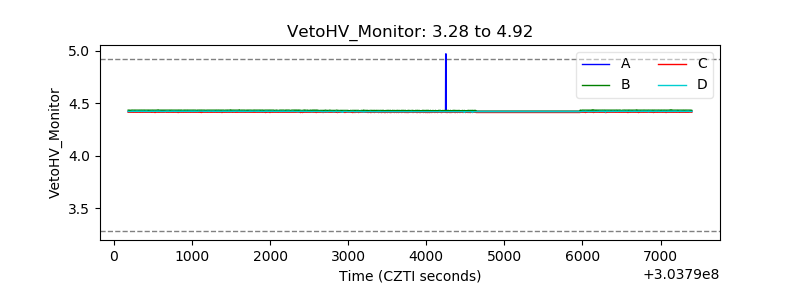

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

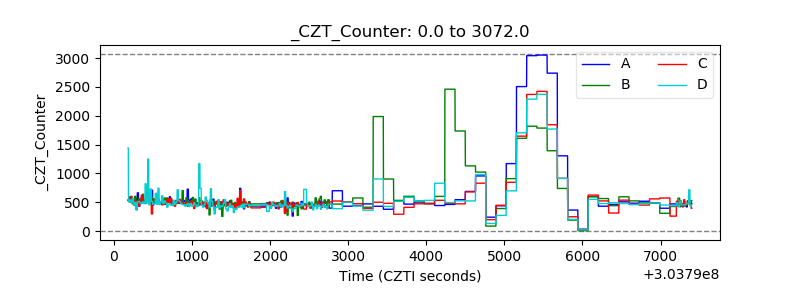

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

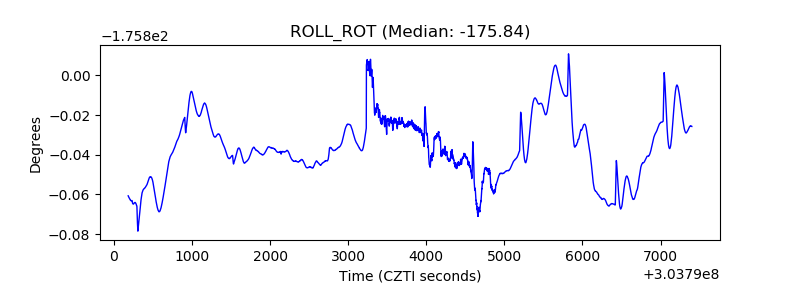

| _ROLL_ROT |  |

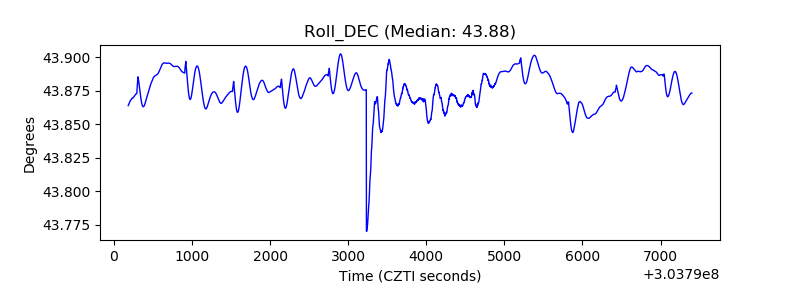

| _Roll_DEC |  |
| _Roll_RA |  |

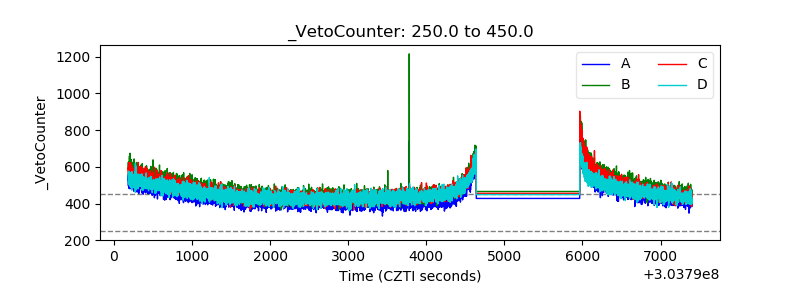

| Veto Counter |  |
