| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_075T06_9000003104_21021cztM0_level2.evt | modeM0/AS1A05_075T06_9000003104_21021cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,931,200 | 99,930,240 |
| Size | 458.7 MB | 95.3 MB |
| Events in quadrant A | 3,279,044 | 647,883 |
| Events in quadrant B | 3,977,752 | 648,689 |
| Events in quadrant C | 3,373,467 | 625,504 |
| Events in quadrant D | 3,454,370 | 612,007 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14438 | 1 |
| B | 0 | 16245 | 1 |
| C | 0 | 14610 | 1 |
| D | 0 | 15157 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7067 | 95 | 1.344276% |
| B | 7067 | 166 | 2.348946% |
| C | 7067 | 110 | 1.556530% |
| D | 7068 | 100 | 1.414827% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7402 | 7069 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7402 | 7069 | 48 | 48 | 0.65% | 0.68% |  |
| C | 7402 | 7069 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7403 | 7070 | 22 | 22 | 0.30% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 7846 | 40.56 | 849 | 828 | 173.0 |
| A | 0 | 226 | 7360 | 37.75 | 849 | 828 | 173.0 |
| A | 3 | 137 | 7010 | 35.73 | 849 | 828 | 173.0 |
| B | 7 | 220 | 395941 | 2443.91 | 843 | 821 | 161.7 |
| B | 0 | 189 | 97550 | 598.29 | 843 | 821 | 161.7 |
| B | 0 | 229 | 45378 | 275.6 | 843 | 821 | 161.7 |
| C | 14 | 238 | 126581 | 660.06 | 811 | 817 | 190.5 |
| C | 10 | 91 | 44249 | 227.95 | 811 | 817 | 190.5 |
| C | 9 | 54 | 21134 | 106.63 | 811 | 817 | 190.5 |
| D | 5 | 32 | 105468 | 521.55 | 824 | 800 | 200.7 |
| D | 7 | 38 | 97168 | 480.2 | 824 | 800 | 200.7 |
| D | 1 | 20 | 33573 | 163.31 | 824 | 800 | 200.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

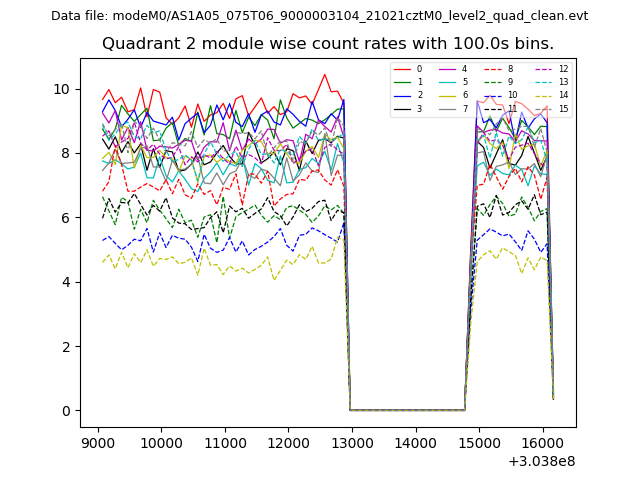

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

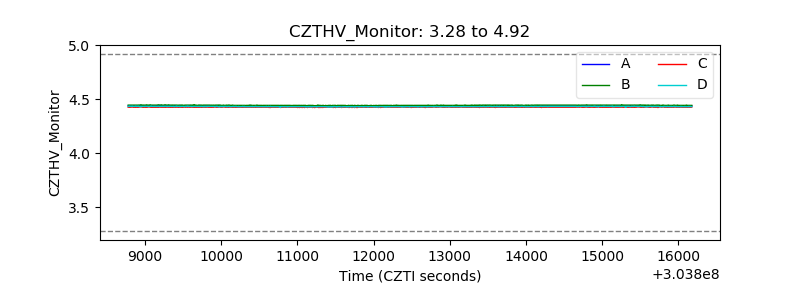

| CZT HV Monitor |  |
| D_VDD |  |

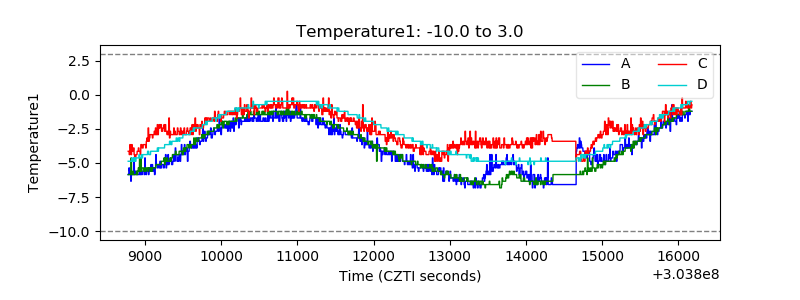

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

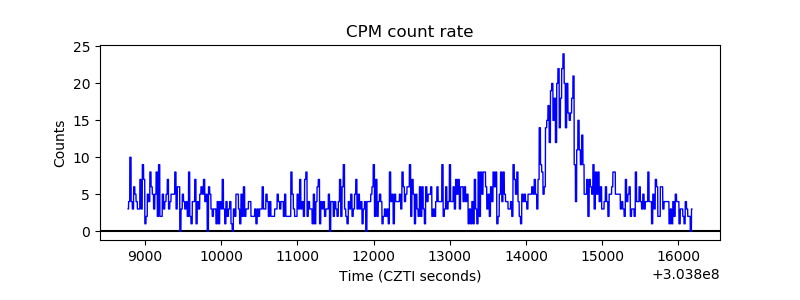

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

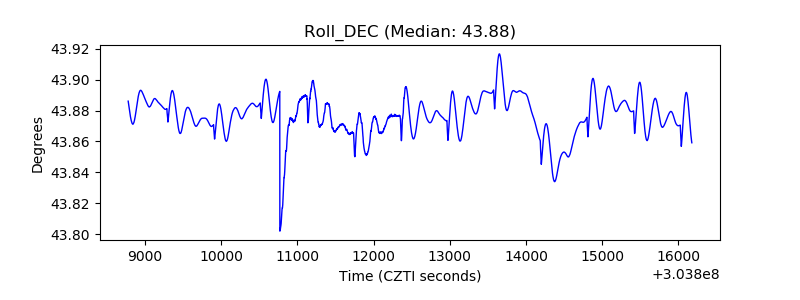

| _Roll_DEC |  |

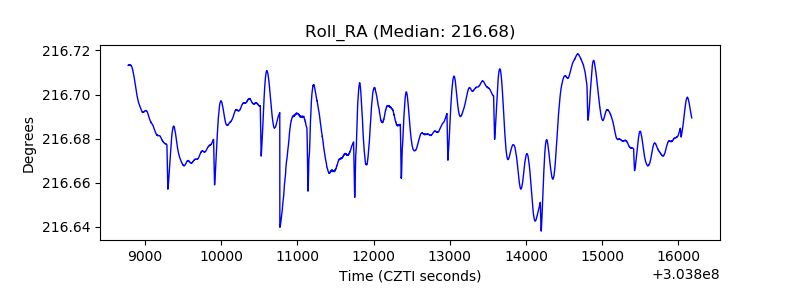

| _Roll_RA |  |

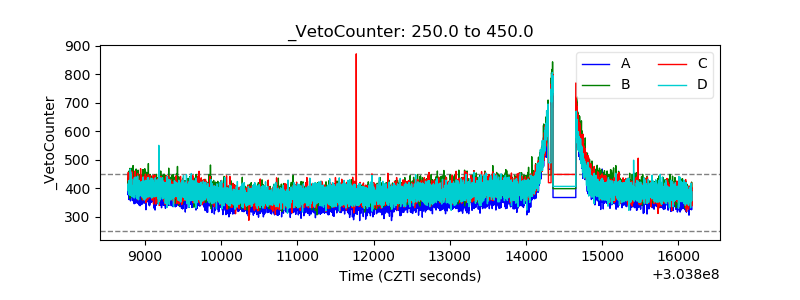

| Veto Counter |  |
