| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_025T04_9000003110_21050cztM0_level2.evt | modeM0/AS1A05_025T04_9000003110_21050cztM0_level2_quad_clean.evt |
| Size (bytes) | 506,243,520 | 113,713,920 |
| Size | 482.8 MB | 108.4 MB |
| Events in quadrant A | 3,581,641 | 734,417 |
| Events in quadrant B | 3,768,174 | 752,014 |
| Events in quadrant C | 3,642,463 | 718,109 |
| Events in quadrant D | 3,812,096 | 699,680 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15909 | 2 |
| B | 0 | 16263 | 2 |
| C | 0 | 15939 | 2 |
| D | 0 | 16479 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7760 | 159 | 2.048969% |
| B | 7761 | 163 | 2.100245% |
| C | 7761 | 192 | 2.473908% |
| D | 7760 | 155 | 1.997423% |

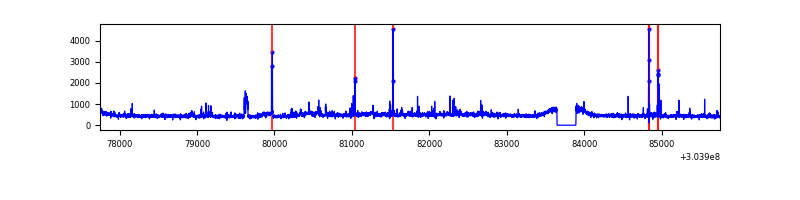

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

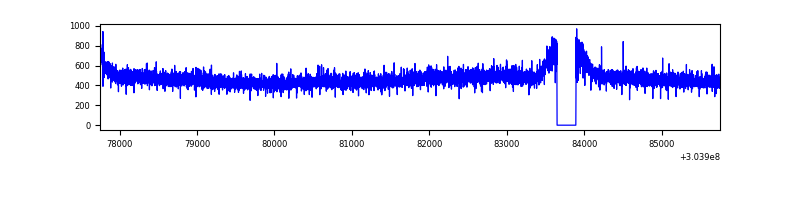

| A | 8005 | 7761 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8006 | 7762 | 9 | 9 | 0.11% | 0.12% |  |
| C | 8006 | 7762 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8005 | 7761 | 12 | 12 | 0.15% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10970 | 53.78 | 927 | 903 | 187.2 |
| A | 0 | 226 | 7894 | 37.35 | 927 | 903 | 187.2 |
| A | 13 | 252 | 7889 | 37.32 | 927 | 903 | 187.2 |
| B | 7 | 220 | 50121 | 279.7 | 925 | 901 | 176.0 |
| B | 12 | 111 | 21430 | 116.66 | 925 | 901 | 176.0 |
| B | 0 | 230 | 19259 | 104.32 | 925 | 901 | 176.0 |
| C | 14 | 238 | 140823 | 664.59 | 898 | 900 | 210.5 |
| C | 13 | 61 | 6307 | 25.68 | 898 | 900 | 210.5 |
| C | 9 | 209 | 2038 | 5.41 | 898 | 900 | 210.5 |
| D | 1 | 52 | 257745 | 1164.67 | 912 | 885 | 220.5 |
| D | 13 | 172 | 62397 | 278.91 | 912 | 885 | 220.5 |
| D | 2 | 234 | 29882 | 131.48 | 912 | 885 | 220.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

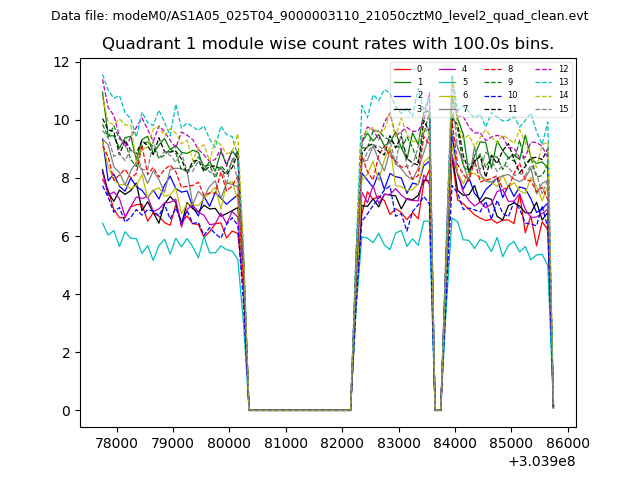

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

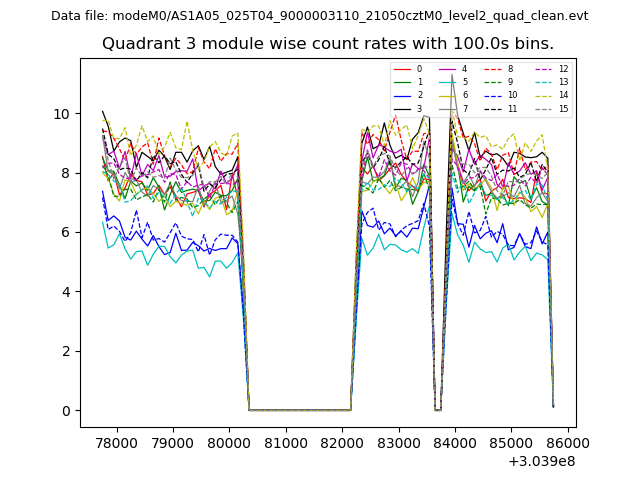

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

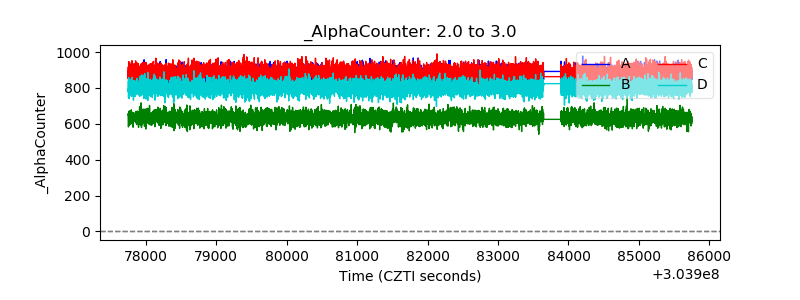

| Alpha Counter |  |
| _CPM_Rate |  |

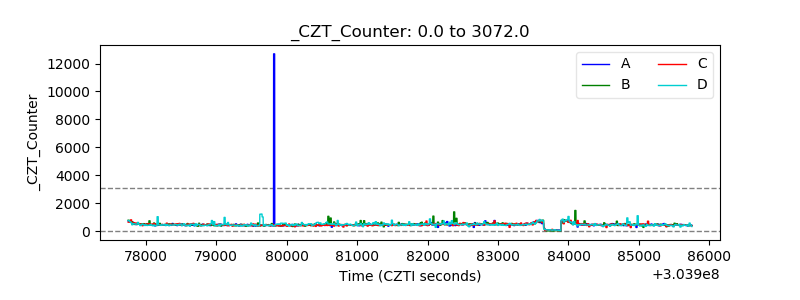

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

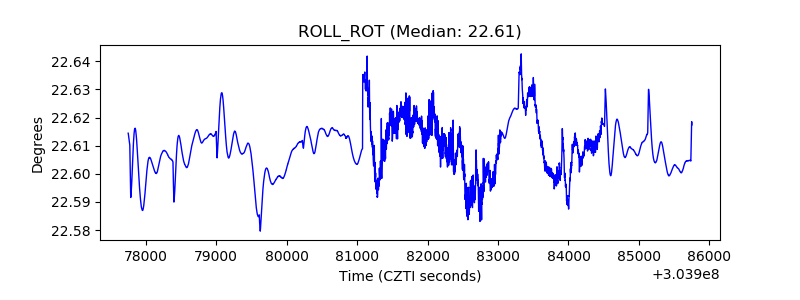

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

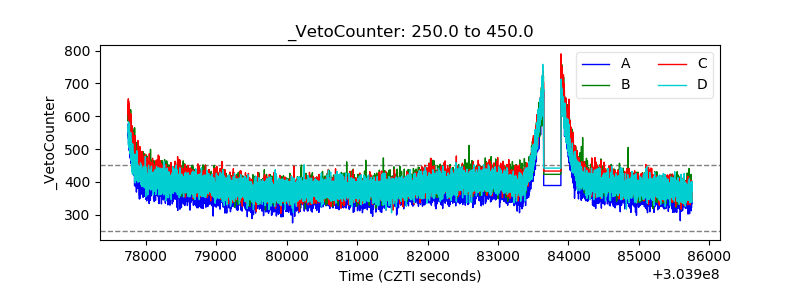

| Veto Counter |  |
