| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_155T04_9000003114_21064cztM0_level2.evt | modeM0/AS1A05_155T04_9000003114_21064cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,157,760 | 98,110,080 |
| Size | 524.7 MB | 93.6 MB |
| Events in quadrant A | 3,737,678 | 622,245 |
| Events in quadrant B | 4,609,320 | 609,471 |
| Events in quadrant C | 3,791,315 | 601,602 |
| Events in quadrant D | 3,989,970 | 591,956 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16230 | 2 |
| B | 0 | 18582 | 2 |
| C | 0 | 16294 | 2 |
| D | 0 | 17067 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7847 | 214 | 2.727157% |
| B | 7848 | 486 | 6.192661% |
| C | 7847 | 251 | 3.198675% |
| D | 7847 | 178 | 2.268383% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9097 | 7849 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9098 | 7850 | 198 | 198 | 2.18% | 2.52% |  |
| C | 9097 | 7849 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9097 | 7849 | 15 | 15 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 11934 | 56.03 | 969 | 946 | 196.1 |
| A | 0 | 226 | 8269 | 37.34 | 969 | 946 | 196.1 |
| A | 3 | 137 | 8092 | 36.44 | 969 | 946 | 196.1 |
| B | 0 | 182 | 412648 | 2252.8 | 955 | 930 | 182.8 |
| B | 7 | 220 | 289326 | 1578.02 | 955 | 930 | 182.8 |
| B | 7 | 205 | 56971 | 306.64 | 955 | 930 | 182.8 |
| C | 14 | 238 | 144494 | 651.04 | 935 | 941 | 220.5 |
| C | 13 | 61 | 6559 | 25.48 | 935 | 941 | 220.5 |
| C | 10 | 91 | 2467 | 6.92 | 935 | 941 | 220.5 |
| D | 1 | 52 | 104981 | 457.56 | 946 | 920 | 227.4 |
| D | 12 | 233 | 58529 | 253.31 | 946 | 920 | 227.4 |
| D | 1 | 20 | 57983 | 250.91 | 946 | 920 | 227.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

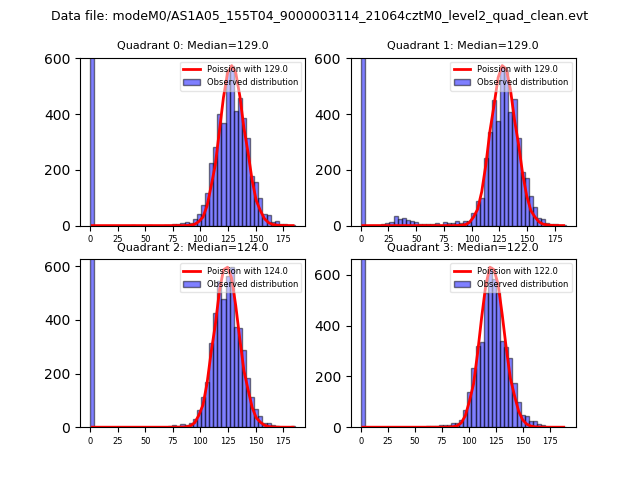

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

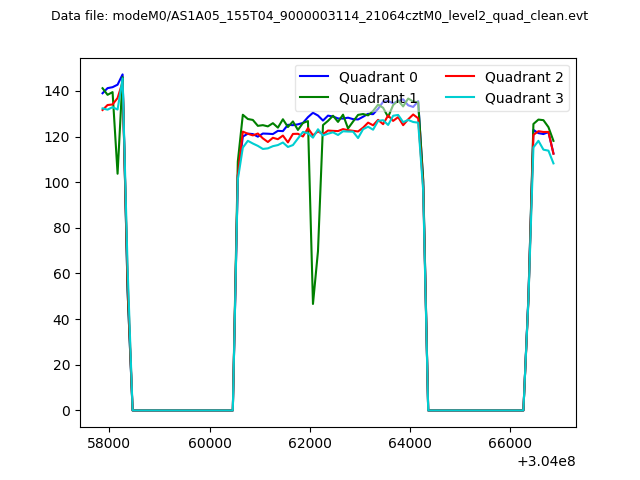

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

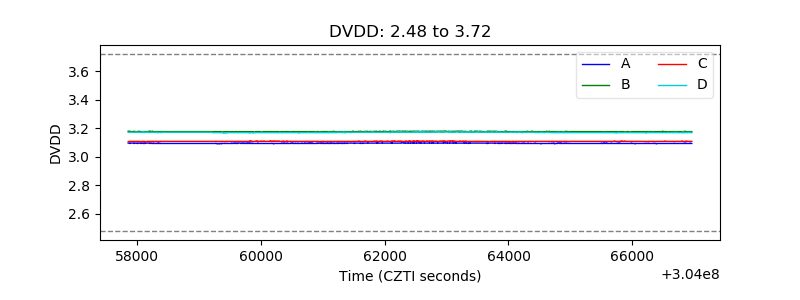

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

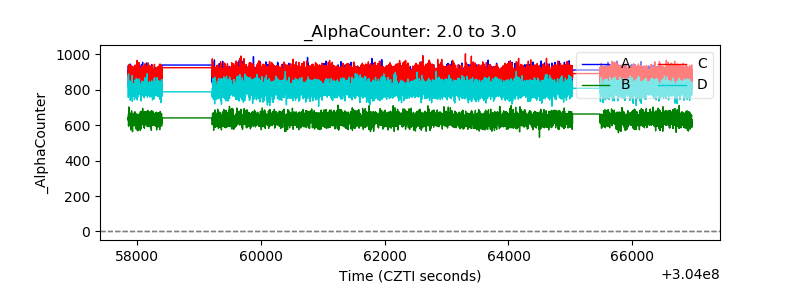

| Alpha Counter |  |

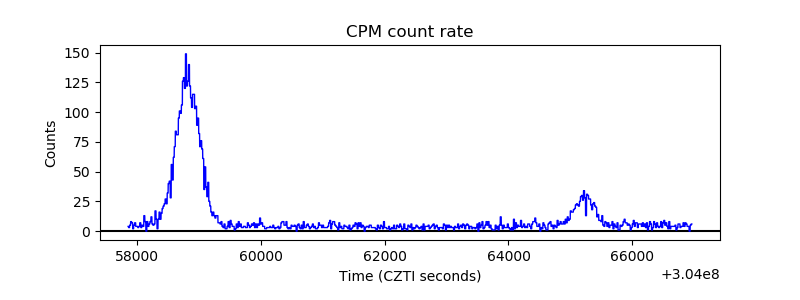

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
