| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_155T04_9000003114_21066cztM0_level2.evt | modeM0/AS1A05_155T04_9000003114_21066cztM0_level2_quad_clean.evt |
| Size (bytes) | 543,404,160 | 101,998,080 |
| Size | 518.2 MB | 97.3 MB |
| Events in quadrant A | 3,412,307 | 660,273 |
| Events in quadrant B | 3,901,641 | 663,117 |
| Events in quadrant C | 3,432,324 | 638,816 |
| Events in quadrant D | 5,212,987 | 616,333 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14993 | 1 |
| B | 0 | 16185 | 1 |
| C | 0 | 15004 | 2 |
| D | 0 | 20469 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7335 | 109 | 1.486026% |
| B | 7335 | 194 | 2.644853% |
| C | 7334 | 115 | 1.568039% |
| D | 7334 | 376 | 5.126807% |

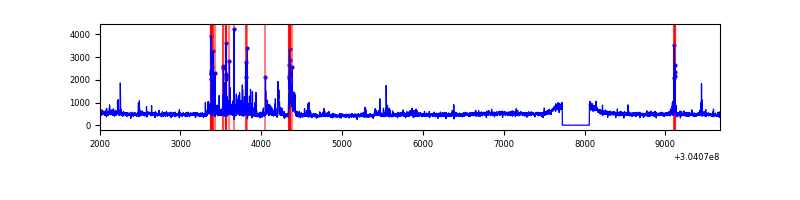

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7670 | 7336 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7670 | 7336 | 39 | 39 | 0.51% | 0.53% |  |
| C | 7669 | 7335 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7669 | 7335 | 251 | 251 | 3.27% | 3.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 10219 | 52.45 | 882 | 864 | 178.4 |
| A | 0 | 226 | 7672 | 38.17 | 882 | 864 | 178.4 |
| A | 3 | 137 | 7358 | 36.41 | 882 | 864 | 178.4 |
| B | 7 | 220 | 222070 | 1312.39 | 874 | 850 | 168.6 |
| B | 0 | 197 | 121605 | 716.38 | 874 | 850 | 168.6 |
| B | 0 | 182 | 49018 | 285.76 | 874 | 850 | 168.6 |
| C | 14 | 238 | 130853 | 654.36 | 845 | 849 | 198.7 |
| C | 9 | 54 | 7242 | 32.18 | 845 | 849 | 198.7 |
| C | 13 | 61 | 5877 | 25.31 | 845 | 849 | 198.7 |
| D | 9 | 1 | 531546 | 2546.49 | 851 | 826 | 208.4 |
| D | 1 | 239 | 506716 | 2427.35 | 851 | 826 | 208.4 |
| D | 7 | 38 | 257444 | 1231.3 | 851 | 826 | 208.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

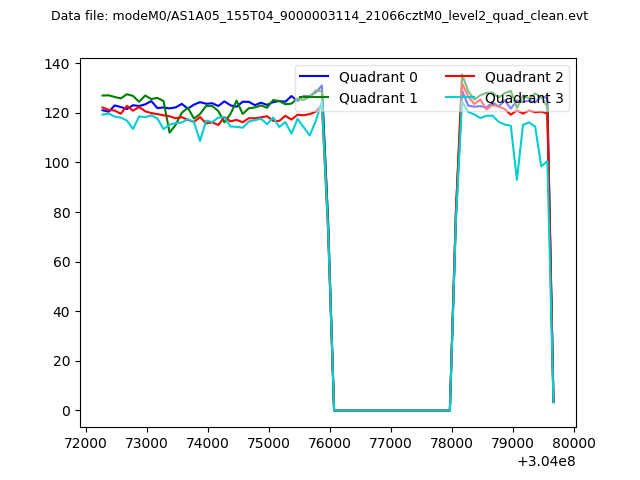

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

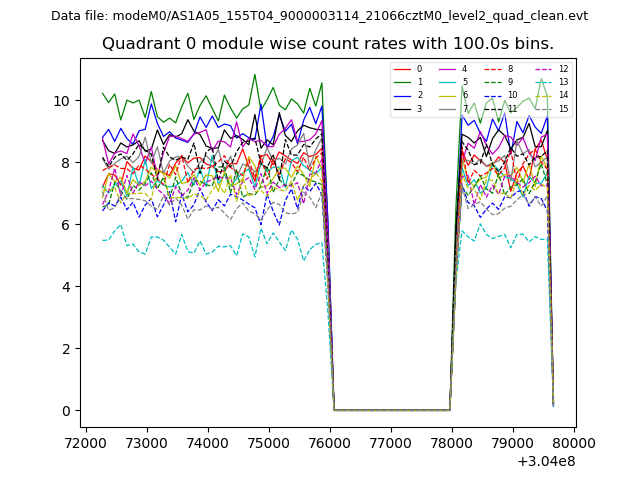

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

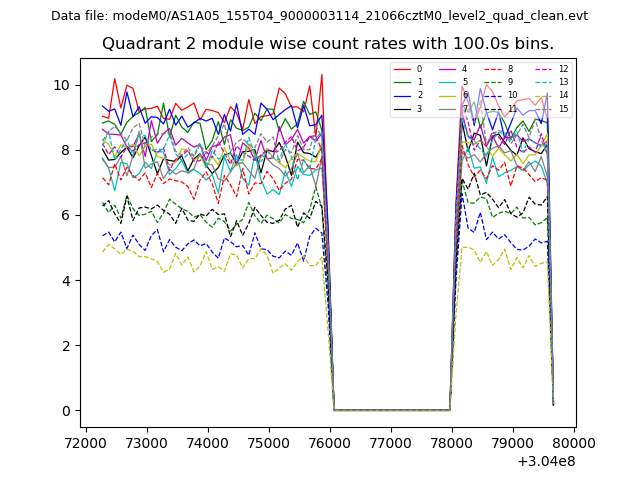

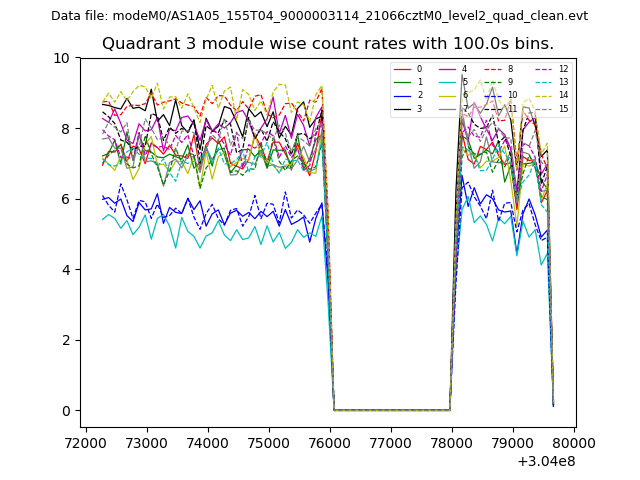

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

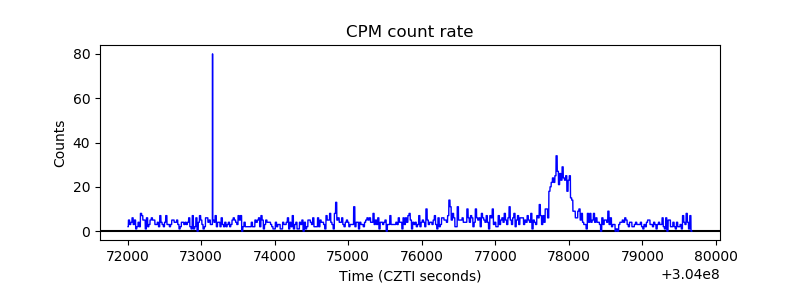

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

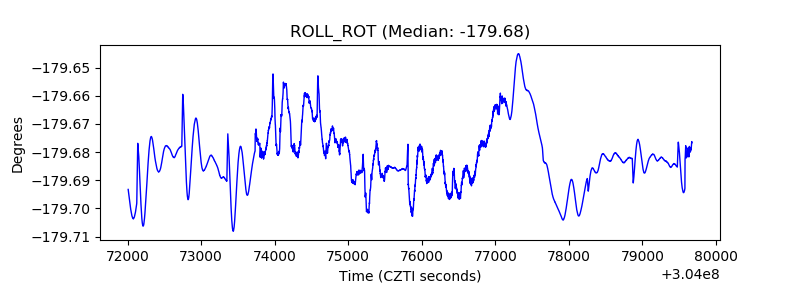

| _ROLL_ROT |  |
| _Roll_DEC |  |

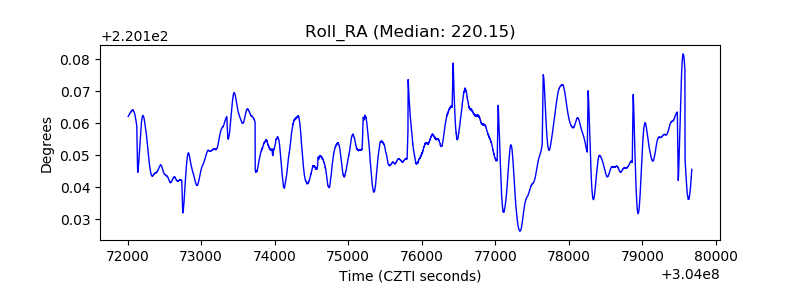

| _Roll_RA |  |
| Veto Counter |  |
