| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_155T04_9000003114_21070cztM0_level2.evt | modeM0/AS1A05_155T04_9000003114_21070cztM0_level2_quad_clean.evt |
| Size (bytes) | 137,090,880 | 32,086,080 |
| Size | 130.7 MB | 30.6 MB |
| Events in quadrant A | 804,186 | 219,872 |
| Events in quadrant B | 1,017,372 | 221,290 |
| Events in quadrant C | 800,800 | 212,488 |
| Events in quadrant D | 1,416,705 | 198,125 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3378 | 1 |
| B | 0 | 4181 | 1 |
| C | 0 | 3357 | 1 |
| D | 0 | 5246 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1622 | 5 | 0.308261% |
| B | 1622 | 23 | 1.418002% |
| C | 1622 | 13 | 0.801480% |
| D | 1622 | 167 | 10.295931% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1622 | 1622 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1622 | 1622 | 10 | 10 | 0.62% | 0.62% |  |
| C | 1622 | 1622 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1622 | 1622 | 119 | 119 | 7.34% | 7.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 96 | 12253 | 279.75 | 204 | 200 | 43.1 |
| A | 13 | 254 | 2423 | 51.6 | 204 | 200 | 43.1 |
| A | 0 | 226 | 1729 | 35.49 | 204 | 200 | 43.1 |
| B | 0 | 182 | 128570 | 3177.42 | 203 | 199 | 40.4 |
| B | 3 | 64 | 36709 | 903.69 | 203 | 199 | 40.4 |
| B | 0 | 197 | 21063 | 516.42 | 203 | 199 | 40.4 |
| C | 14 | 238 | 30812 | 643.09 | 197 | 197 | 47.6 |
| C | 13 | 61 | 1433 | 25.96 | 197 | 197 | 47.6 |
| C | 7 | 254 | 1169 | 20.42 | 197 | 197 | 47.6 |
| D | 7 | 238 | 260105 | 5410.92 | 193 | 187 | 48.0 |
| D | 13 | 153 | 149576 | 3109.95 | 193 | 187 | 48.0 |
| D | 1 | 239 | 120041 | 2495.1 | 193 | 187 | 48.0 |

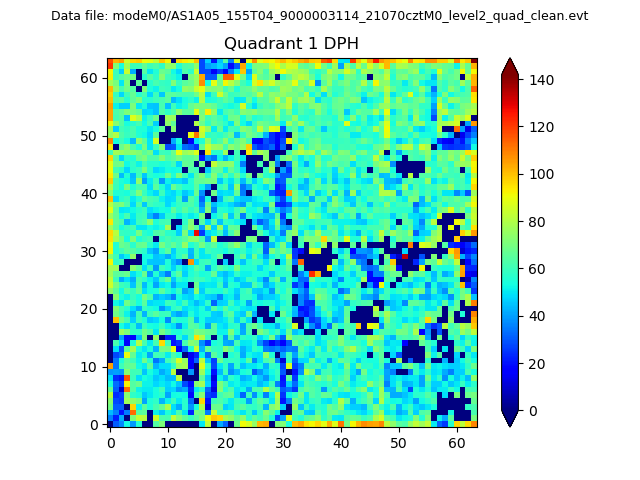

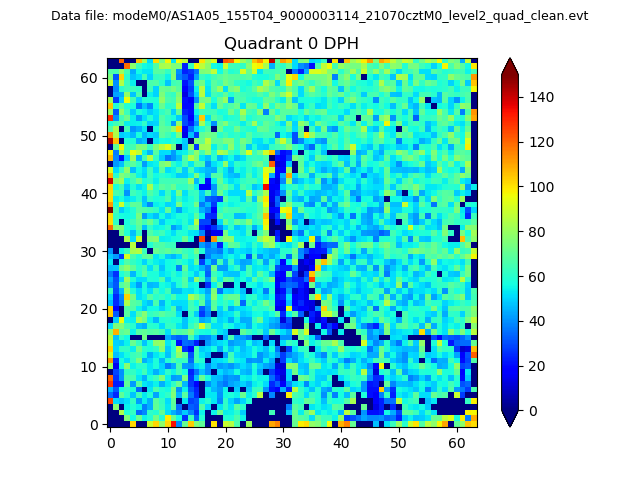

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

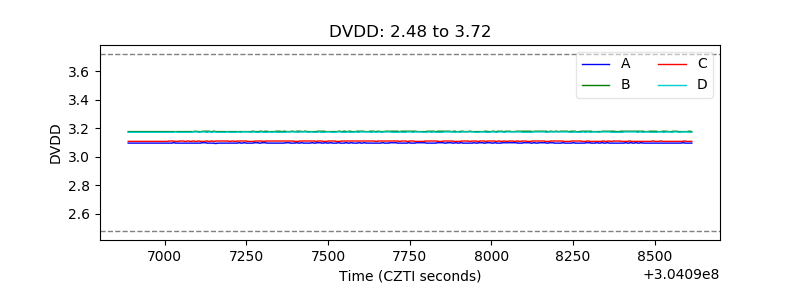

| D_VDD |  |

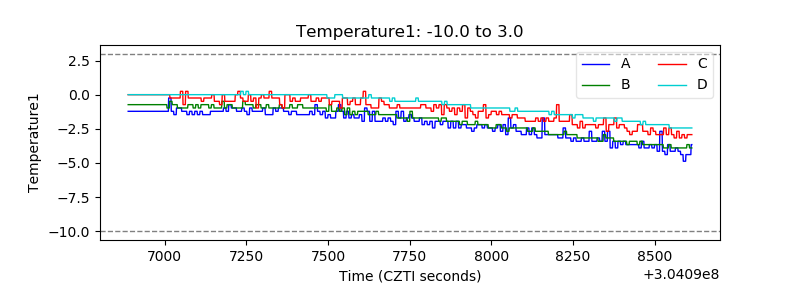

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

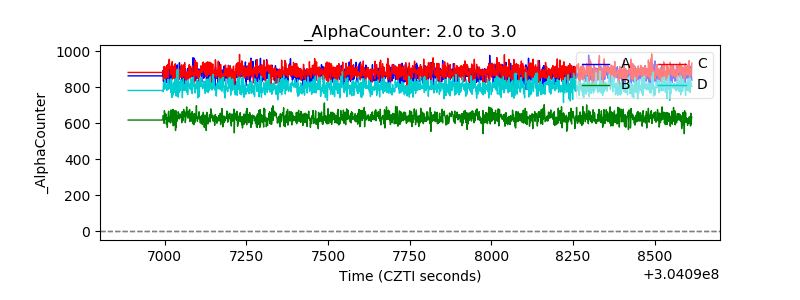

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

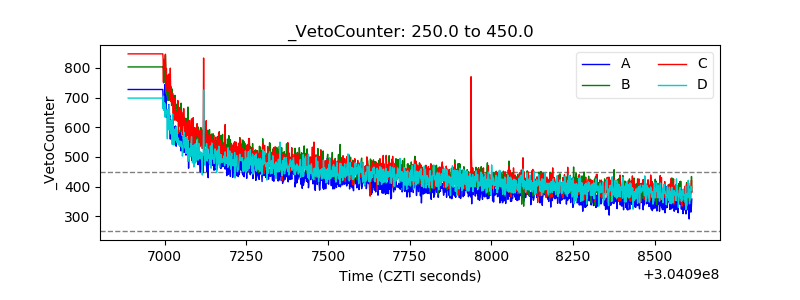

| Veto Counter |  |
