| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003118_21086cztM0_level2.evt | modeM0/AS1A05_163T01_9000003118_21086cztM0_level2_quad_clean.evt |
| Size (bytes) | 538,560,000 | 88,588,800 |
| Size | 513.6 MB | 84.5 MB |
| Events in quadrant A | 3,125,970 | 583,276 |
| Events in quadrant B | 3,529,388 | 581,673 |
| Events in quadrant C | 3,074,220 | 562,738 |
| Events in quadrant D | 6,151,605 | 513,221 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13540 | 1 |
| B | 0 | 14618 | 1 |
| C | 0 | 13201 | 1 |
| D | 0 | 22626 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6335 | 57 | 0.899763% |
| B | 6336 | 137 | 2.162247% |
| C | 6336 | 78 | 1.231061% |
| D | 6336 | 859 | 13.557449% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7440 | 6336 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7441 | 6337 | 48 | 48 | 0.65% | 0.76% |  |
| C | 7441 | 6337 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7441 | 6337 | 733 | 733 | 9.85% | 11.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 78337 | 493.19 | 784 | 768 | 157.3 |
| A | 10 | 229 | 15136 | 91.35 | 784 | 768 | 157.3 |
| A | 13 | 254 | 9690 | 56.72 | 784 | 768 | 157.3 |
| B | 7 | 220 | 263571 | 1776.27 | 779 | 759 | 148.0 |
| B | 3 | 64 | 72523 | 485.03 | 779 | 759 | 148.0 |
| B | 0 | 182 | 48895 | 325.34 | 779 | 759 | 148.0 |
| C | 14 | 238 | 119275 | 675.07 | 756 | 763 | 175.6 |
| C | 13 | 61 | 5223 | 25.41 | 756 | 763 | 175.6 |
| C | 9 | 54 | 4830 | 23.17 | 756 | 763 | 175.6 |
| D | 1 | 52 | 1271122 | 7113.88 | 731 | 709 | 178.6 |
| D | 7 | 238 | 829740 | 4642.29 | 731 | 709 | 178.6 |
| D | 1 | 239 | 793629 | 4440.08 | 731 | 709 | 178.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

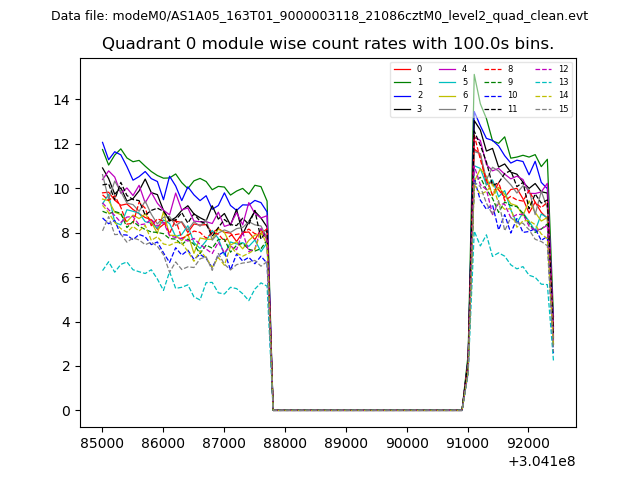

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

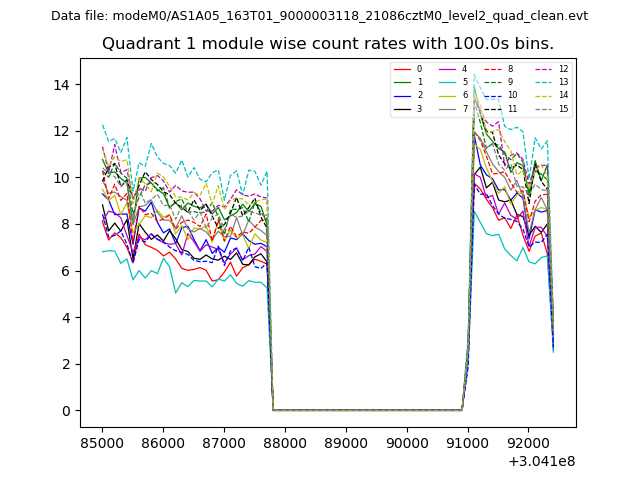

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

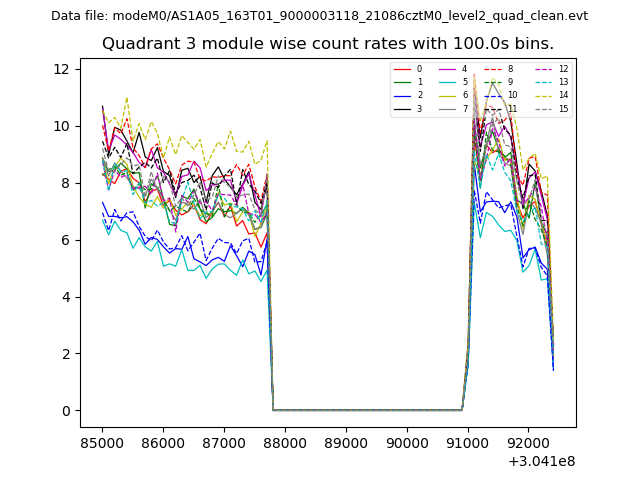

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

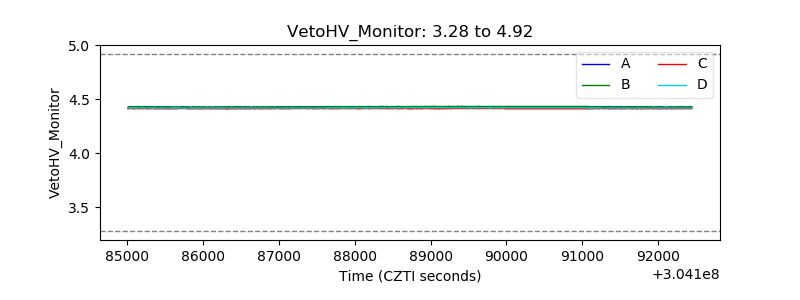

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

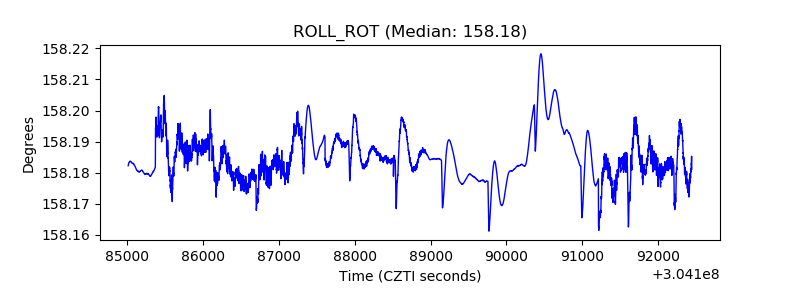

| _ROLL_ROT |  |

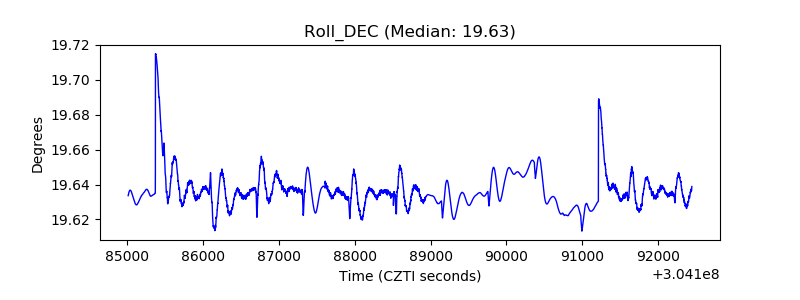

| _Roll_DEC |  |
| _Roll_RA |  |

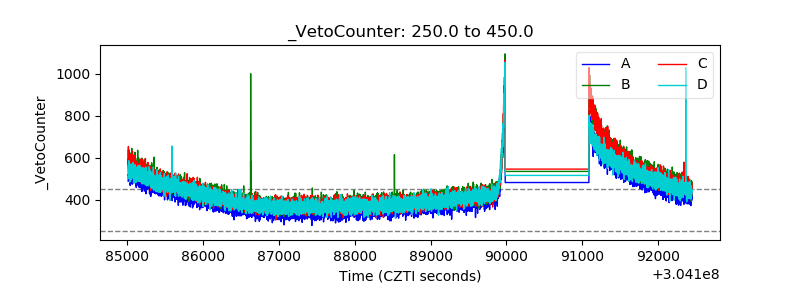

| Veto Counter |  |
