| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003118_21087cztM0_level2.evt | modeM0/AS1A05_163T01_9000003118_21087cztM0_level2_quad_clean.evt |
| Size (bytes) | 583,649,280 | 94,276,800 |
| Size | 556.6 MB | 89.9 MB |
| Events in quadrant A | 3,223,469 | 629,960 |
| Events in quadrant B | 3,458,403 | 640,748 |
| Events in quadrant C | 3,211,837 | 607,251 |
| Events in quadrant D | 7,349,127 | 530,759 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13804 | 2 |
| B | 0 | 14374 | 2 |
| C | 0 | 13591 | 2 |
| D | 0 | 26224 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6390 | 41 | 0.641628% |
| B | 6390 | 50 | 0.782473% |
| C | 6390 | 52 | 0.813772% |
| D | 6390 | 1359 | 21.267606% |

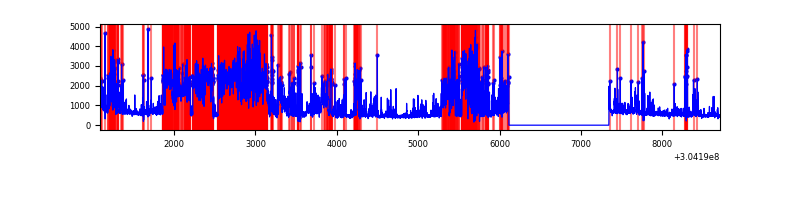

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7620 | 6391 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7620 | 6391 | 16 | 16 | 0.21% | 0.25% |  |
| C | 7620 | 6391 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7620 | 6391 | 1212 | 1212 | 15.91% | 18.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 34 | 69069 | 418.23 | 816 | 802 | 163.2 |
| A | 13 | 254 | 10171 | 57.4 | 816 | 802 | 163.2 |
| A | 0 | 226 | 7042 | 38.23 | 816 | 802 | 163.2 |
| B | 0 | 219 | 93451 | 608.5 | 818 | 799 | 152.3 |
| B | 3 | 64 | 76998 | 500.45 | 818 | 799 | 152.3 |
| B | 0 | 182 | 29006 | 185.25 | 818 | 799 | 152.3 |
| C | 14 | 238 | 124330 | 674.96 | 787 | 795 | 183.0 |
| C | 9 | 54 | 8752 | 43.47 | 787 | 795 | 183.0 |
| C | 3 | 233 | 5742 | 27.03 | 787 | 795 | 183.0 |
| D | 7 | 238 | 2354916 | 13208.62 | 736 | 717 | 178.2 |
| D | 1 | 52 | 868582 | 4869.3 | 736 | 717 | 178.2 |
| D | 1 | 239 | 763091 | 4277.43 | 736 | 717 | 178.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

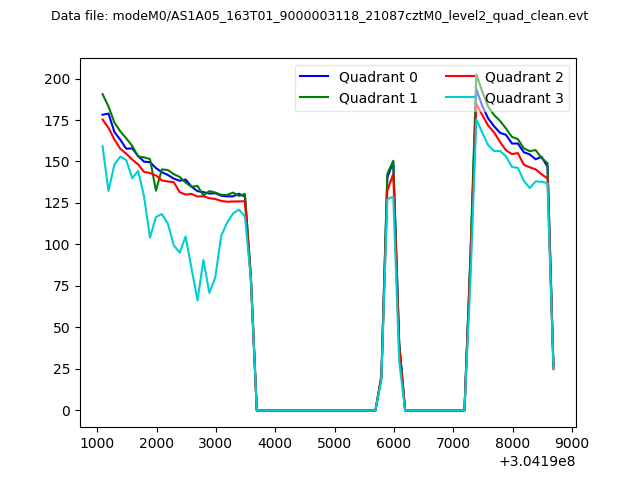

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

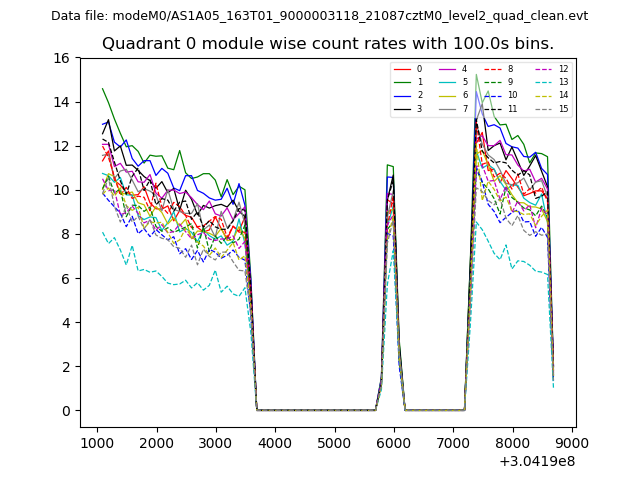

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

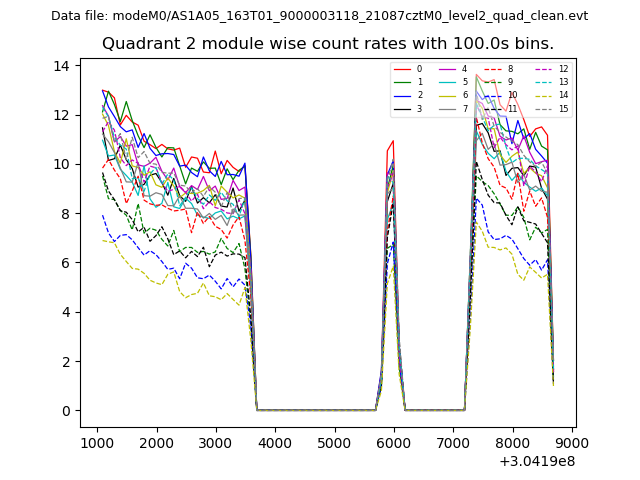

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

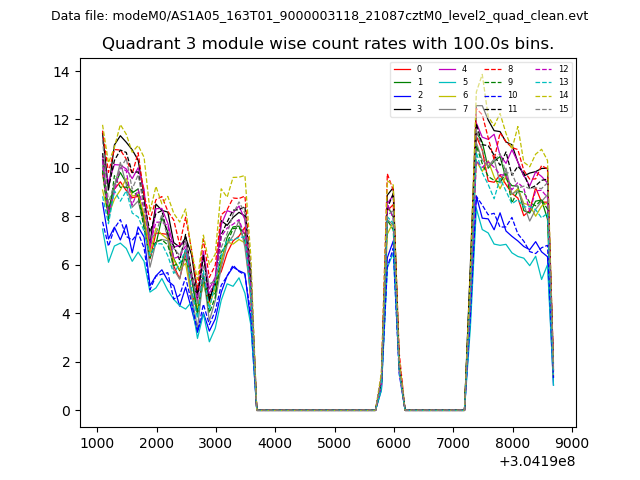

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

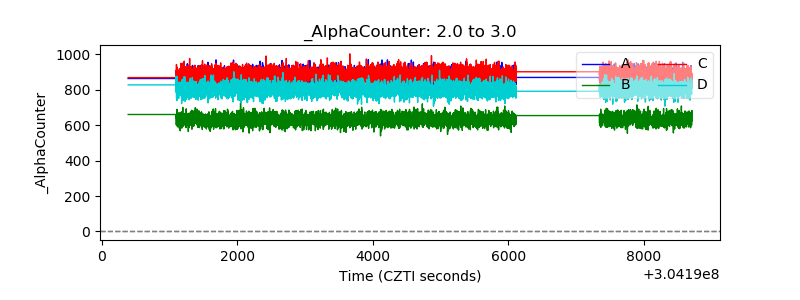

| Alpha Counter |  |

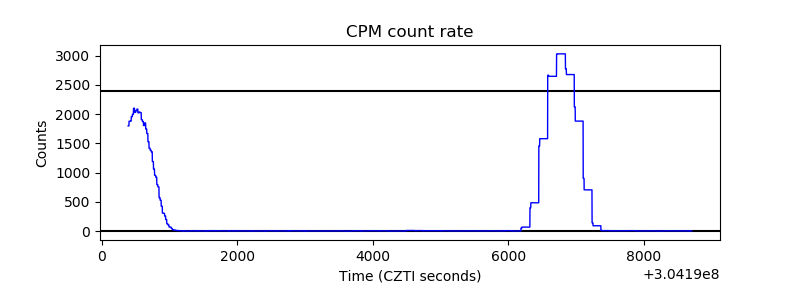

| _CPM_Rate |  |

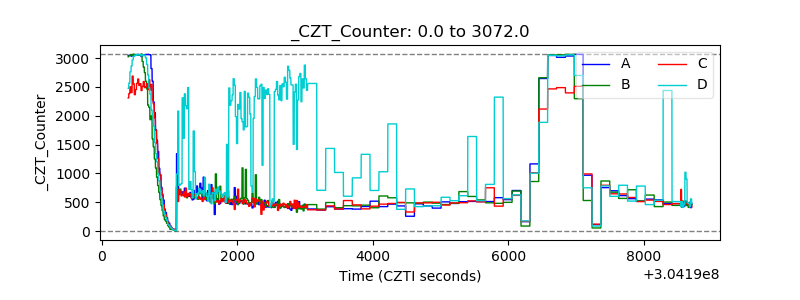

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
