| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A05_163T01_9000003118_21116cztM0_level2.evt | modeM0/AS1A05_163T01_9000003118_21116cztM0_level2_quad_clean.evt |
| Size (bytes) | 124,070,400 | 21,945,600 |
| Size | 118.3 MB | 20.9 MB |
| Events in quadrant A | 581,506 | 165,149 |
| Events in quadrant B | 1,680,479 | 122,945 |
| Events in quadrant C | 579,131 | 156,877 |
| Events in quadrant D | 845,942 | 142,312 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2364 | 1 |
| B | 0 | 5664 | 1 |
| C | 0 | 2351 | 1 |
| D | 0 | 3290 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 993 | 8 | 0.805639% |
| B | 993 | 565 | 56.898288% |
| C | 993 | 20 | 2.014099% |
| D | 993 | 94 | 9.466264% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 993 | 993 | 0 | 0 | 0.00% | 0.00% |  |

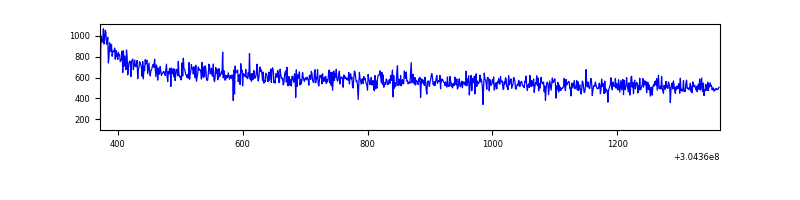

| B | 992 | 992 | 310 | 310 | 31.25% | 31.25% |  |
| C | 993 | 993 | 0 | 0 | 0.00% | 0.00% |  |
| D | 993 | 993 | 43 | 43 | 4.33% | 4.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 1328 | 36.93 | 150 | 147 | 32.0 |
| A | 13 | 254 | 1190 | 32.61 | 150 | 147 | 32.0 |
| A | 3 | 137 | 1141 | 31.08 | 150 | 147 | 32.0 |
| B | 0 | 182 | 1116798 | 47438.48 | 114 | 111 | 23.5 |
| B | 7 | 220 | 78097 | 3312.96 | 114 | 111 | 23.5 |
| B | 0 | 190 | 30107 | 1274.27 | 114 | 111 | 23.5 |
| C | 14 | 238 | 22775 | 654.04 | 142 | 143 | 34.6 |
| C | 13 | 61 | 1072 | 26.85 | 142 | 143 | 34.6 |
| C | 14 | 111 | 373 | 6.65 | 142 | 143 | 34.6 |
| D | 5 | 222 | 177307 | 5051.56 | 138 | 134 | 35.1 |
| D | 1 | 20 | 96127 | 2736.96 | 138 | 134 | 35.1 |
| D | 13 | 153 | 16486 | 466.23 | 138 | 134 | 35.1 |

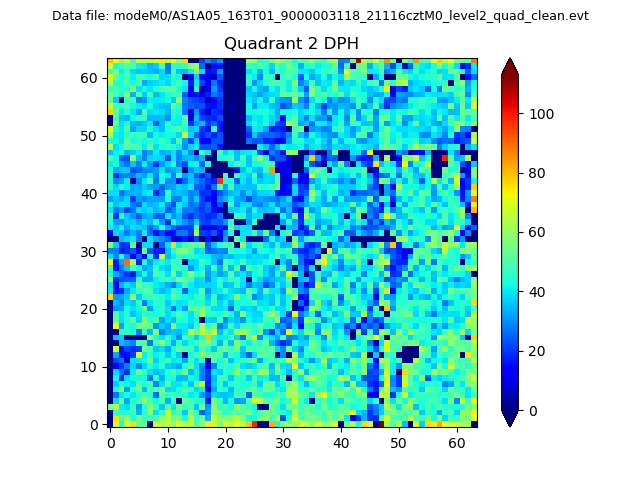

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

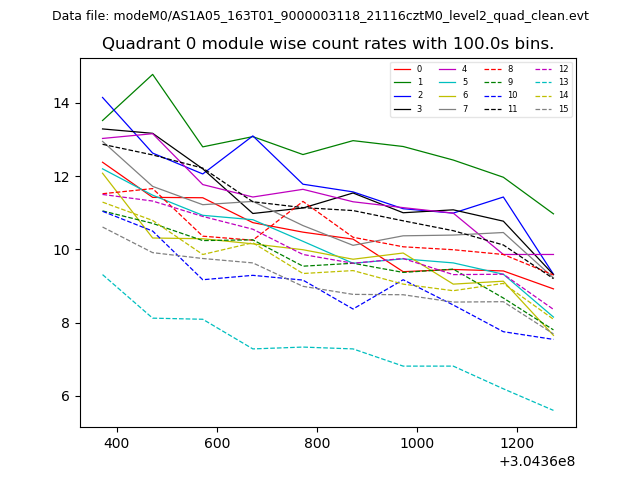

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

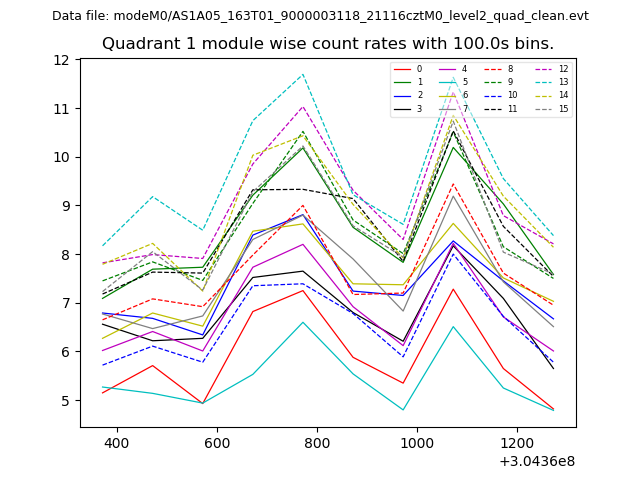

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

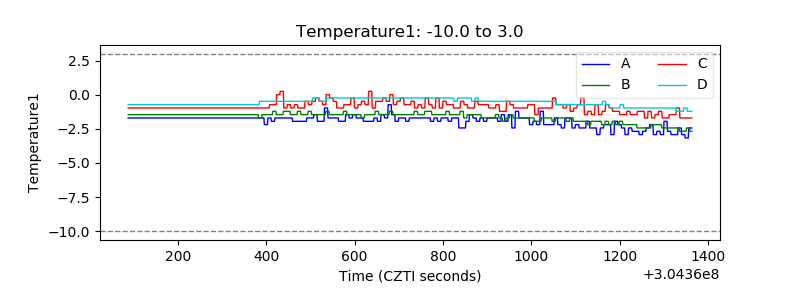

| Temperature 1 |  |

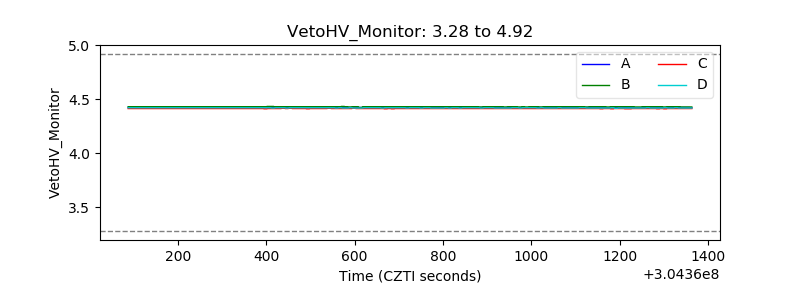

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

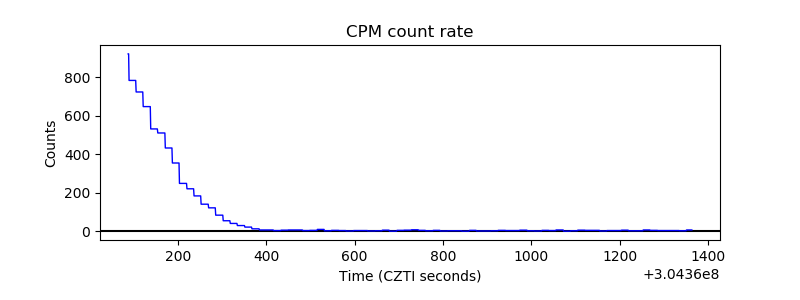

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

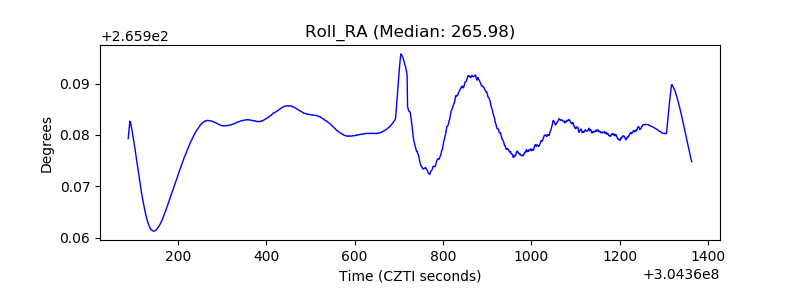

| _Roll_RA |  |
| Veto Counter |  |
