| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_009T03_9000003122_21134cztM0_level2.evt | modeM0/AS1A06_009T03_9000003122_21134cztM0_level2_quad_clean.evt |
| Size (bytes) | 173,753,280 | 41,659,200 |
| Size | 165.7 MB | 39.7 MB |
| Events in quadrant A | 1,186,287 | 282,133 |
| Events in quadrant B | 1,230,520 | 291,867 |
| Events in quadrant C | 1,185,939 | 272,841 |
| Events in quadrant D | 1,504,564 | 252,104 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5269 | 384 |
| B | 0 | 5376 | 380 |
| C | 0 | 5223 | 369 |
| D | 0 | 6405 | 445 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 2 |
| B | 0 | 47 | 5 |
| C | 0 | 47 | 3 |
| D | 0 | 47 | 5 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2265 | 4 | 0.176600% |
| B | 2263 | 5 | 0.220946% |
| C | 2251 | 29 | 1.288316% |
| D | 2242 | 61 | 2.720785% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7205 | 2306 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7204 | 2308 | 1 | 1 | 0.01% | 0.04% |  |
| C | 7208 | 2295 | 13 | 13 | 0.18% | 0.57% |  |
| D | 7206 | 2292 | 47 | 47 | 0.65% | 2.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 192 | 63144 | 1054.6 | 291 | 286 | 59.6 |
| A | 13 | 254 | 2992 | 45.4 | 291 | 286 | 59.6 |
| A | 0 | 226 | 2559 | 38.14 | 291 | 286 | 59.6 |
| B | 0 | 219 | 32035 | 556.97 | 295 | 289 | 57.0 |
| B | 0 | 189 | 11672 | 199.71 | 295 | 289 | 57.0 |
| B | 6 | 36 | 8609 | 145.97 | 295 | 289 | 57.0 |
| C | 14 | 238 | 43929 | 673.52 | 277 | 280 | 64.8 |
| C | 0 | 10 | 43144 | 661.41 | 277 | 280 | 64.8 |
| C | 3 | 233 | 18110 | 275.13 | 277 | 280 | 64.8 |
| D | 1 | 52 | 164385 | 2494.06 | 269 | 262 | 65.8 |
| D | 5 | 222 | 87346 | 1323.35 | 269 | 262 | 65.8 |
| D | 13 | 153 | 65670 | 993.96 | 269 | 262 | 65.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

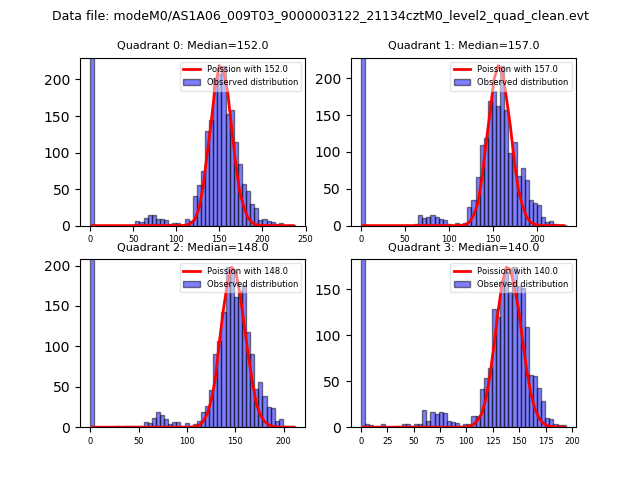

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

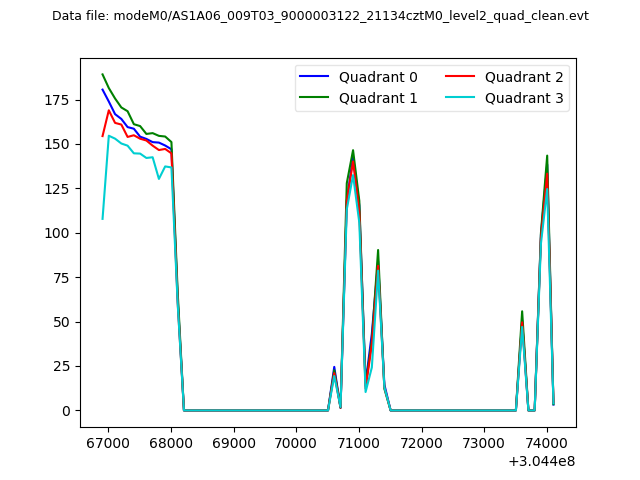

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

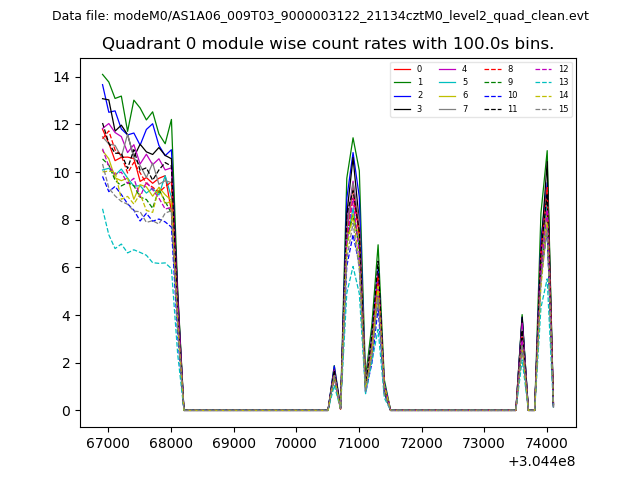

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

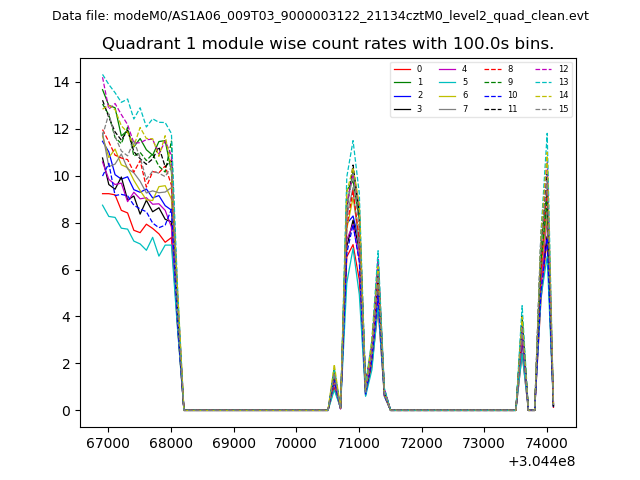

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

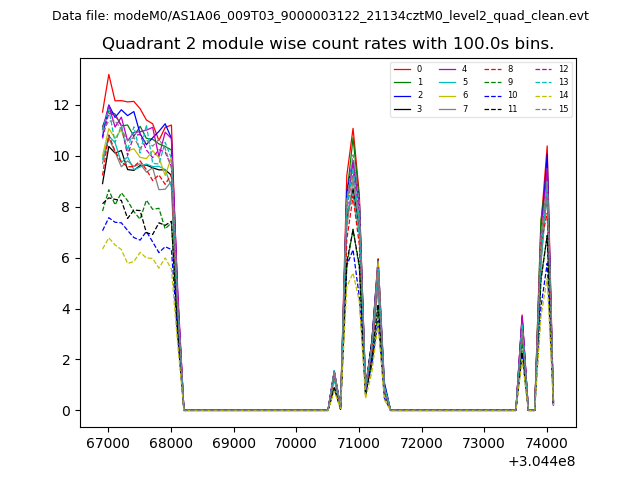

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

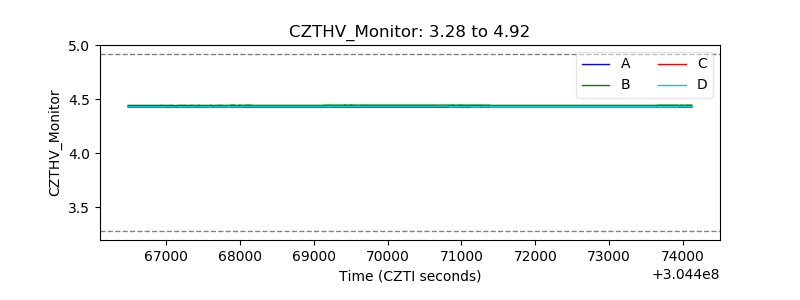

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

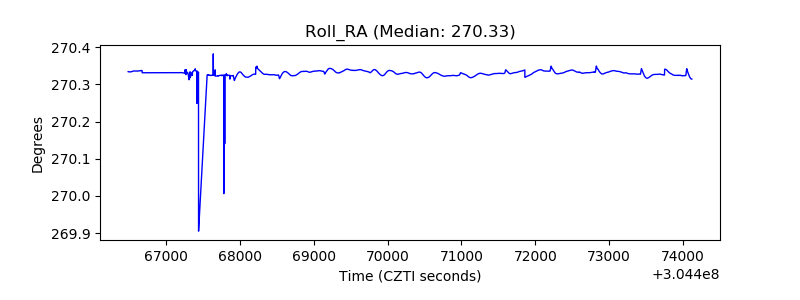

| _Roll_RA |  |

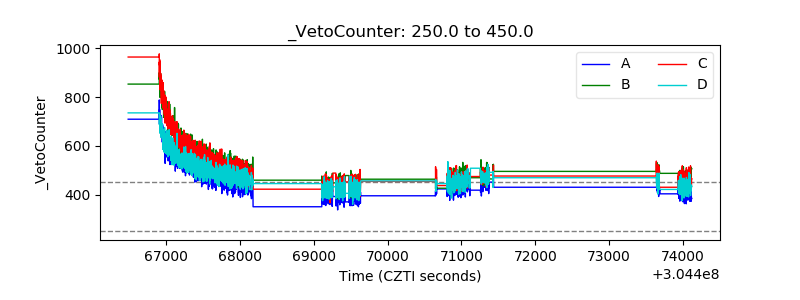

| Veto Counter |  |
