| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_136T01_9000003124_21148cztM0_level2.evt | modeM0/AS1T03_136T01_9000003124_21148cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,478,400 | 93,121,920 |
| Size | 484.9 MB | 88.8 MB |
| Events in quadrant A | 3,082,946 | 613,497 |
| Events in quadrant B | 3,272,607 | 636,703 |
| Events in quadrant C | 3,211,082 | 601,471 |
| Events in quadrant D | 5,412,351 | 535,593 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13022 | 2 |
| B | 0 | 13450 | 2 |
| C | 0 | 13273 | 2 |
| D | 0 | 20169 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6191 | 20 | 0.323050% |
| B | 6191 | 47 | 0.759167% |
| C | 6191 | 97 | 1.566791% |
| D | 6190 | 472 | 7.625202% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7571 | 6192 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7571 | 6192 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7571 | 6192 | 22 | 22 | 0.29% | 0.36% |  |
| D | 7570 | 6191 | 450 | 450 | 5.94% | 7.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 9786 | 56.19 | 796 | 782 | 160.2 |
| A | 0 | 226 | 7122 | 39.57 | 796 | 782 | 160.2 |
| A | 15 | 192 | 6618 | 36.42 | 796 | 782 | 160.2 |
| B | 0 | 230 | 40370 | 264.67 | 806 | 790 | 149.5 |
| B | 0 | 189 | 24300 | 157.21 | 806 | 790 | 149.5 |
| B | 0 | 245 | 21537 | 138.73 | 806 | 790 | 149.5 |
| C | 14 | 238 | 123592 | 691.86 | 762 | 769 | 177.5 |
| C | 0 | 10 | 82491 | 460.34 | 762 | 769 | 177.5 |
| C | 3 | 233 | 18163 | 97.98 | 762 | 769 | 177.5 |
| D | 7 | 238 | 1141831 | 6404.24 | 736 | 718 | 178.2 |
| D | 1 | 52 | 446875 | 2503.95 | 736 | 718 | 178.2 |
| D | 5 | 222 | 370686 | 2076.36 | 736 | 718 | 178.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

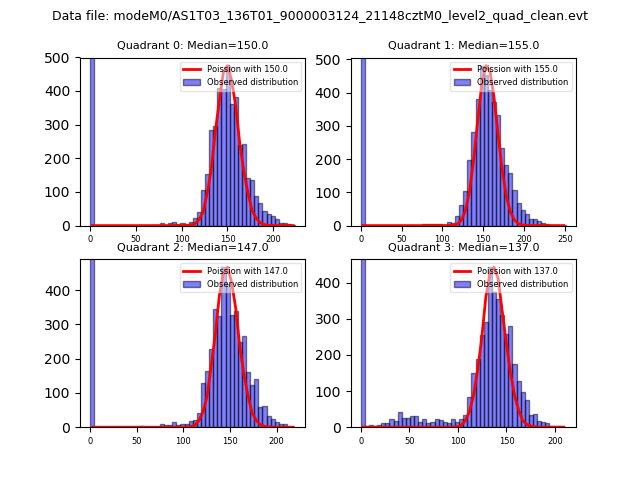

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
