| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T03_136T01_9000003124_21150cztM0_level2.evt | modeM0/AS1T03_136T01_9000003124_21150cztM0_level2_quad_clean.evt |
| Size (bytes) | 983,747,520 | 119,761,920 |
| Size | 938.2 MB | 114.2 MB |
| Events in quadrant A | 5,162,707 | 771,709 |
| Events in quadrant B | 5,479,575 | 789,233 |
| Events in quadrant C | 5,256,656 | 763,123 |
| Events in quadrant D | 13,154,345 | 544,424 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22413 | 2 |
| B | 0 | 23110 | 2 |
| C | 0 | 22480 | 2 |
| D | 0 | 46391 | 5 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 224 | 0 |
| B | 0 | 224 | 0 |
| C | 0 | 224 | 0 |
| D | 0 | 224 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10936 | 25 | 0.228603% |
| B | 10937 | 62 | 0.566883% |
| C | 10937 | 76 | 0.694889% |
| D | 10936 | 2970 | 27.158010% |

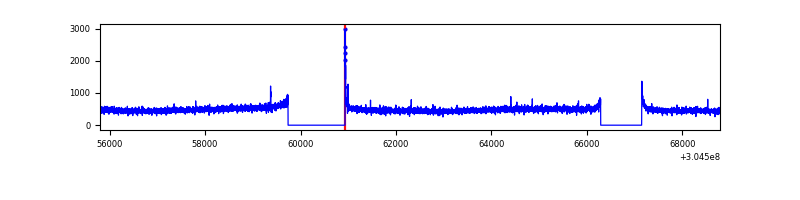

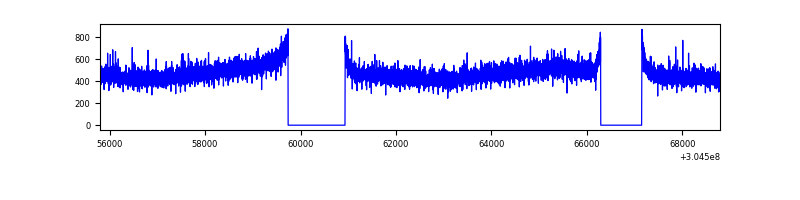

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12991 | 10938 | 0 | 0 | 0.00% | 0.00% |  |
| B | 12992 | 10939 | 7 | 7 | 0.05% | 0.06% |  |
| C | 12992 | 10939 | 4 | 4 | 0.03% | 0.04% |  |
| D | 12990 | 10936 | 2878 | 2878 | 22.16% | 26.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 254 | 14501 | 49.79 | 1330 | 1304 | 265.1 |
| A | 15 | 192 | 12964 | 43.99 | 1330 | 1304 | 265.1 |
| A | 8 | 205 | 11956 | 40.19 | 1330 | 1304 | 265.1 |
| B | 0 | 230 | 63772 | 249.47 | 1340 | 1308 | 250.4 |
| B | 0 | 189 | 43470 | 168.39 | 1340 | 1308 | 250.4 |
| B | 0 | 190 | 36221 | 139.44 | 1340 | 1308 | 250.4 |
| C | 14 | 238 | 203538 | 675.81 | 1286 | 1295 | 299.3 |
| C | 0 | 10 | 32759 | 105.14 | 1286 | 1295 | 299.3 |
| C | 3 | 233 | 12253 | 36.62 | 1286 | 1295 | 299.3 |
| D | 1 | 239 | 7578622 | 29588.59 | 1049 | 1019 | 256.1 |
| D | 5 | 222 | 782676 | 3052.17 | 1049 | 1019 | 256.1 |
| D | 1 | 52 | 284348 | 1106.33 | 1049 | 1019 | 256.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

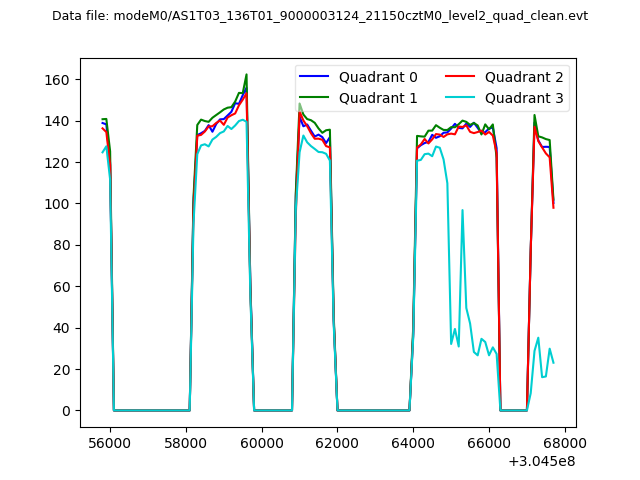

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

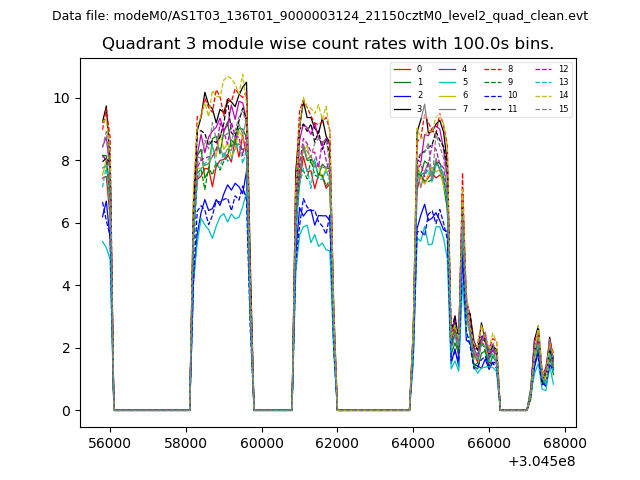

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

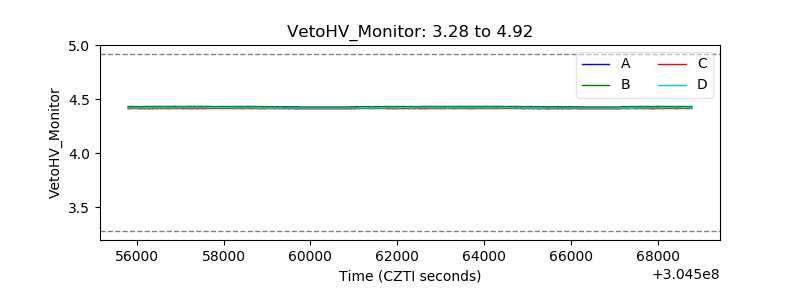

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

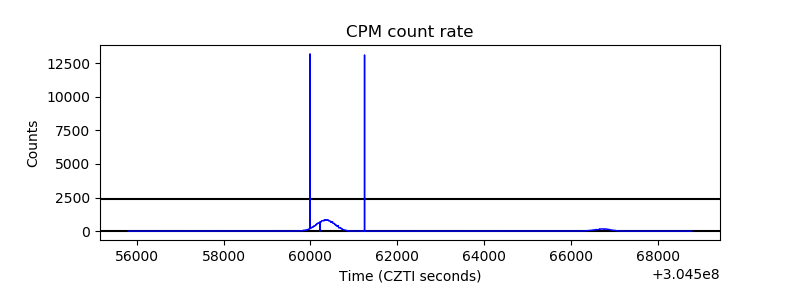

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

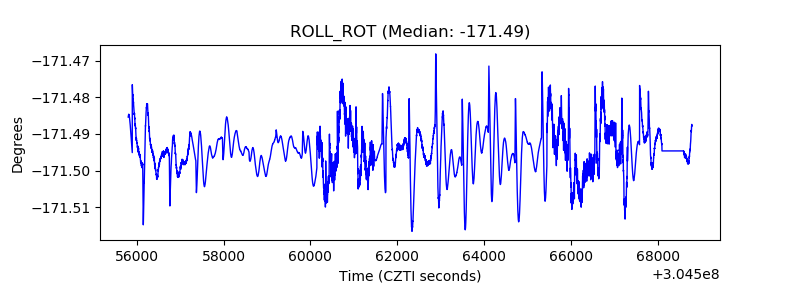

| _ROLL_ROT |  |
| _Roll_DEC |  |

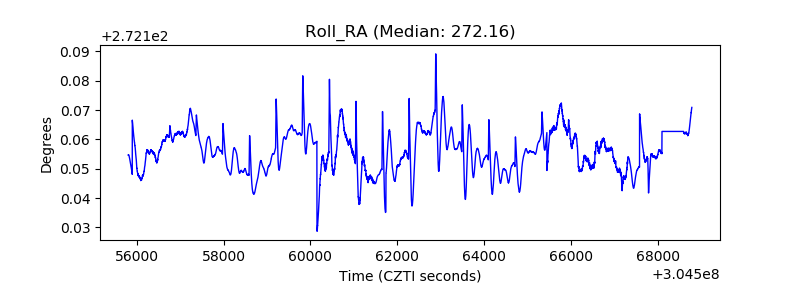

| _Roll_RA |  |
| Veto Counter |  |
